Brunswick StringPin - String Pinsetter Controller to Pin Motion Interfaces - Rear Mount Cable (P;N 55-143012-XXX); Emergency Stop Box and Cable - Rear Mount (P;N 55-143013-XXX); Ball Accelerator Overload Cable - Rear Mount (P;N 55-143014-XXX)

7-2 Section7:Cables
2
4
8
9
1
3
7
12
5
11
10
6
PIN 1 SW
PIN 2 SW
PIN 3 SW
PIN 4 SW
PIN 5 SW
PIN 7 SW
PIN 8 SW
PIN 9 SW
PIN 10 SW
GROUND
GROUND
PIN 6 SW
BLK
BRN
RED
ORN(PINK)
YLW
BLUE
VLT
GRY
WHT
WHT/BRN(RED-BLUE)
WHT/BLK
GRN
2
4
8
9
1
3
7
12
5
11
10
6
2
4
8
16
9
1
3
7
15
12
5
11
10
14
13
6
WHT/RED
WHT/ORN(BRN/GRN)
WHT/YLW
WHT/GRN
WHT/BLUE
WHT/GRY
WHT/BLK/BRW(GRY/BRN)
WHT/BLK/RED(WHT/PINK)
WHT/BLK/GRN(BRN/RED)
WHT/BLK/BLUE(GRY/PINK)
WHT/BLK/VLT(BRN/BLK)
WHT/BLK/YLW(BRN/BLUE)
WHT/VLT(YLW/BRN)
2
4
8
16
9
1
3
7
15
12
5
11
10
14
13
6
PIN 1 SOLENOID
PIN 2 SOLENOID
PIN 3 SOLENOID
PIN 4 SOLENOID
PIN 5 SOLENOID
PIN 7 SOLENOID
PIN 8 SOLENOID
PIN 9 SOLENOID
+24VDC (1-3)
+24VDC (4-6)
+24VDC (7-9)
+24VDC (10)
PIN 10 SOLENOID
PIN 6 SOLENOID
WHT/BLK/ORN(PINK/BRN)
BLK
BRN
RED
ORN(PINK)
YLW
BLUE
VLT
GRY
WHT
WHT/BRN(RED-BLUE)
WHT/BLK
GRN
WHT/RED
WHT/ORN(BRN/GRN)
WHT/YLW
WHT/GRN
WHT/BLUE
WHT/GRY
WHT/BLK/BRW(GRY/BRN)
WHT/BLK/RED(WHT/PINK)
WHT/BLK/GRN(BRN/RED)
WHT/BLK/BLUE(GRY/PINK)
WHT/BLK/VLT(BRN/BLK)
WHT/BLK/YLW(BRN/BLUE)
WHT/VLT(YLW/BRN)
WHT/BLK/ORN(PINK/BRN)
(3)
TO
STRINGPIN
CONTROLLER
(1)
TO PIN
SWITCHES
(ON PMI)
(2)
TO PIN
SOLENOIDS
(ON PMI)

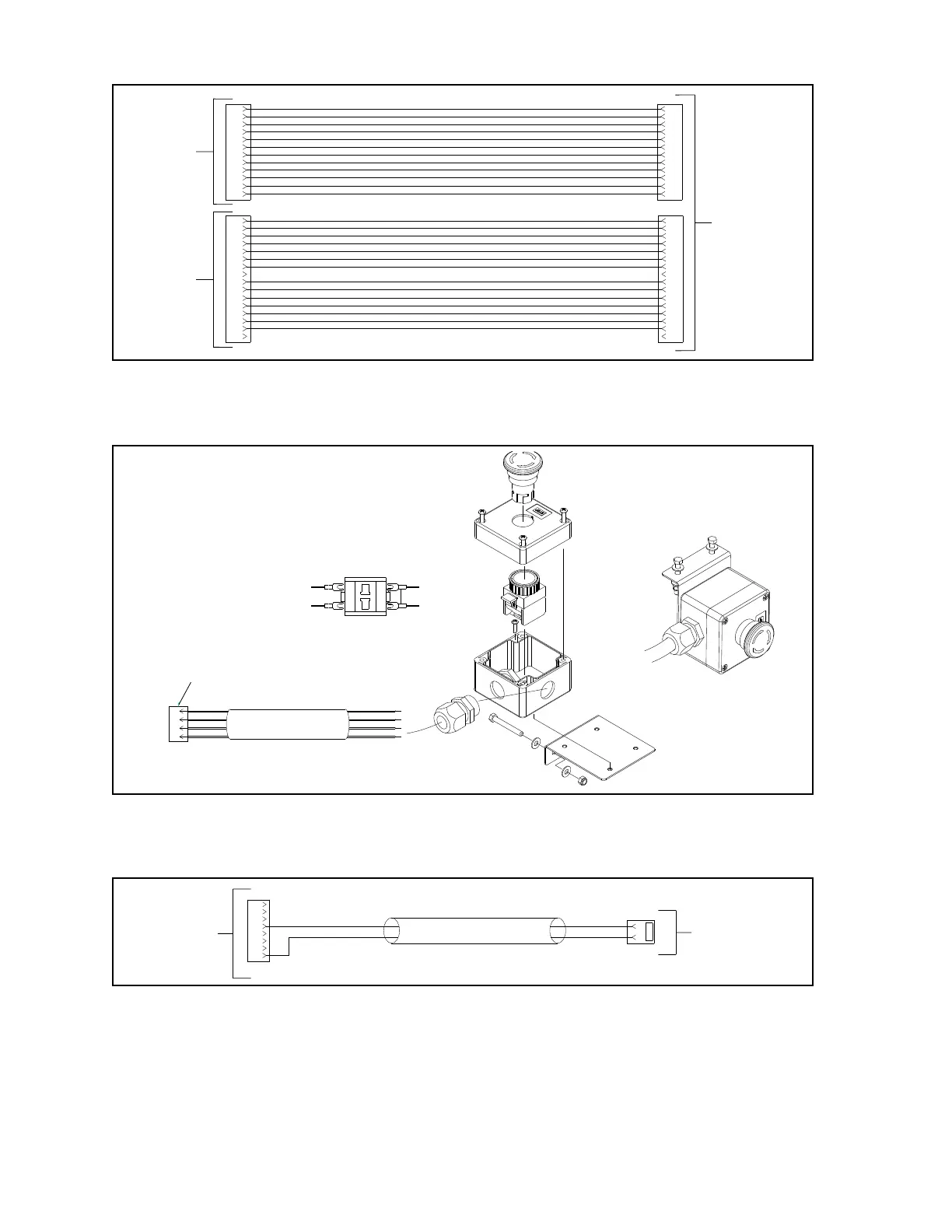

String Pinsetter Controller to Pin Motion Interfaces - Rear Mount Cable (P/N 55-143012-XXX)
(1) TO PIN SWITCHES (ON PMI) (2) TO PIN SOLENOIDS (ON PMI) (3) TO STRINGPIN CONTROLLER
3
4
GRN
WHT
12
11
BLK
22
21
2
RED
1
BLK
GRN
RED
WHT
(1)
TO
STRINGPIN
CONTROLLER
Emergency Stop Box and Cable - Rear Mount (P/N 55-143013-XXX)
(1) TO STRINGPIN CONTROLLER
BAS
1
2
2
4
1
3
5
6
7
8
BLK(BRN)
RED(WHT)
BLK(BRN)
RED(WHT)
(1)
TO
BALL
ACCELERATOR
MOTOR
OVERLOAD
(2)
TO
STRINGPIN
CONTROLLER
Ball Accelerator Overload Cable - Rear Mount (P/N 55-143014-XXX)
(1) TO BALL ACCELERATOR MOTOR OVERLOAD (2) TO STRINGPIN CONTROLLER
