Section4:Adjustments 4-13
BALL ACCELERATOR FLAT BELT ADJUSTMENT
Flat Belt Tension
A large tension spring at the front of the accelerator provides the tension for the at belt. When the belt
is under proper tension, this spring will be approximately 185 mm from spring hook to spring hook.
Refer to Figure 4-12. Adjust by tightening or loosening the two tensioning nuts that secure the long
tension bar to the rear of the accelerator frame.
HINT:Agoodstartingpointfortheadjustmentistomeasuretheamountoftensionrodthat
extendsfromthelocknut.Adjustthenutssothatthetensionbarthreadsextend50mmbeyond
theoutsidetensionnut.
NOTE:Accesstothespringisonlypossiblewhentheacceleratorisremovedfromtheballbox.
(1)
TENSION
BAR
(2)
TENSIONING
NUTS
(3)
ACCELERATOR
BELT
185mm
50mm

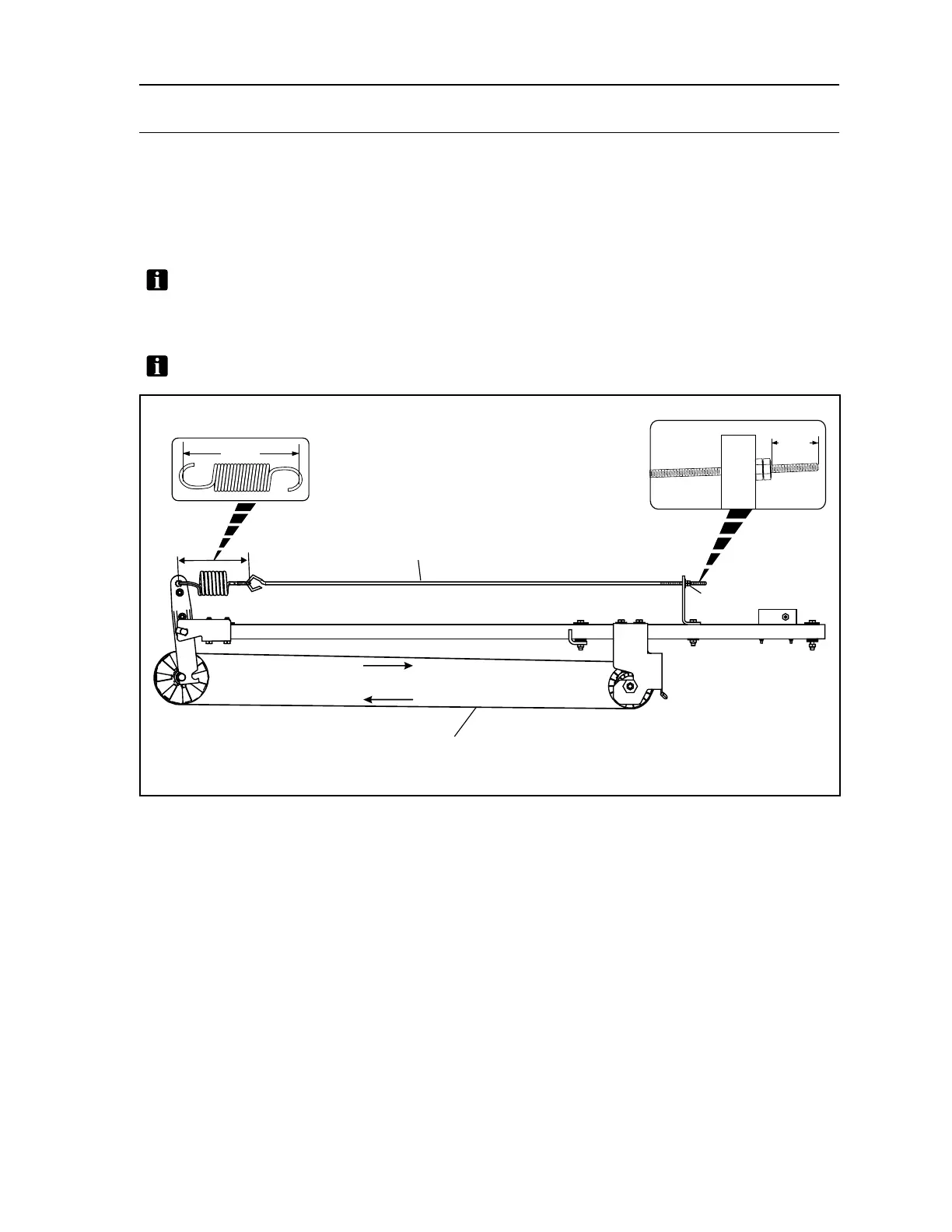

Figure4-12.BallAcceleratorFlatBeltTensionAdjustment
(1) TENSION BAR (2) TENSIONING NUTS (3) ACCELERATOR BELT
