4-12 Section4:Adjustments

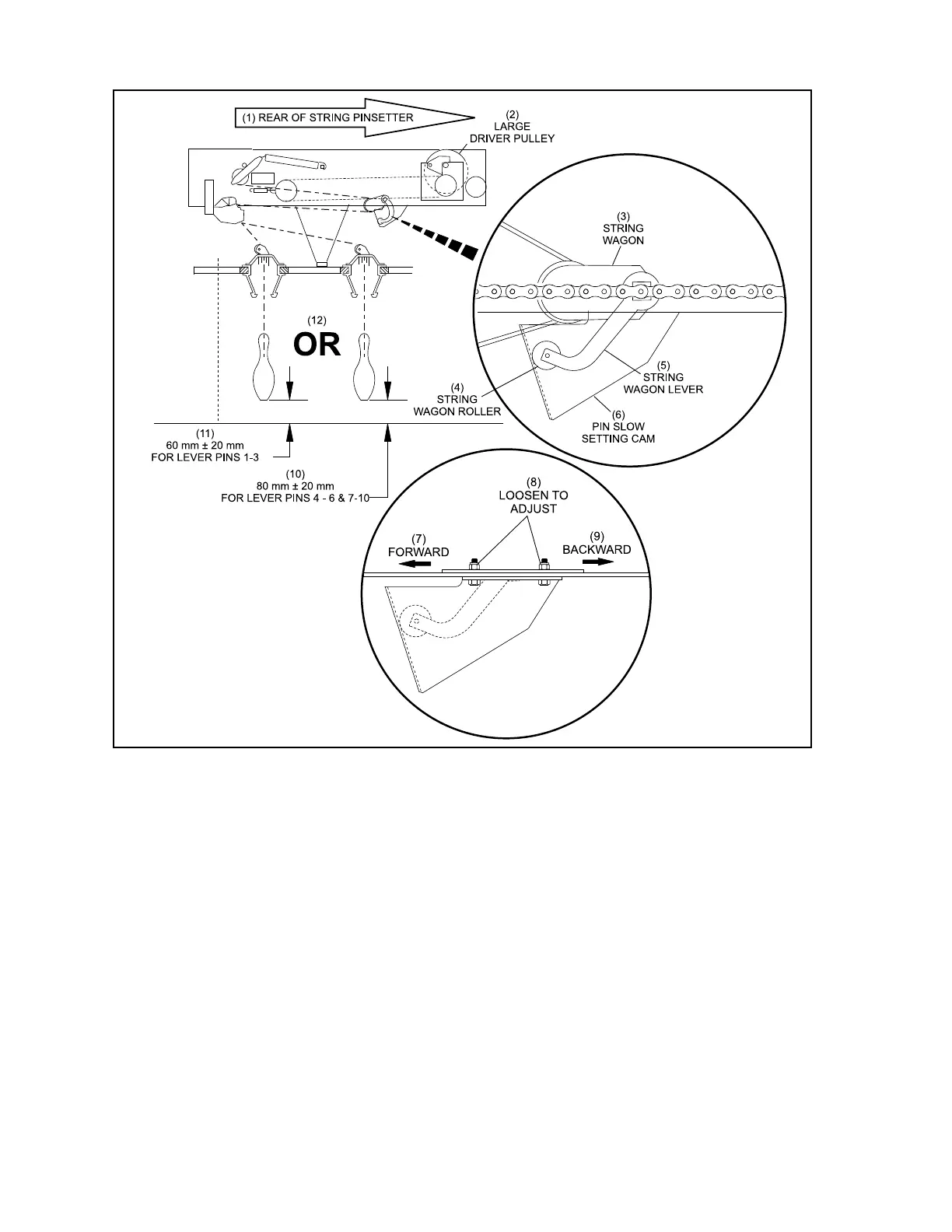

Figure4-11.SlowSettingAdjustment
(1) REAR OF STRING PINSETTER (2) LARGE DRIVE PULLEY (3) STRING WAGON
(4) STRING WAGON ROLLER (5) STRING WAGON LEVER (6) PIN SLOW SETTING CAM
(7) FORWARD (8) LOOSEN TO ADJUST (9) BACKWARD
(10) 80 mm ± 20 mm (11) 60 mm ± 20 mm FOR (12) OR
FOR LEVER PINS 4-6 AND 7-10 LEVER PINS 1-3
