Brunswick StringPin - High Voltage PCB

3-22 Section 3: Pinsetter Electronics
(3) High Voltage PCB - The High Voltage PCB supplies power for the pinsetter and accelerator
motors and standard LED pinlights as well as optional power for multi color LED pinlights.
(4) Power Supply - The Power Supply changes incoming the 208 or 230 voltage to 24VDC.
This voltage connects to the CPU where it is then used to power the circuits boards inside the
Controller as well as the D/C pinlights, trouble light, and solenoids in the Pin Motion Interfaces.
(5) Main Power Contactors - The Main Power Contactor energize to allow the incoming 3-phase
power to reach the High Voltage PCB. The contactors are connected in series to provide 2
stages of protection.
High Voltage PCB
+ +++
(7)
PINSETTER
MOTOR LED
(8)
A/C PINLIGHT
LED
(8)
A/C PINLIGHT
LED
(7)
PINSETTER
MOTOR LED
(12)
D/C PINLIGHT
LED
(12)
D/C PINLIGHT
LED
(10)
24V POWER
LED
(14)
D/C PINLIGHT
FUSES
(5)
BALL
ACCELERATOR
FUSES
(3)
A/C PINLIGHT
FUSES
(1)
PINSETTER
MOTOR FUSES
(1)
PINSETTER
MOTOR FUSES
(3)
A/C PINLIGHT
FUSES
F3
F13
F2
F6
F8
F9
F7
F5
F4
F10
F11
F12
F1
J3
J5
J2
J6
J1
J4
J7
J11
J10
F14
F15
F17
J9
J13
J12
F16
D5
D4
D14
D11
D13
D3
D9
D7
D2
D1
(2)
PINSETTER
MOTOR
(2)
PINSETTER
MOTOR
(6)
BALL
ACCELERATOR
MOTOR
(4)
A/C PINLIGHT
(4)
A/C
PINLIGHT
(13)
D/C PINLIGHT
(14)
D/C PINLIGHT
FUSES
(11)
MOTOR / PINLIGHT
CONTROL
(13)
D/C PINLIGHT
(9)
BALL ACCELERATOR
LED

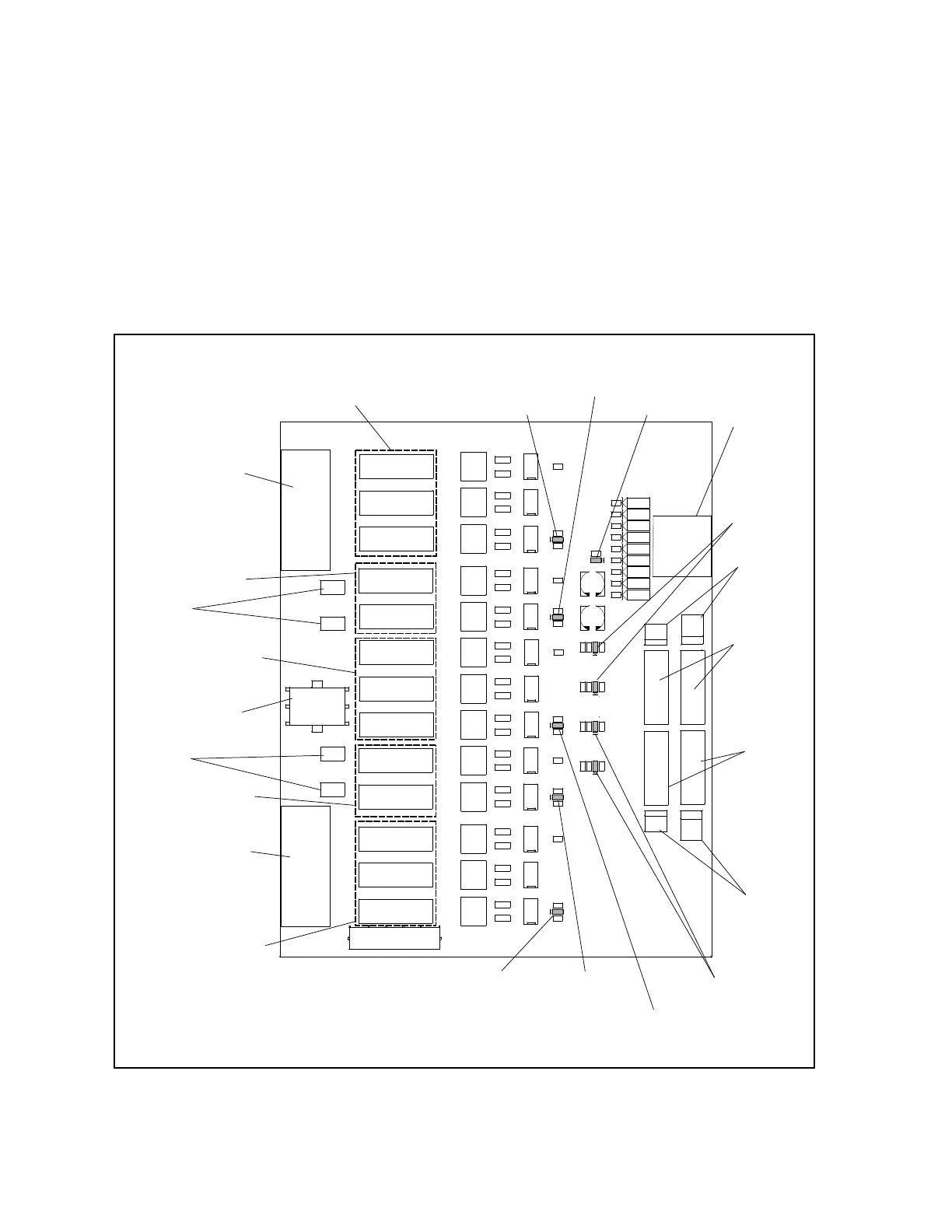

Figure3-16.HighVoltagePCB
