Brunswick StringPin - Semi Annually (6 Month); Annually

Section 5: Maintenance & Service 5-9
Semi Annually (6 Month)
• Lubricate the chain with chain lubricant. Put a light coating of chain lubricant on drive chains -
Allow penetration, then remove excess. Refer to item (1), Figure 5-8.
• Apply lubricant to the pivot point where the string wagon is attached to the chain. Refer to item
(1), Figure 5-8.
Annually
• Remove the switch cluster plate located the right side of the rear of the pinsetter. Apply grease
to the drive gears. Refer to item (3), Figure5-8.
• Remove cover from the motor and gear assembly located on the left side of the rear of the
machine and grease gear. Refer to item (2), Figure5-8.
(1)
LUBRICATE CHAIN /
STRING WAGON PIVOT
[6 MONTH]
(2)
REMOVE COVER TO GREASE
GEAR (DO NOT GET GREASE
ON THE “V” BELT)
[ANNUAL]
(3)
REMOVE COVER
TO GREASE GEAR
[ANNUAL]

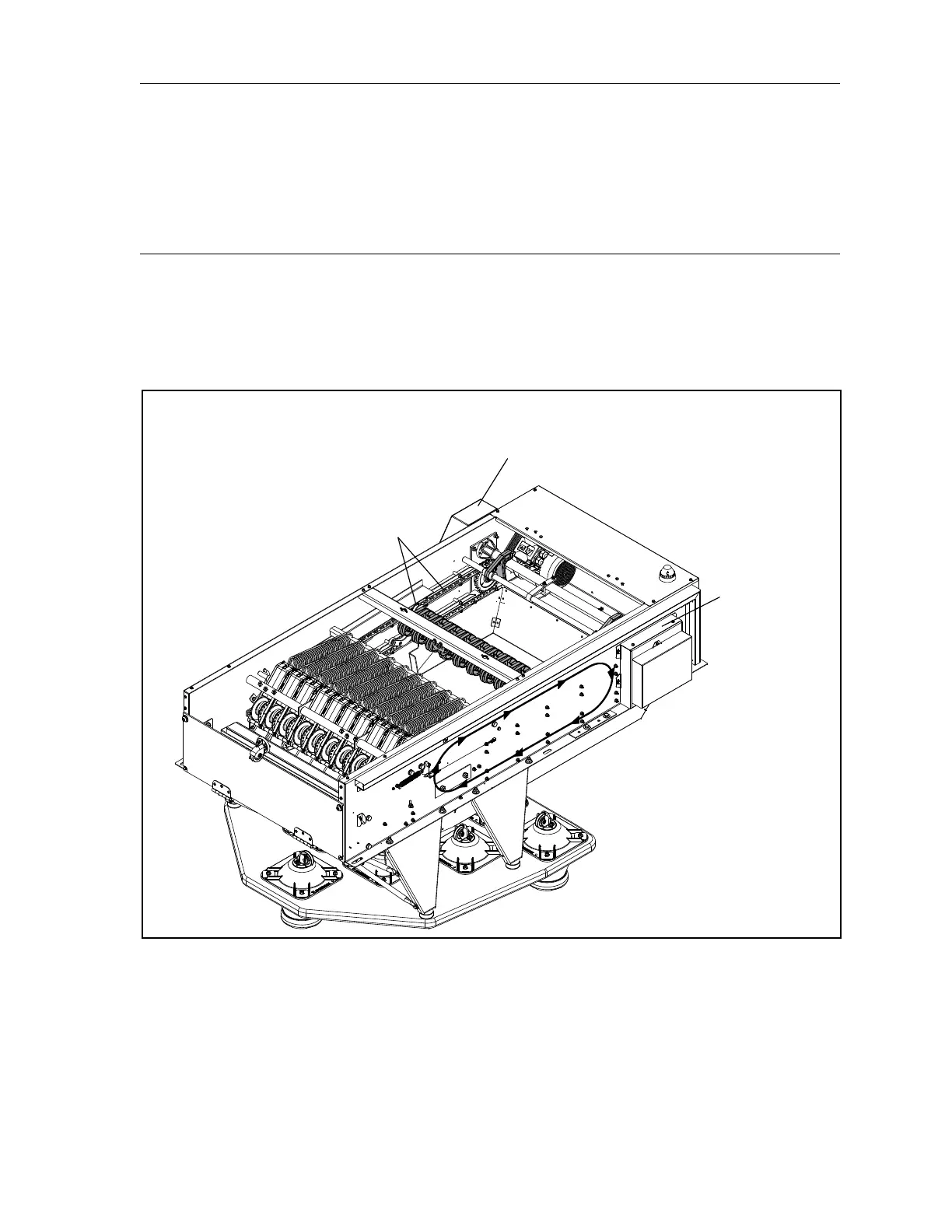

Figure5-8.LubricationLocations
(1) LUBRICATE CHAIN / STRING (2) REMOVE COVER TO (3) REMOVE COVER TO
WAGON PIVOT (6 MONTH) GREASE GEAR GREASE GEAR [ANNUAL]
(BE CAREFUL NOT TO GET
GREASE ON THE “V” BELT)
[ANNUAL]
