Brunswick StringPin - String Tension Adjustment

4-8 Section4:Adjustments
STRING TENSION ADJUSTMENT
The string tension adjustment determine the amount of string that is in use during normal operation.
The adjustment is accomplished by rotating the string spool to let more (or less) string out of the spool.
NOTE:Thestringforthepinswillstretchovertime.Thisadjustmentwillhavetobechecked
afterthestringhasstretched.
1. Return All Pins to the Pins Up Position
a. Place the Stop/Run switch on the Controller to the “Stop” position.
b. On the Pinsetter Mode drop down menu, select Pins Up or Setup. Figures4-8aand4-8b.
c. Place the Stop/Run switch on the Controller to the “Run” position.
(1)
MODE DROP
DOWN MENU
(1)
MODE DROP
DOWN MENU
(2)
PINS UP

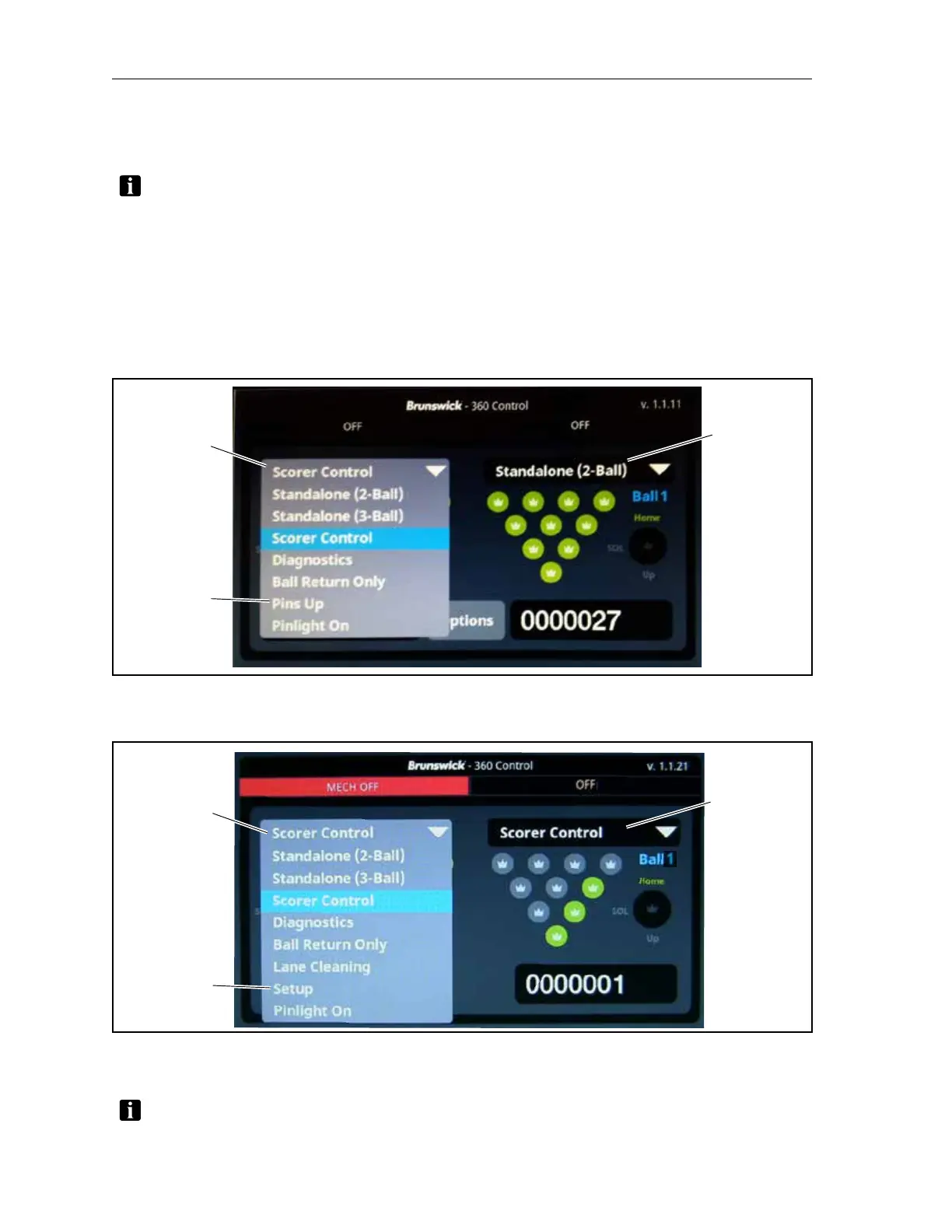

Figure4-8a.SelectPinsUpMode(Versions1.1.14andPrior)
(1) MODE DROP DOWN MENU (2) PINS UP
(1)
MODE DROP
DOWN MENU
(1)
MODE DROP
DOWN MENU
(2)
SETUP
Figure4-8b.SelectPinsUpMode(Versions1.1.15andLater)
(1) MODE DROP DOWN MENU (2) SETUP
NOTE:Thestringwagonshouldstoponthestopdogssothatthepinsareheldintheup
position.Ifthewagondoesnotcatchonthestopdogs,verifythePinsUpadjustment
