Section4:Adjustments 4-7
4. Adjust the String Brake switch up or down, as needed, to obtain the appropriate pin movement.
Refer to Figure4-7.
TIP:Ifthepintravelisgreaterthan100mm,movethestringbrakeswitchupward.Ifthe 
travelislessthan60mm,movethestringbrakeswitchdownward.
5. Repeat steps 1-4 to verify pin movement in pin centering cone.

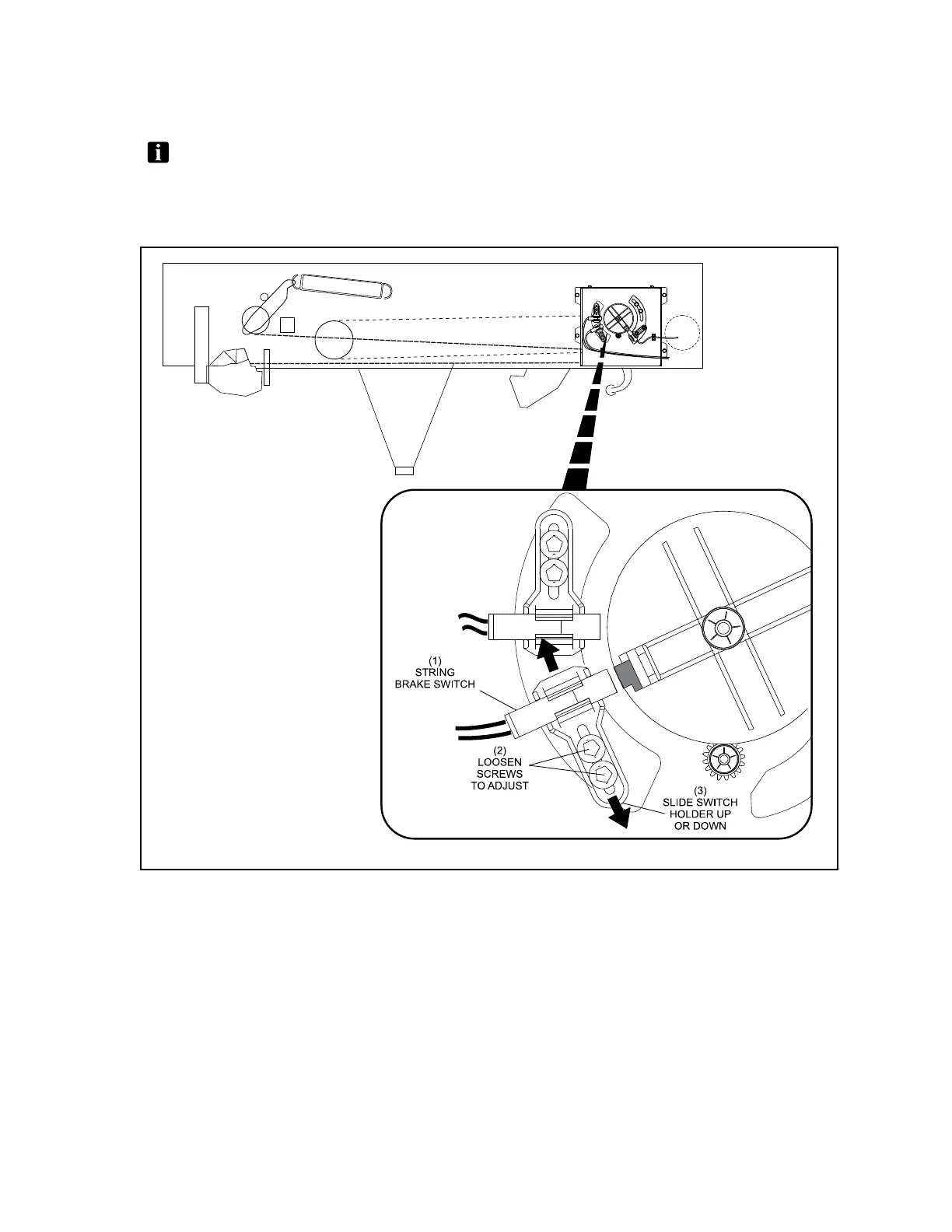

Figure4-7.AdjustBrakeSwitch
(1) STRING BRAKE SWITCH (2) LOOSEN SCREWS TO (3) SLIDE SWITCH HOLDER UP OR
ADJUST DOWN
