Brunswick StringPin - Work Areas; Work Area 1 - Floor

2-26 Section 2: Overview
WORK AREAS
The operation, maintenance, and repair of the StringPin can be accomplished using three dened work
areas or locations, as dened from the most to least frequently used, the areas include:
Area 1 - Floor
Area 2 - Ball Accelerator and Standing Platforms
Area 3 - Pin Deck
CAUTION: When accessing work areas 2 and 3, the main power switch on the
StringPin controller must be locked in the o position using a suitable locking
mechanism.
CAUTION: When accessing work area 3, make sure to properly secure a
Brunswick Ball Stop or similar 3rd party product to the lane between you and
the bowler for added protection.
Work Area 1 - Floor
The most frequent area used for operating and maintaining the pinsetter is the oor area behind the
pinsetters. During operation, all machine activity can be observed from this location. Additionally, the
StringPin Controller can be easily accessed from Work Area 1. Refer to Figure 2-26 for the work area.
This area may be used for such activities as:
1. Correcting Ball Return Stops - Ball Accelerator
2. Respotting Pins
(3)
WORK AREA
1
(2)
MACHINE REAR
(1)
ACCESS STEPS

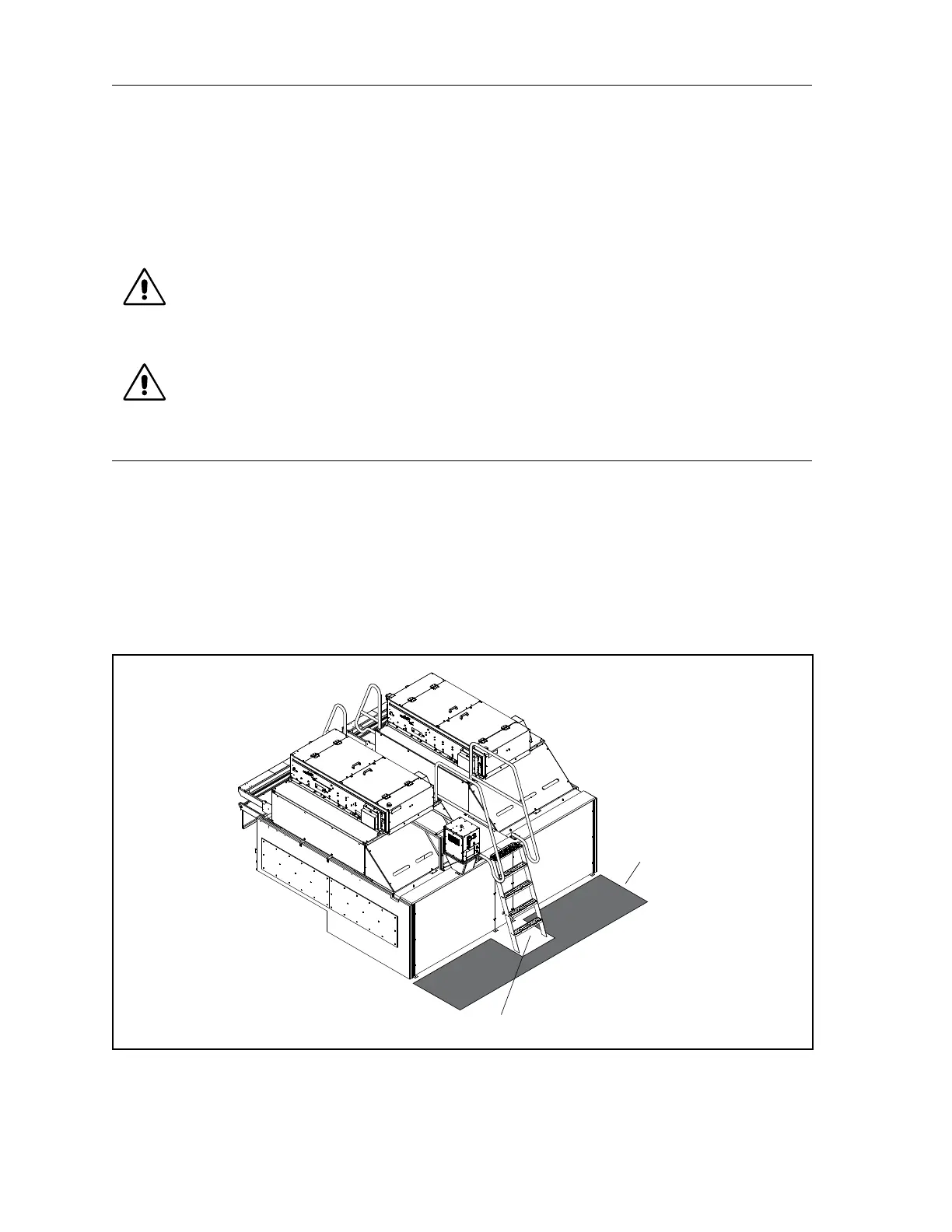

Figure2-26.MachineWorkArea1-Floor
(1) ACCESS STEPS (2) MACHINE REAR (3) WORK AREA 1
