Brunswick StringPin - Pinsetter Access Points

2-24 Section 2: Overview
PINSETTER ACCESS POINTS
It may become necessary to enter the pinsetter to perform maintenance tasks or correct a problem with
the machine. If entering the pinsetter is needed, only enter using the locations as shown in the Pinsetter
Access Points section. The Access Points are highlighted in the following gures. Refer to the Figure
2-24 and Figure2-25.
NOTE:Alwaysfacetowardthemachinewhenusingapinsetterladdertoclimbontoorothe
machine.Onlyonepersonshouldbeontheladderatanytime.
CAUTION: Only use the access points as recommended.
WARNING! Always make sure that a bowler is not positioned to throw a
ball before putting yourself between the bowler and the machine. It is good
practice to have another employee positioned near any bowler to ensure they
cannot throw a ball. Additionally, make sure to properly secure a Brunswick
Ball Stop or similar 3rd party product to the lane between you and the bowler
for added protection.
(1)
FRONT
ACCESS

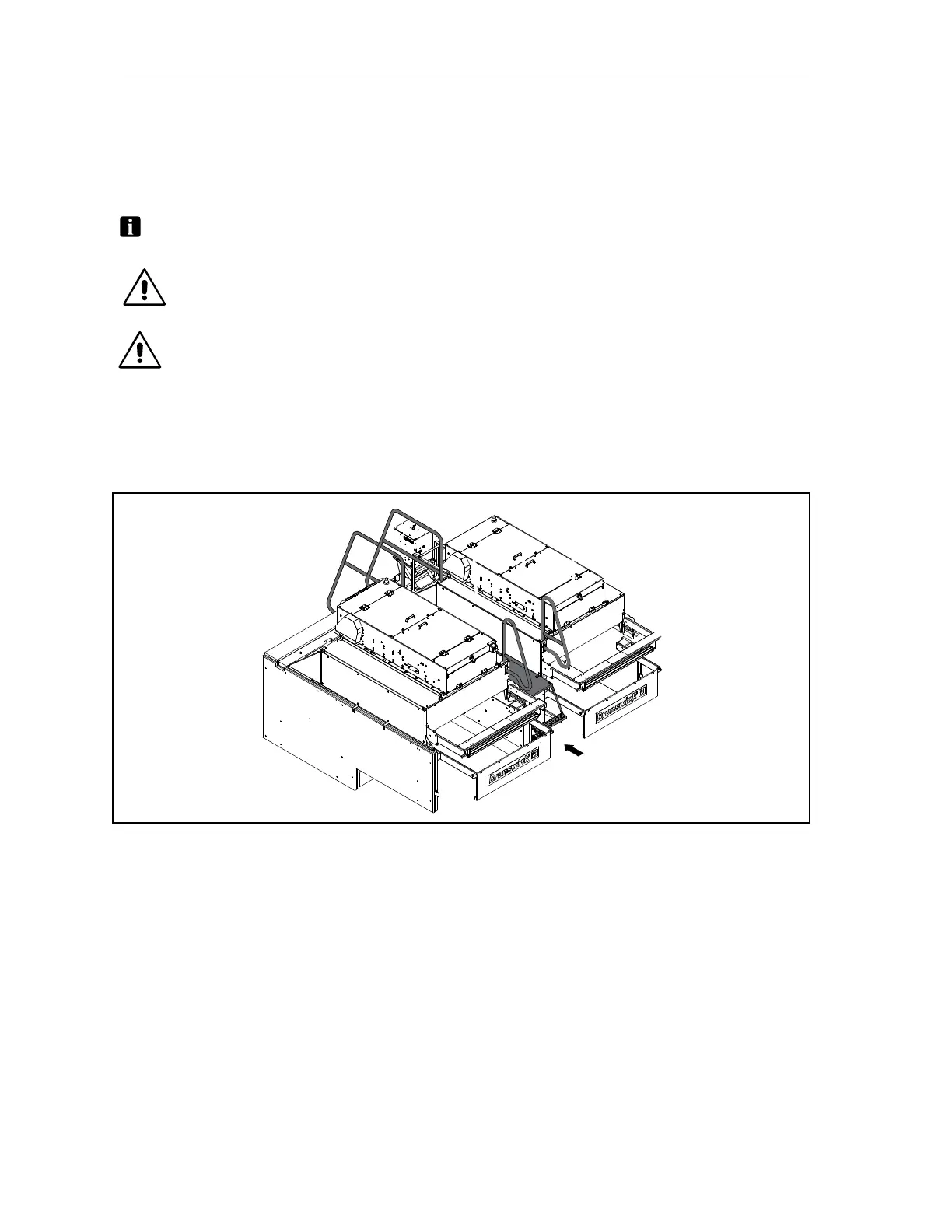

Figure2-24.MachineFrontAccess
(1) FRONT ACCESS
