Brunswick StringPin - Drive Motor Wiring

Section 5: Maintenance & Service 5-5
Drive Motor Wiring
(6)
208V DRIVE MOTOR WIRING FOR
208 VOLTS
(2)
MOTOR WIRING
BLOCK
(1)
MOTOR
CABLE FROM
CONTROLLER BOX
(4)
WIRING
STRAPS
L1
L2
GND
L3
(1)
MOTOR
CABLE FROM
CONTROLLER BOX
(3)
GROUND
CONNECTION
(4)
WIRING
STRAPS
(8)
230V/380V DRIVE MOTOR WIRING
FOR 380 VOLTS
(2)
MOTOR WIRING
BLOCK
(1)
MOTOR
CABLE FROM
CONTROLLER BOX
(4)
WIRING
STRAPS
GND
(3)
GROUND
CONNECTION
(7)
230V/380V DRIVE MOTOR WIRING
FOR 230 VOLTS
(2)
MOTOR WIRING
BLOCK
(1)
MOTOR
CABLE FROM
CONTROLLER BOX
(4)
WIRING
STRAPS
GND
(3)
GROUND
CONNECTION

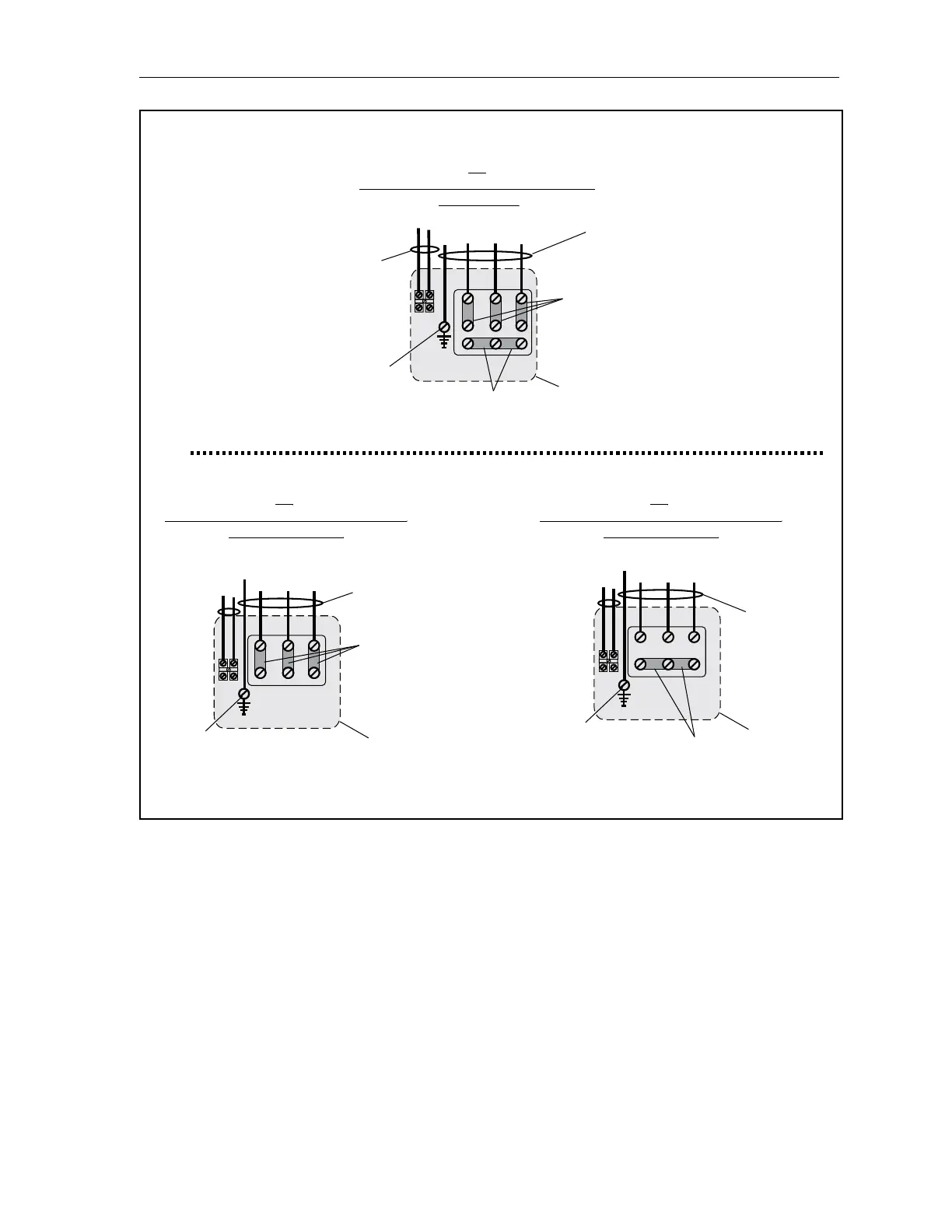

Figure5-5.DriveMotorWiring.
(1) MOTOR CABLE FROM (2) MOTOR WIRING BLOCK (3) GROUND
CONTROLLER BOX
(4) WIRING STRAPS (5) MOTOR OVERLOAD 1 TO (6) DRIVE MOTOR WIRING
(7) DRIVE MOTOR WIRING CONTROLLER BOX FOR 208 TO 230 VOLTS
WIRING FOR 380 VOLTS
