Brunswick StringPin - Pinsetter Guarding

Section 2: Overview 2-5
PINSETTER GUARDING
The StringPin Pinsetter is equipped with guards to prevent injury and to limit access to moving parts
of the pinsetter. Two guarding options are available; UL certied and CE Certied. UL Certied
guarding is the standard guarding for centers outside the European Union while CE Certied guarding
is required for centers in European Union countries as well as all residential installations. Refer to
Figure 2-4 and Figure 2-5 for an explanation of all pinsetter guarding.
Brunswick strongly encourages all centers to consider upgrading to
Brunswick’s CE Certied guarding.
WARNING! Do not operate the pinsetter without the guarding in place. Severe
injury could result if the pinsetter guarding is not used while the machine is
operating.
(3)
(2)
BACK OF
MACHINE
(1)
FRONT OF
MACHINE
(3)
(4)
(4)
(5)
(5)
(5)
(5)
(6)
(6)

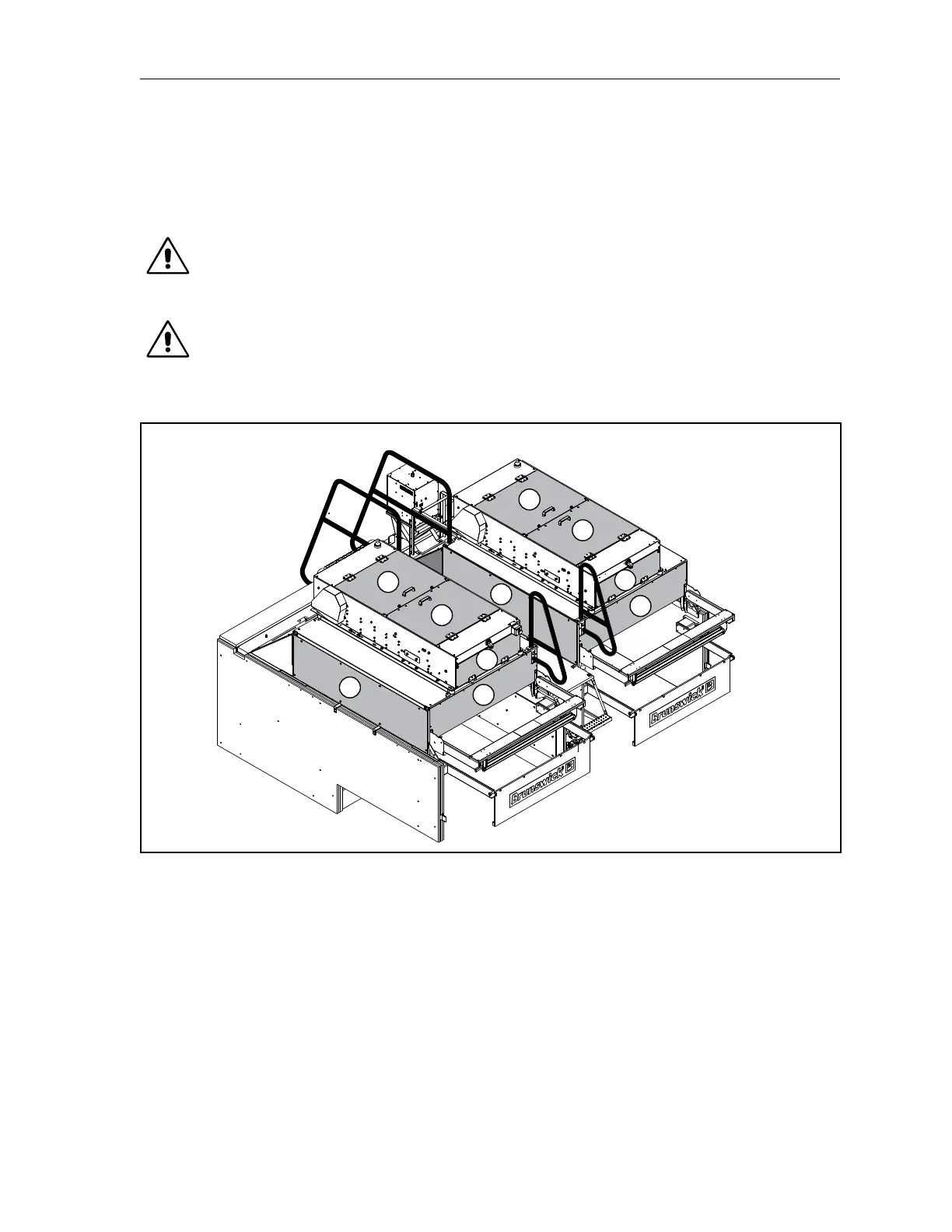

Figure2-4.Guarding(Front)
(1) FRONT OF MACHINE (2) BACK OF MACHINE (3) FRONT PINFALL GUARDS (CE ONLY)
(4) PMI GUARDS (5) TOP/MOTOR DRIVE GUARDS (6) SIDE PINFALL GUARDS (CE ONLY)
