Brunswick StringPin - Setting Platform (Pin Table)

2-20 Section 2: Overview
Setting Platform (Pin Table)
The Setting Platform (Pin Table) is a stationary frame mounted under the main frame. The main
components on the platform are the Pin Centering Cones. The cones interacts with the pins when they
are in the up position to stabilize and position them perpendicular to the pindeck so they can be set
vertically onto the pindeck. Refer to Figure2-20.

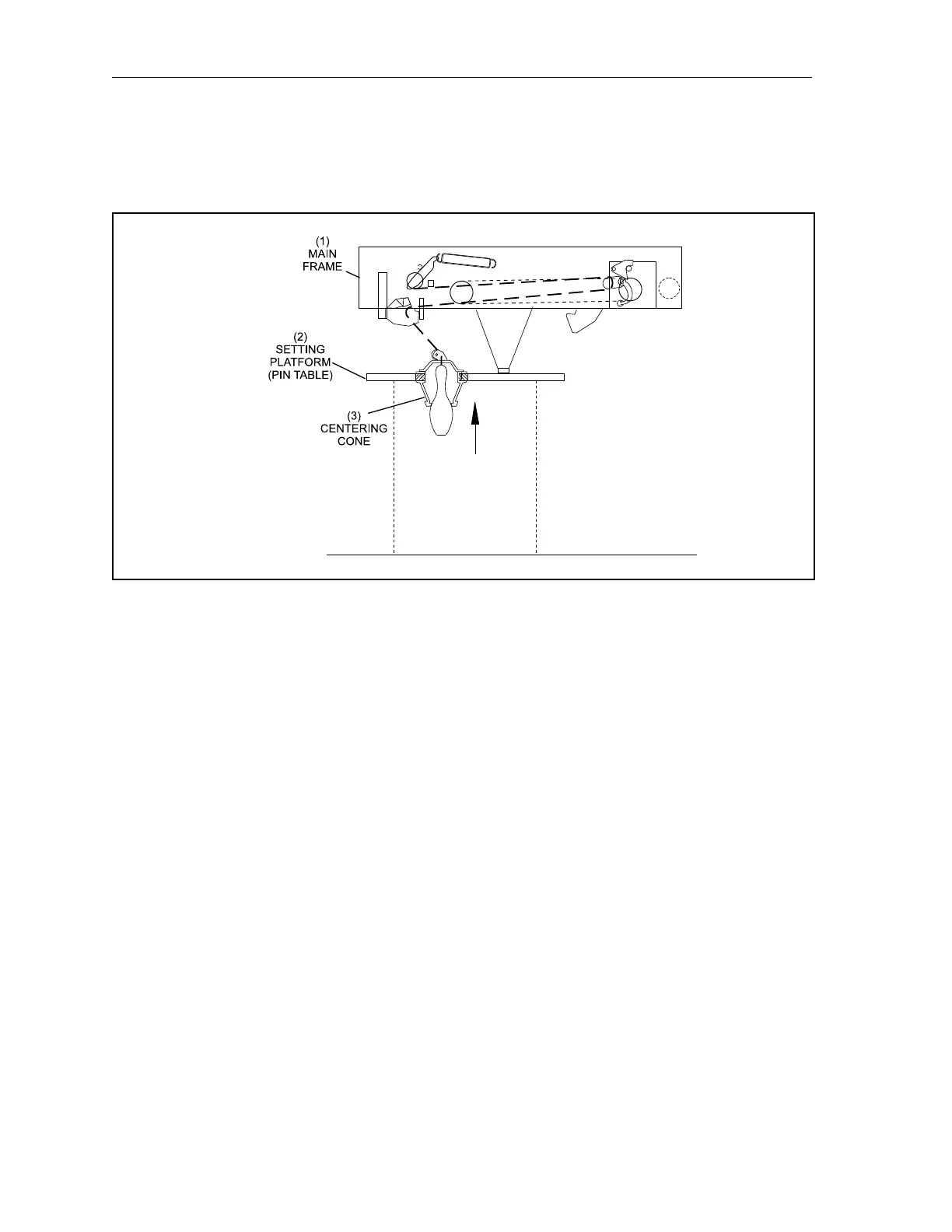

Figure2-20.StringPinsetterMainComponents-SideView
(1) MAIN FRAME (2) SETTING PLATFORM (3) CENTERING CONE
(PIN TABLE)
