Brunswick StringPin - Ball Accelerator

2-22 Section 2: Overview
Ball Accelerator
Mounted between the two pinsetters of a lane pair is a ball accelerator that returns balls to the bowler
from either lane. The ball enters the accelerator from the pit carpet through a ball door. A large at belt
mounted on two drums grips the ball and propels it forward to the ball lift. Refer to Figure 2-22. Power
to run the belt is furnished by a three phase motor incorporated into the rear drum.
(4)
BALL TRACK
RODS
(1)
TENSION
BAR
(3)
FLAT BELT
TENSIONER NUTS
(5)
REAR DRUM
AND MOTOR
(6)
BALL
DOOR
ASSEMBLY
(7)
ACCELERA
TOR
BELT
(2)
FRONT
DRUM

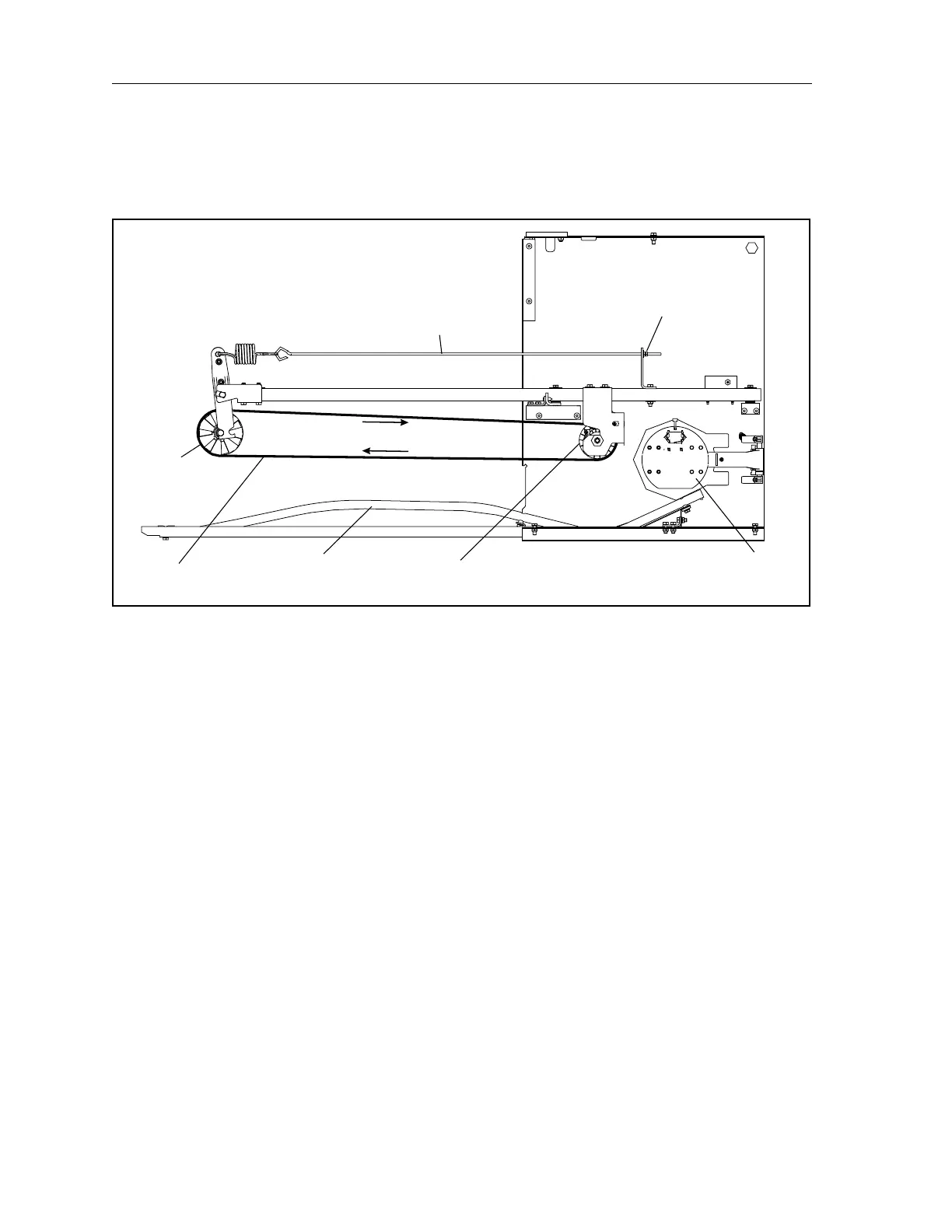

Figure2-22.BallAccelerator
(1) TENSION BAR (2) FRONT DRUM (3) FLAT BELT TENSION NUTS
(4) BALL TRACK RODS (5) REAR DRUM AND MOTOR (6) BALL DOOR ASSEMBLY
(7) ACCELERATOR BELT
