2-6 Section 2: Overview
(1)
BACK OF
MACHINE
(2)
FRONT OF
MACHINE
(3)
(3)
(4)
(5)
(5)
(6)
(6)
(6)
(6)
(7)
(7)

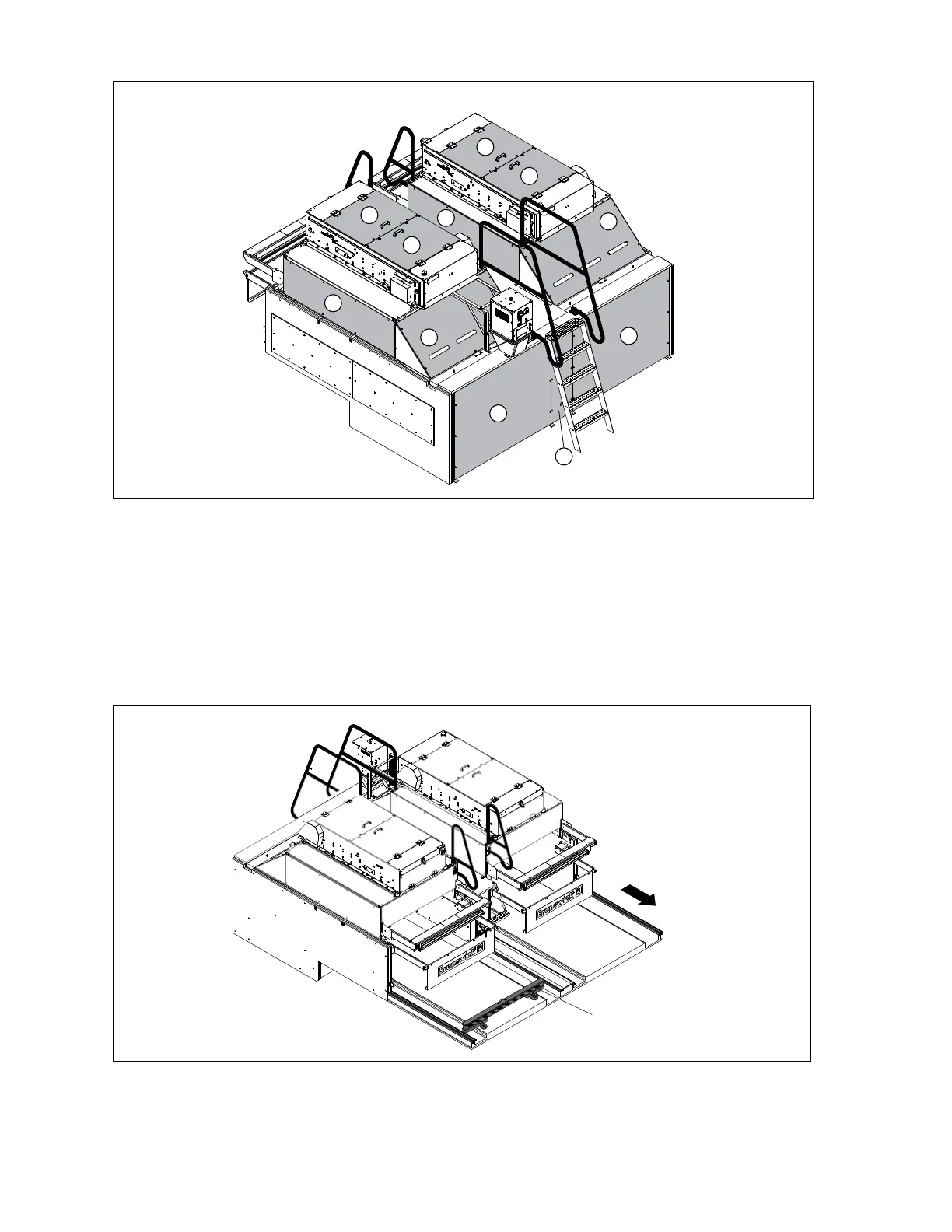

Figure2-5.Guarding(Rear)
(1) BACK OF MACHINE (2) FRONT OF MACHINE (3) REAR MACHINE GUARDS
(4) BALL ACCELERATOR GUARD (5) REAR PINFALL GUARDS (6) TOP/MOTOR DRIVE GUARDS
(CE O NLY) (CE O NLY)
(7) SIDE PINFALL GUARDS (CE ONLY)
To prevent a ball from impacting the mechanic or operator during maintenance, place a Brunswick Ball
Stop or similar 3rd Party Product on the lane. Secure it properly in place between the bowler and the
mechanic/operator. Refer to Figure2-6.
(1)
BRUNSWICK BALL STOP OR
SIMILAR 3RD PARTY PRODUCT
(2)
REAR
(3)
FRONT
(4)
T
O FOUL
LINE
Figure2-6BrunswickBallStop/3rdPartyProduct
(1) BRUNSWICK BALL STOP OR (2) REAR (3) FRONT
3RD PARTY PRODUCT
(4) TO FOUL LINE
