Section 3: Pinsetter Electronics 3-11
Main Screen - Versions 1.1.12 and Later
(2)
CURRENT
BALL
(3)
MACHINE
SWITCH
POSITION
(6)
PRESENT
SET PINS
(5)
FRAME
COUNTER
(8)
FIRMWARE
VERSION
(1)
PINSETTER
STATUS
(2)
CURRENT
BALL
(6)
PRESENT
SET PINS
(3)
MACHINE
SWITCH
POSITION
(5)
FRAME
COUNTER
(7)
PINSETTER
MODE
(7)
PINSETTER
MODE
(1)
PINSETTER
STATUS
Options
(4)
OPTIONS
MENU

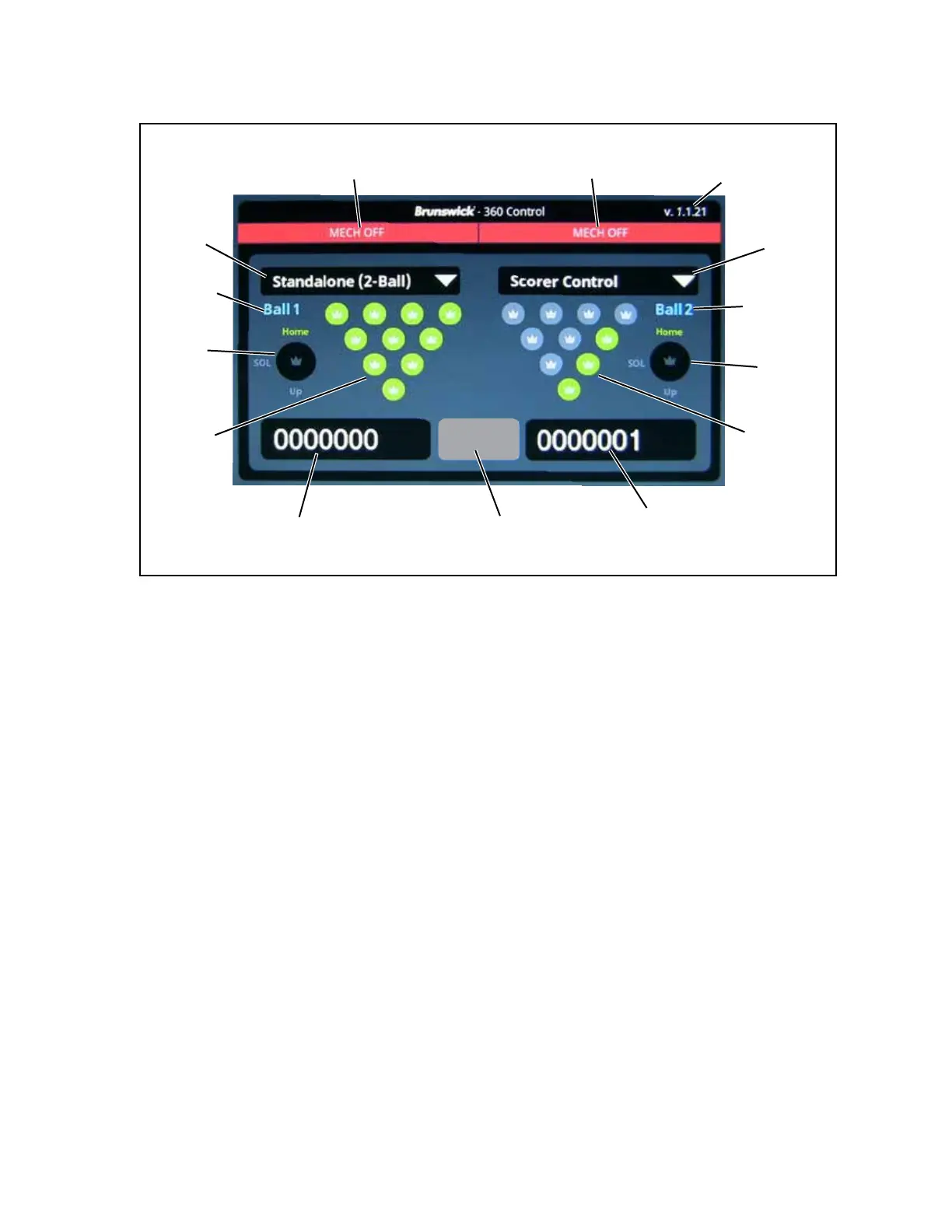

Figure3-9.LCDTouchscreen-Overview(MainScreen)Versions1.1.15andLater
The function of the Touchscreen include:
(1) Pinsetter Status - Pinsetter power and error code status (if applicable). This area will display
the OFF / RUN status or the error description if the pinsetter is in an error state. Refer to the
pinsetter error code chart for more information.
(2) Current Ball - Pinsetter ball count. This will display the current pinstter ball count. Depending
on the mode (2-Ball or 3-Ball), the pinsetter ball count could be one, two, or three. Each ball
count refers to the traditional cycle sequence of the pinsetter:
Ball 1 - 10 Pins, rst ball
Ball 2 - Spare Ball
Ball 3 - Cleanup (3-ball mode only)
(3) Machine Switch Position - Display of current position of the switch cluster cam as it rotates
and passes the three cluster switches. When equipped with rmware version 1.1.23 and newer,
touching the switch cluster animation area will open the Switch Diagnostic Menu screen.
Home - Indicates the “Home” switch is actuated. In this position, the wagon is at the front
of the pinsetter and the pins are spotted on the pin deck
Up - Indicates the “Pins Up” switch is actuated. In this position, The wagon is at the back
of the pinsetter and the pins are in the up position.
SOL- Indicates that the wagon is moving from the back to the front of the machine and
has actuated the string solenoid switch. This switch determines when the string solenoids
are energized.
