Brunswick StringPin - Page 79

Section 3: Pinsetter Electronics 3-39
During the alternative de-tangle sequences, the drive motor will shut o to release the string tension
and allow the pins to lower towards the pindeck. After two seconds, the motor turns back on to raise the
pins. If a tangle is still present it will again be detected by the de-tangle switch and the motor will shut
o for another two seconds. After ve failed attempts to correct the problem, the motor will shut o for
ve seconds to allow the pins to lower to the pindeck. The motor then turns back on to lift the pins to
begin the next 5 attempt sequence.
This shaking pattern will continue until the strings are no longer tangled, a service person turns o the
machine and manually corrects the problem, or the six pin lowering sequences have been attempted. If
each sequence is performed without successfully de-tangling the pins, the motor shuts o to lower all
pins to the pindeck, the trouble light on the pinsetter with ash to indicate a problem, and the Controller
will display a “Tangle-01” error code. Refer to Figure3-29.
(B)
Sequence2nd
(C)
Sequence3rd
(A)
1st Sequence
(D)
Sequence4th
(B)
Sequence2nd
(C)
Sequence3rd
(A)
1st Sequence
(D)
Sequence4th
(B)
Sequence2nd
(C)
Sequence3rd
(A)
1st Sequence
(D)
Sequence4th
= Pins Lowered
= Pins Not Lowered
Each Sequence Repeats Five Times
(E)
Sequence5rd
(F)
Sequence6th
(E)
Sequence5rd
(F)
Sequence6th
(E)
Sequence5rd
(F)
Sequence6th
HOLD 3 SEQUENCE (SES):
ODD-EVEN SEQUENCE:
WAVE SEQUENCE:

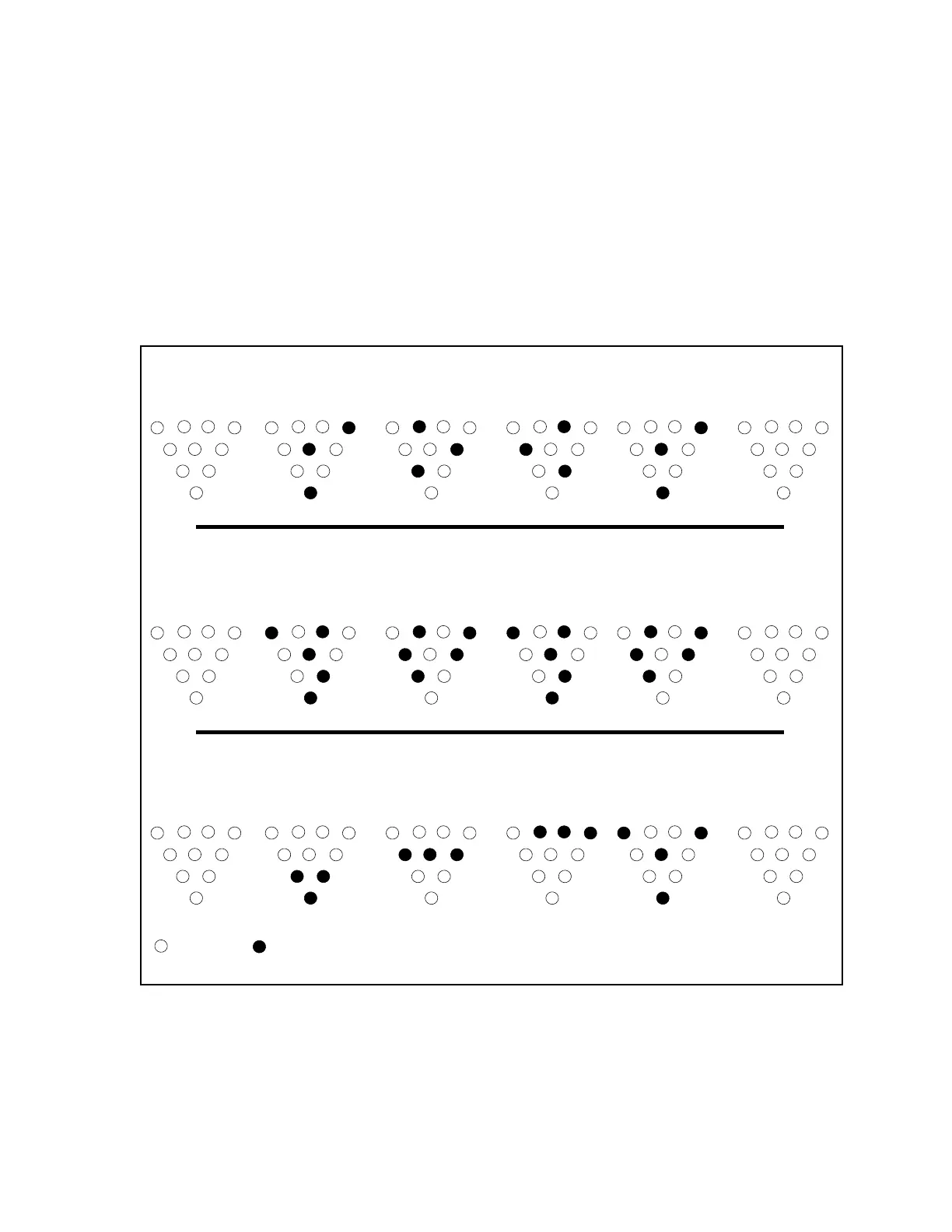

Figure3-29.PinLoweringPatternDuringtheDe-TangleSequence
(1) 1ST SEQUENCE (2) 2ND SEQUENCE (3) 3RD SEQUENCE
(4) 4TH SEQUENCE (5) PINS LOWERED (6) PINS NOT LOWERED
(7) EACH SEQUENCE REPEATS
FIVE TIMES
