110
VIDEO DOOR ENTRY SYSTEM - CONFIGURATION
D45
Accessory configuration examples
323018 - ep/switchboarD shunt conFiguration
possible conFiguration proceDure
MODE 1
Resistance conguration
Keyboard conguration
Use RS232 conguration

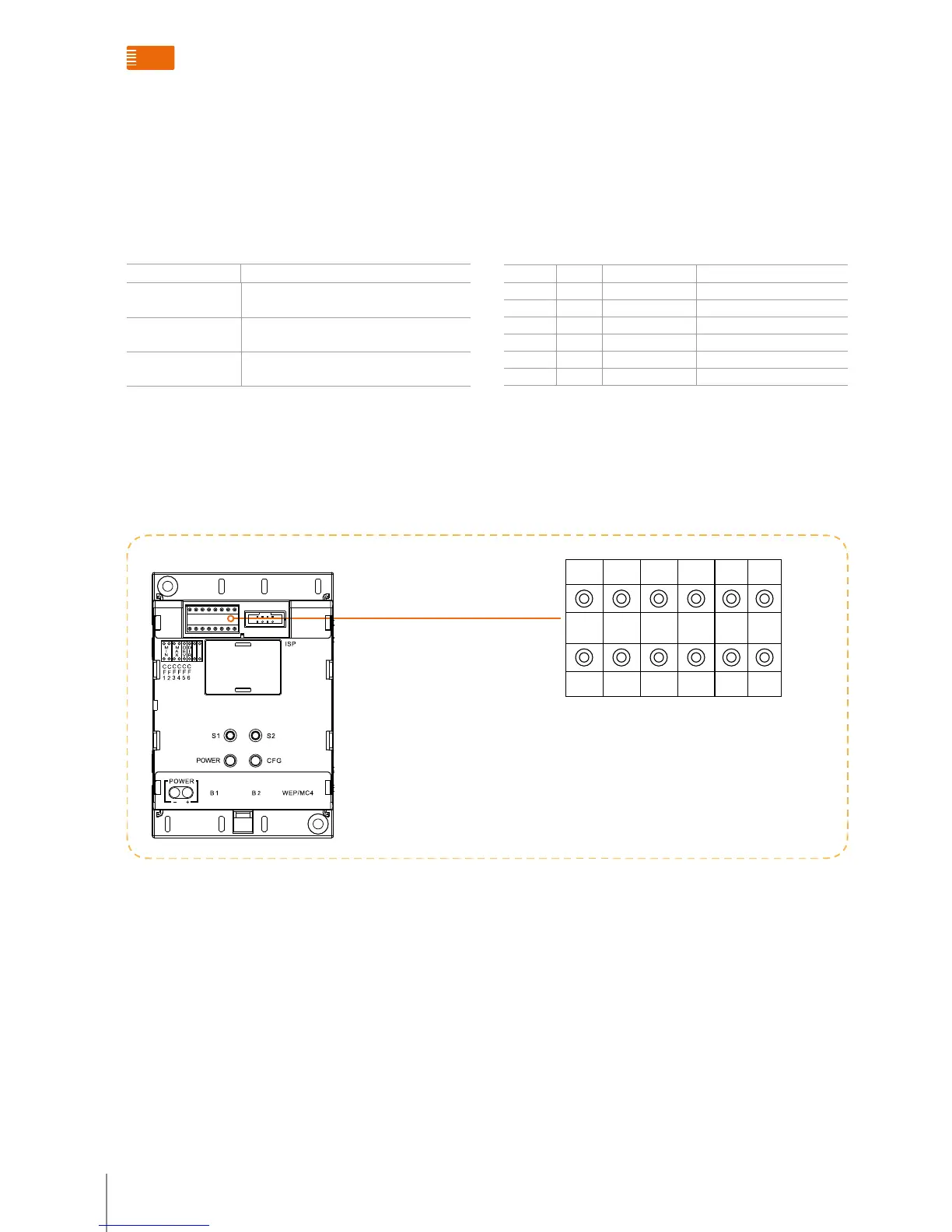

conFigurators position For ep/switchboarD shunt
CF1 CF2 CF3 CF4 CF5 CF6
MIN MIN MAX MAX DEV DIR
0 4 0 5 0 0
POSITION MODE 1 VALUE FOR CONFIG. REMARK
CF1 MIN 0 x
CF2 MIN 4 x
CF3 MAX 0 x
CF4 MAX 5 x
CF5 DEV 0 x
CF6 DIR 0 x
The 323018 used to extend one switchboard, switchboard
address range is 4 to 5; all main EP are installed in the B2 port
of 323018, configuration as follows:
