SONORA - CARATTERISTICHE GENERALI
44
VIDEO DOOR ENTRY SYSTEM - GENERAL FEATURES
D45
323008 - basic apartment interFace
323008 should be installed between Floor shunt and
handset. When one apartment has 2 or 3 handsets, please
use this device to extend interfaces.

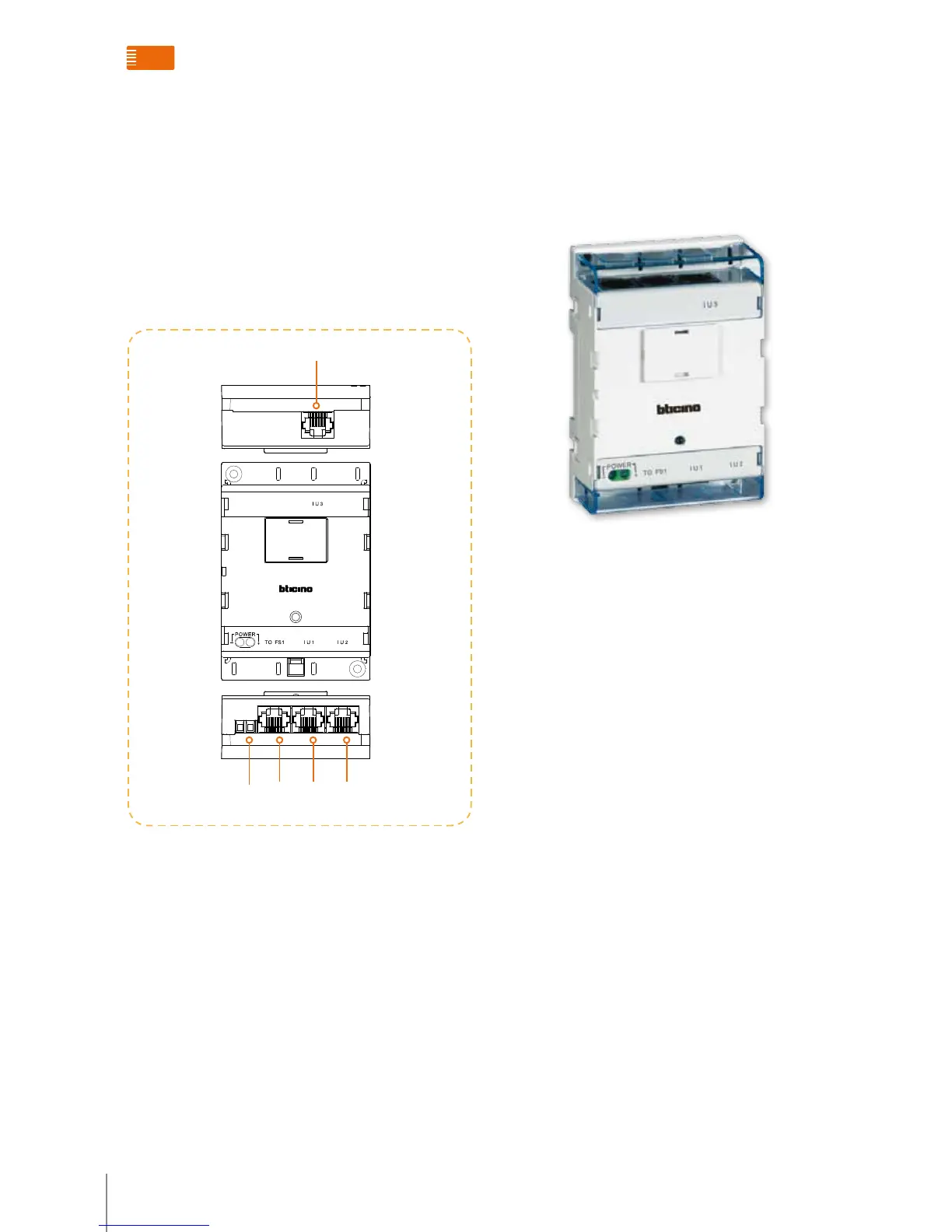

Basic apartment interface
legenD
1. Connector for handset 3
2. Connector for handset 2
3. Connector for handset 1
4. System BUS input
5. Accessory power supply input 30 Vdc
Note: (1 – 4) these four terminals are RJ45 connectors, use CAT5 cable.
POWE R
+
-
5 4 3 2
1
System accessories functions overview
