131

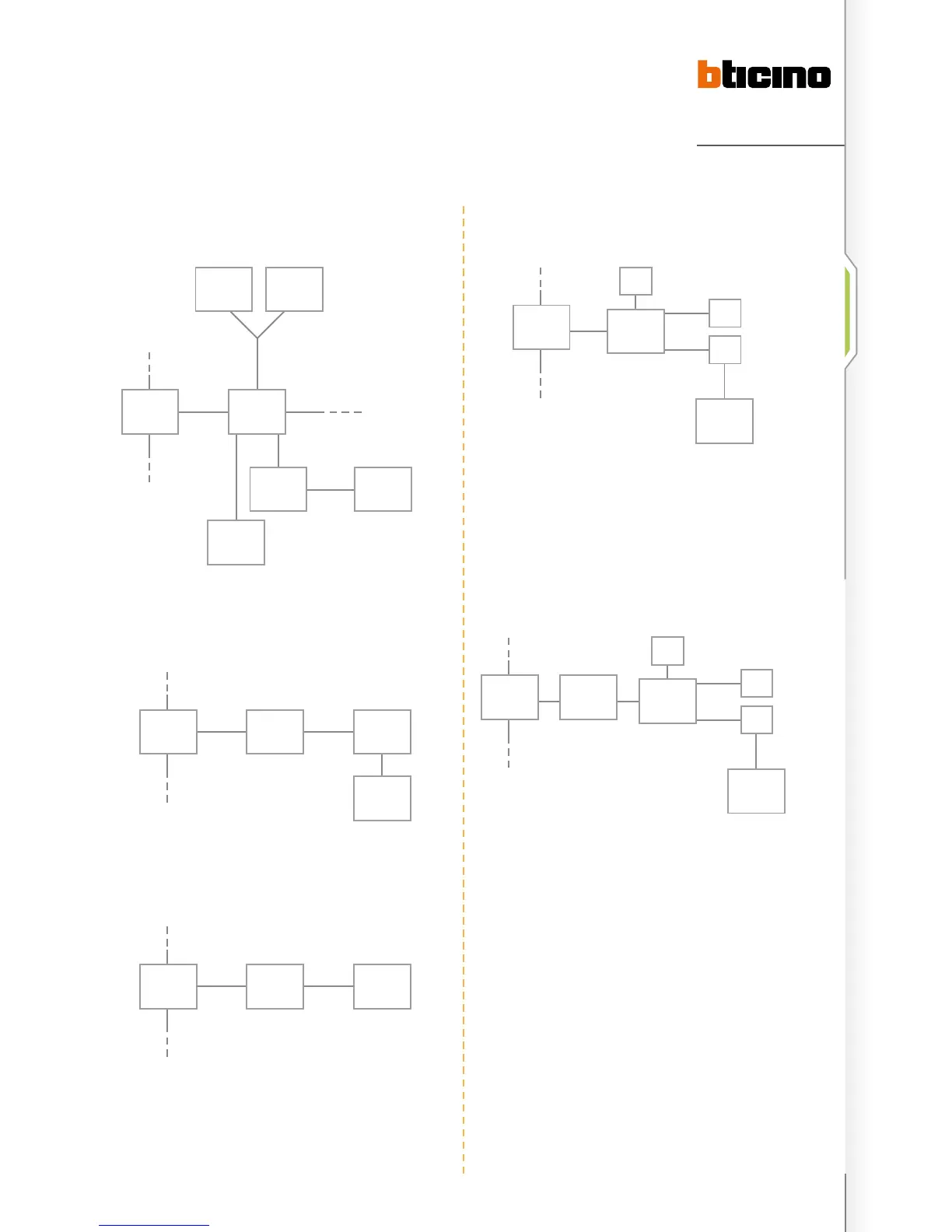

D45 VIDEO DOOR ENTRY SYSTEM
example 7
internal unit connections
example 8
connection between auDio hanDset anD
viDeo hanDset
example 9
bticino 2 wire interFace connection
323002
Video
handset
Small
EP
Audio
handset
323002
My Home
Device
346858
323002
Small
EP
323015
Alarm
sensor
Alarm
sensor
HANDSET
SOS ALARM
DC15V/2A
adapter
example 10 anD 11
basic apartment interFace connection
Remark:
n The Small EP only can call the master handset, for
conversation and door lock release.
n All handsets will ring, and the display of the master
handset will come on. After the call is answered, the
display on the handset answering the call will come on
and the other handsets will stop ringing.
n The master handset can monitor the Small EP
Remarks:
n When the total power consumption for all handsets
connected to 323008 exceeds the limit, an auxiliary power
supply (323010) is required.
HANDSET
323008
HANDSET
HANDSET
Small
EP
SLAVE
SLAVE
MASTER
323002
HANDSET
323008
HANDSET
HANDSET
Small
EP
SLAVE
SLAVE
MASTER
323002 323010
