SONORA - CARATTERISTICHE GENERALI
36
VIDEO DOOR ENTRY SYSTEM - GENERAL FEATURES
D45
323003 - riser shunt
System accessories overview
1. Configuration using physical configurators
There are 3 configuration methods using physical
configurators: mode 1, mode 2 and mode 3. The user can
choose one of them according to the complexity of the
system. The 10th bit is used to mark the mode used. For
the details please see the system configuration chapter.
2. Configuration by COM
Use an appropriate cable to connect this device to a
PC and enter all the configuration information for this
device using the configuration tool installed on the PC.
3. Configuration using the pushbuttons
n Enter conguration status: in standby press input key S2
and hold for 2 s. The CFG light will be always on. Enter
conguration setup status.
n Enter the conguration number (i.e. select one
congurator): press S2 to count. Each pressure will
increase the number by one (no press= 1st one) and the
CFG light will ash once.
n Conrm the conguration number: press S1, the CFG light
ash quickly twice. Then it will come on steady.
n
Enter conguration parameter: press S2, the default
parameter is 0. Increase by 1 with each pressure. The CFG
light will ash quickly twice . The highest number possible
is 9.
n Conrm the conguration parameter: press S1, the CFG
light will ash quickly twice and then ash slowly twice at
the same time. Then the conguration procedure for this
step is now completed.
n Set next parameters: if necessary, set the other
conguration parameters, press S2. The CFG light will
ash quickly 3 times. Then proceed according to (2).
n Complete the conguration: press S1 to exit conguration.
The CFG light will be o.
n If the operation is successful, the CFG light will ash slowly
once, and then come on steady. If the conguration is not
successful, the CFG light will be o.
For example: conFigure cF4 as 5
1. Enter configuration status: in standby press input key S1
and hold for 2 s.
2. Enter the configuration number: press S2 3 times.
3. Confirm the configurator number: press S1.
4. Enter the configuration parameter: press S2 5 times.
5. Confirm the configuration parameter: press S1.
6. Complete the configuration: press S1 to exit
configuration.
conFiguration enquiry
1. Enter configuration status: in standby press input key
S1 and hold for 2 s. The CFG light will come on and the
device will switch to configuration enquiry status
2. Enter the configurator number (i.e. select one
configurator): press S2 to count. Each pressure will
increase the number by one (no press= 1st one) and the
CFG light will flash once.
3. Confirm the configuration parameter: press S1, the CFG
light will flash quickly a number of times. This number
of times depends on the parameters being read (for
example, if the parameter read is 0, there is no flashing,
for one it will flash once, for two it will flash twice). Other
operations may be deducted by analogy.
4. Exit configuration enquiry status: The CFG light will be
off. If no key is pressed for 10 s during the operation the
device will automatically switch to standby. The CFG
light will be off.
5. If there are 323011 in system or Switchboard be install
in riser then need additional configuration in riser shunt
as listed below :
These configuration only can be set by SF2 configuration
software or by keyboard.

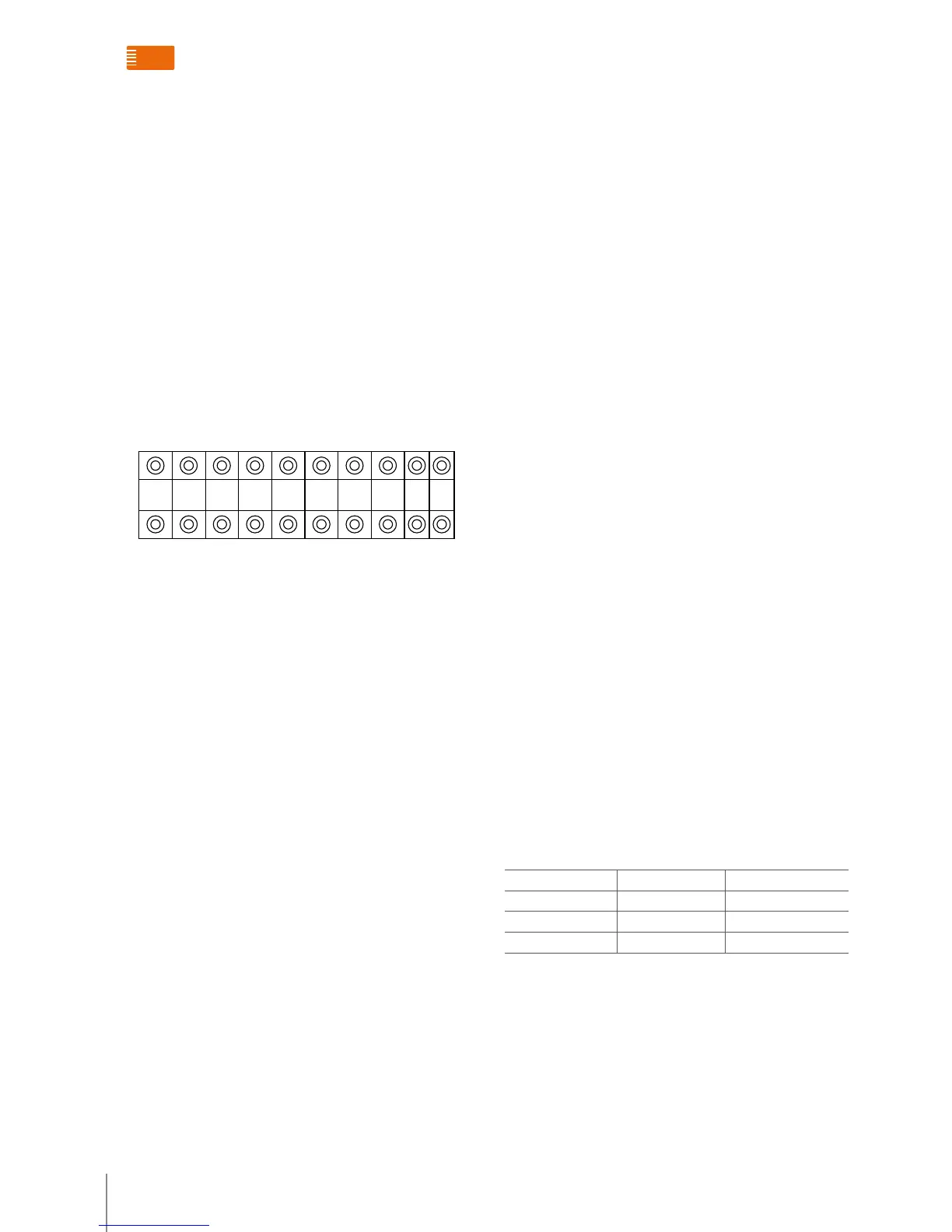

CONFIGURATION SLOT
Denition Remark
CF11 CF12
First EP number in this riser From 1 to 80
CF13 CF14
Riser EP quantity of riser
CF15 CF16
Riser Switchboard number From 1 to 15
CF1 CF2 CF3 CF4 CF5 CF6 CF7 CF8 C M
