D45 VIDEO DOOR ENTRY SYSTEM
323001 - switchboarD
Switchboard
The Switchboard is the core of the network system
intelligently managed residential apartment blocks. It
is based on 32 bit embedded CPU and FPGA platform
technology with high resolution 7“ digital LCD. The device
can manage not only the local computerised Switchboard
system, but can also be linked by LAN to other computerised
Switchboard for the management of larger systems. The
Switchboard is able to communicate with handsets, EPs and
other Switchboards with colour display, can record alarms
and call event. It can make calls using shortcut key, perform
cycle monitoring, call forwarding and the main Switchboard
own functions. It’s capable of saving thousands of calls and
alarm records. It provides quick message retrieval according
to handset address.
legenD:
1. Handset
2. Screen
3. Confirm key
4. Left key
5. Up key
6. Right key
7. Down key
8. Return key
9. Call key
10. Door lock release key
11. Address Book
12. Monitor key
13. Handsfree
14. SOS Indicator
15. Communication indicator
16. Digital keyboard
17. User-defined Key F07 – F12
18. User-defined Key F01 – F06
19. Loudspeaker

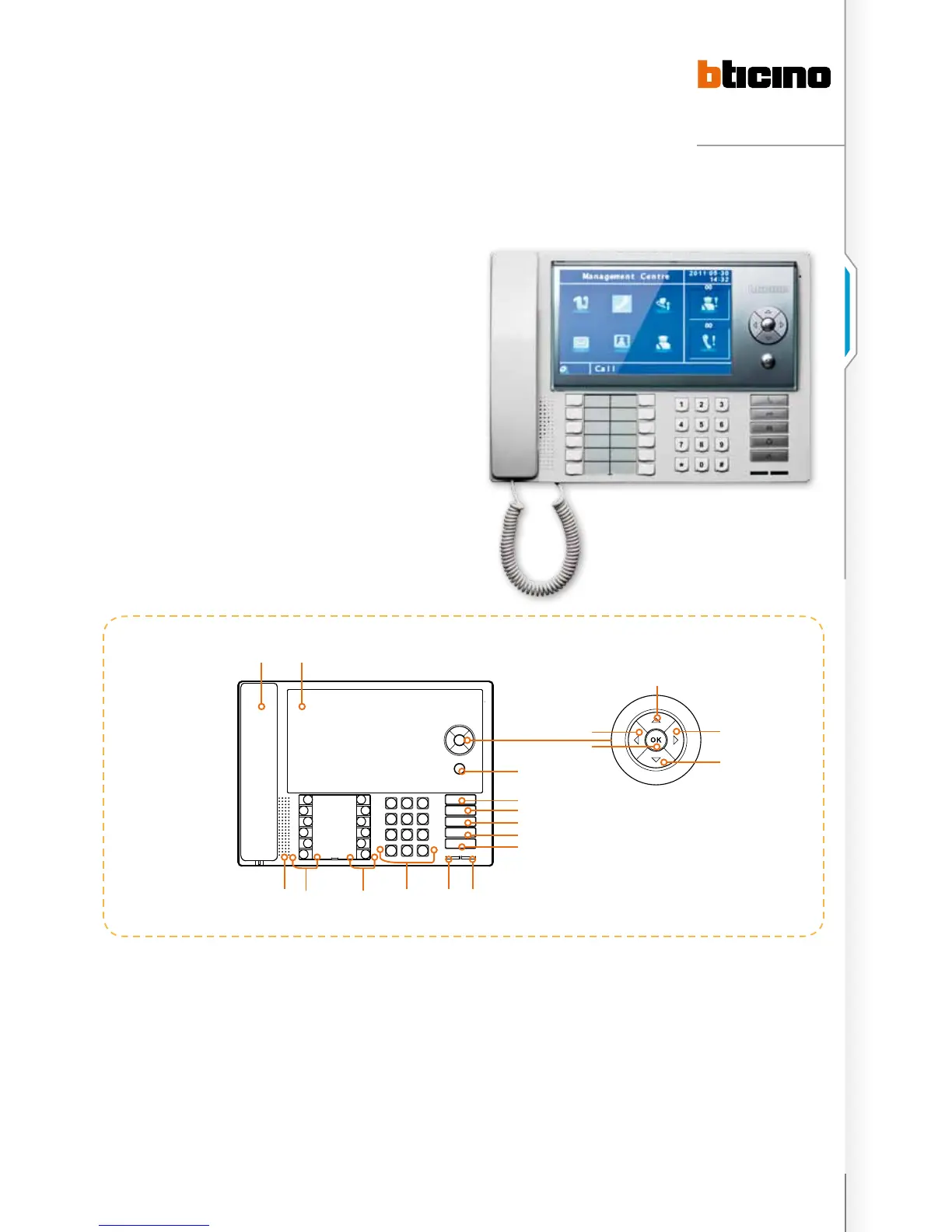

Switchboard overview
1 2
5
7
4 6
3
8
10
9
11
12
13
141519 18 17 16
