D45 VIDEO DOOR ENTRY SYSTEM
Small colour entrance panel
322020 small ep
Independent video door phone set, which should be
installed by the apartment door. Aluminium alloy panel
brings luxury and a classic look; touch tone pushbuttons
with stable performance; for calling and communicating
directly with handsets. Colour camera.
instructions
1. Press “call”, the handset will ring and display the picture
through the camera of this device. Pick up the receiver of
the handset, to start conversation.
2. SPK and MIC adjustments at the back of the Small EP
could be used to adjust the volume of this device and
the handset.
3. Small EP cannot be installed with the camera directly
facing the sun.

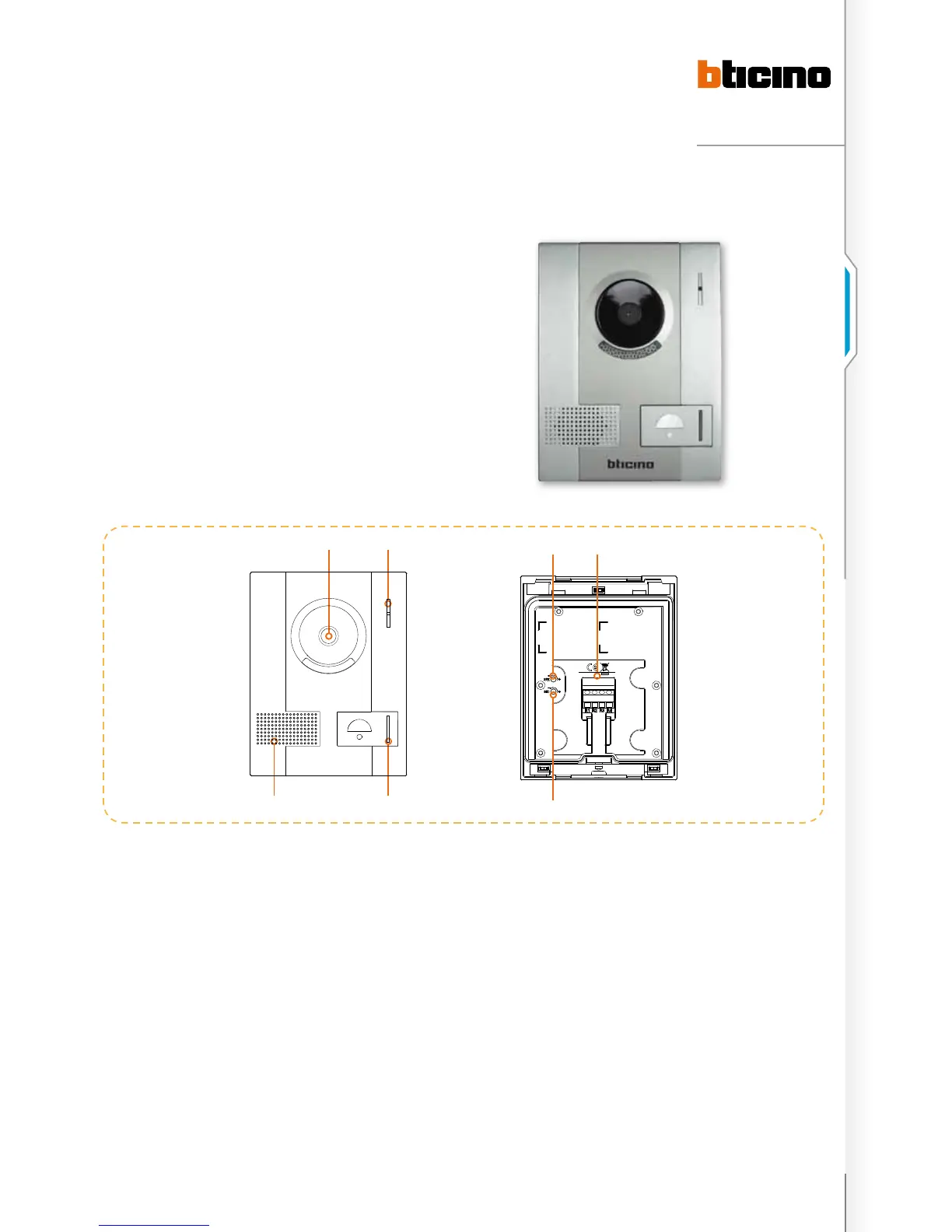

legenD
1. Camera
2. Microphone
3. Call key
4. Loudspeaker
5. SPK: to adjust the volume of sound coming from the
handset to this device
6. R1: to connect the R1 terminal of the handset
R2: to connect the R2 terminal of the handset
R3: to connect the R3 terminal of the handset
R4: to connect the R4 terminal of the handset
7. MIC: to adjust the volume of sound coming going this
device to the handset
4 3
21
5
7
6
