SONORA - CARATTERISTICHE GENERALI
52
VIDEO DOOR ENTRY SYSTEM - GENERAL FEATURES
D45

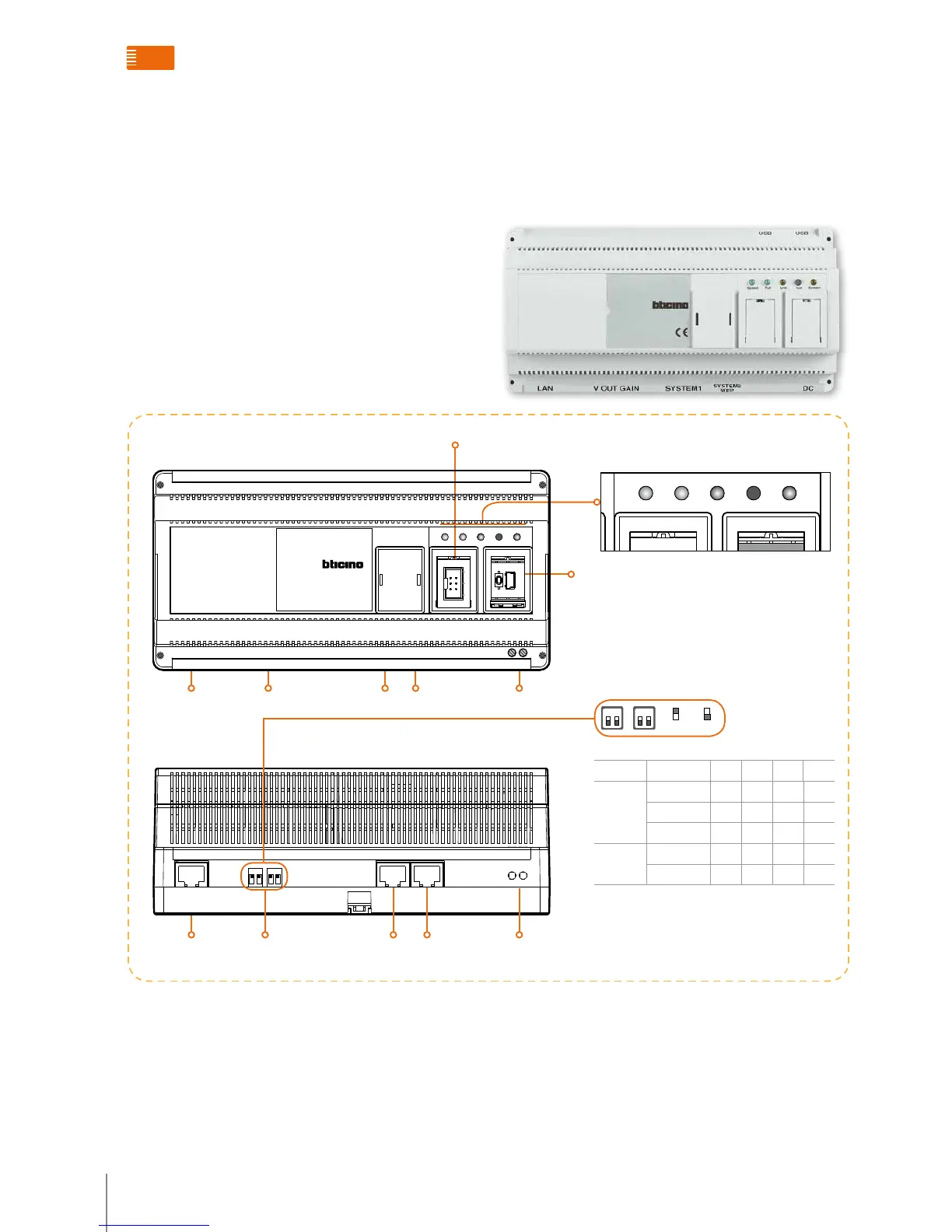

1. LAN: network interface, used to connect the Ethernet
to the system network. It can also download the
configuration, read the configuration and update the
programs through the Ethernet.
2. V-OUT GAIN: switch to adjust the video gains, which can
be adjusted as per the actual video effect.
3. SYSTEM 1: system bus interface 1, to connect to the Riser
shunt.
4. SYSTEM 2/main EP: system bus interface 2, used to
connect the main EP.
5. DC: 30V power input port, no positive or negative
difference.
6. USB interface: used to download the configuration, read
the configuration and update the programs.
7. Serial port: used to download the configuration, read the
configuration and update the programs.
D45/IP interface
323011 - D45/ip interFace
323011 is an IP interface that can be connected to the D45
system and the BT 2-wire IP system. It ensures compatibility
with the D45 system and BT 2-wire system.
1 532
6
7
4
F453AV
0319 06
USB USB
ETH DC
SCS
AV IN
SCS
AV
SCS
AV OUT
SCS
AI
Speed Full Link Aux System
346890
0319 06
USB USB
ETH DC
SCS
AV IN
SCS
AV
SCS
AV OUT
Speed Full Link Aux System
Speed: Connection; ON = 100 Mbit; OFF = 10 Mbit
Full: ON = full duplex, OFF = half duplex
Link: ON indicates the presence of the Ethernet network
Aux: Push-button not used
System: When connecting, it turns on and off and turns
back on when the interface is functional.
System accessories functions overview
LAN SYSTEM1
SYSTEM2
WEP
DCV OUT GAIN
Speed Full Link Aux System
323011
34 12
1 532 4
LAN SYSTEM1
SYSTEM2
WEP
DCV OUT GAIN
Speed Full Link Aux System
323011
34 12
DIP switch setting instruction
Distance 1 2 3 4
COLOUR
SIGNAL
0 – 300 m OFF OFF OFF OFF
300 – 700 m ON OFF OFF OFF
700 – 1000 m ON ON OFF OFF
B/W
SIGNAL
1000 –1500 m ON ON ON OFF
1500 – 2000 m ON ON ON ON
The instruction data in the above table are
suggestions for the B/W signal. It may be
different during actual operation. Please
take actual image effect to adjust and set.
4 3 2 1
on oFF
legenD
