86
VIDEO DOOR ENTRY SYSTEM - INSTALLATION RULES
D45

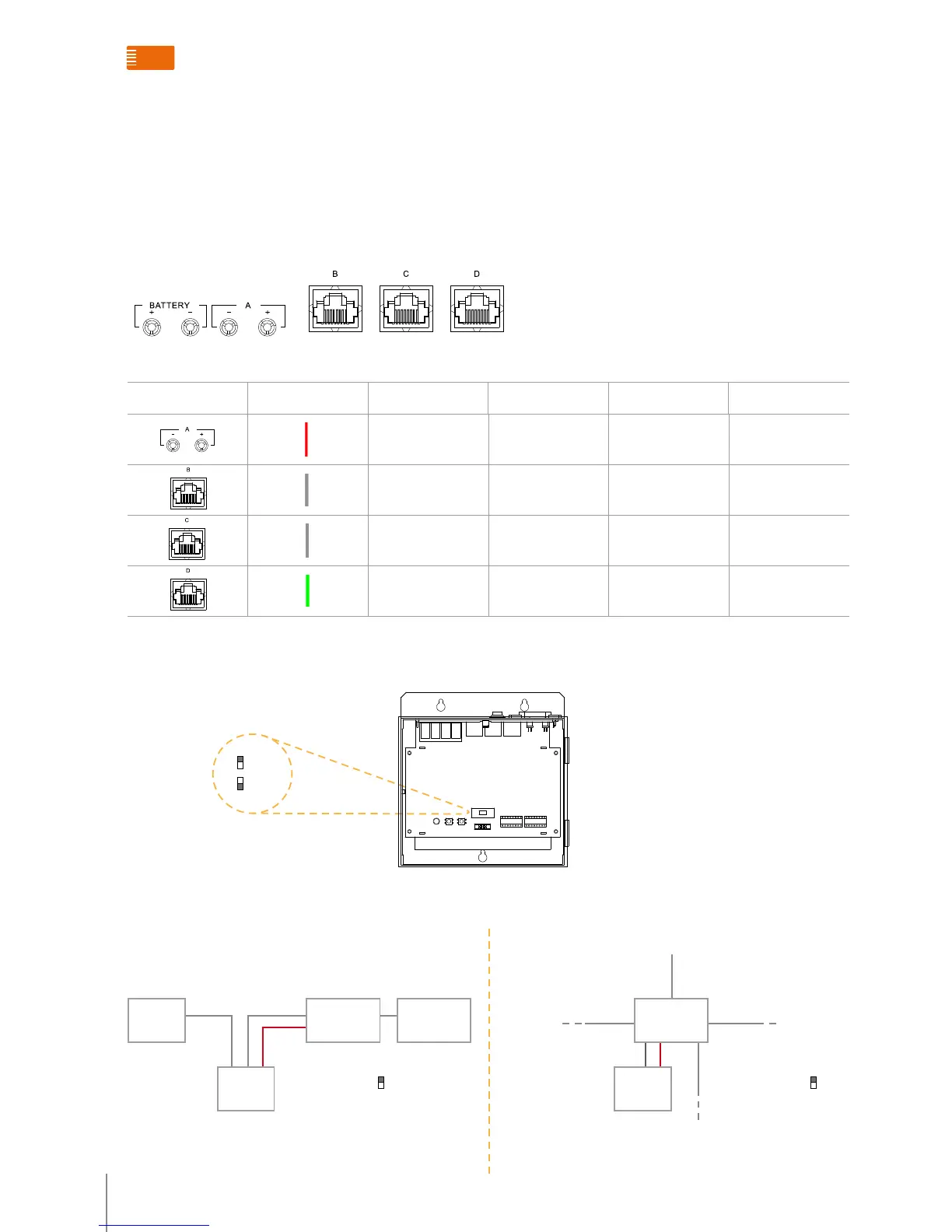

connection anD setup proceDure For 323005
(Set 323005 as system power supply)
Connector for 323005
Difference for each connector
LINE
COLOUR
POWER
CONNECTION
VIDEO
CONNECTION
AUDIO
CONNECTION
DATA
CONNECTION
Impedance switch
1) When there is no riser shunt in the system , the system
power supply should be connected and set as following
drawing:
2) When there is riser shunt in the system , the system power
supply should be connected and set as following drawing:
323002 323002EP
323005
B C A
on on
on
oFF
To riser
Secondary EP
323005
D A
Backbone
323003
Power supply
323005
Power supply installation rules
