D45 VIDEO DOOR ENTRY SYSTEM
322050 - colour hanDsFree 7”

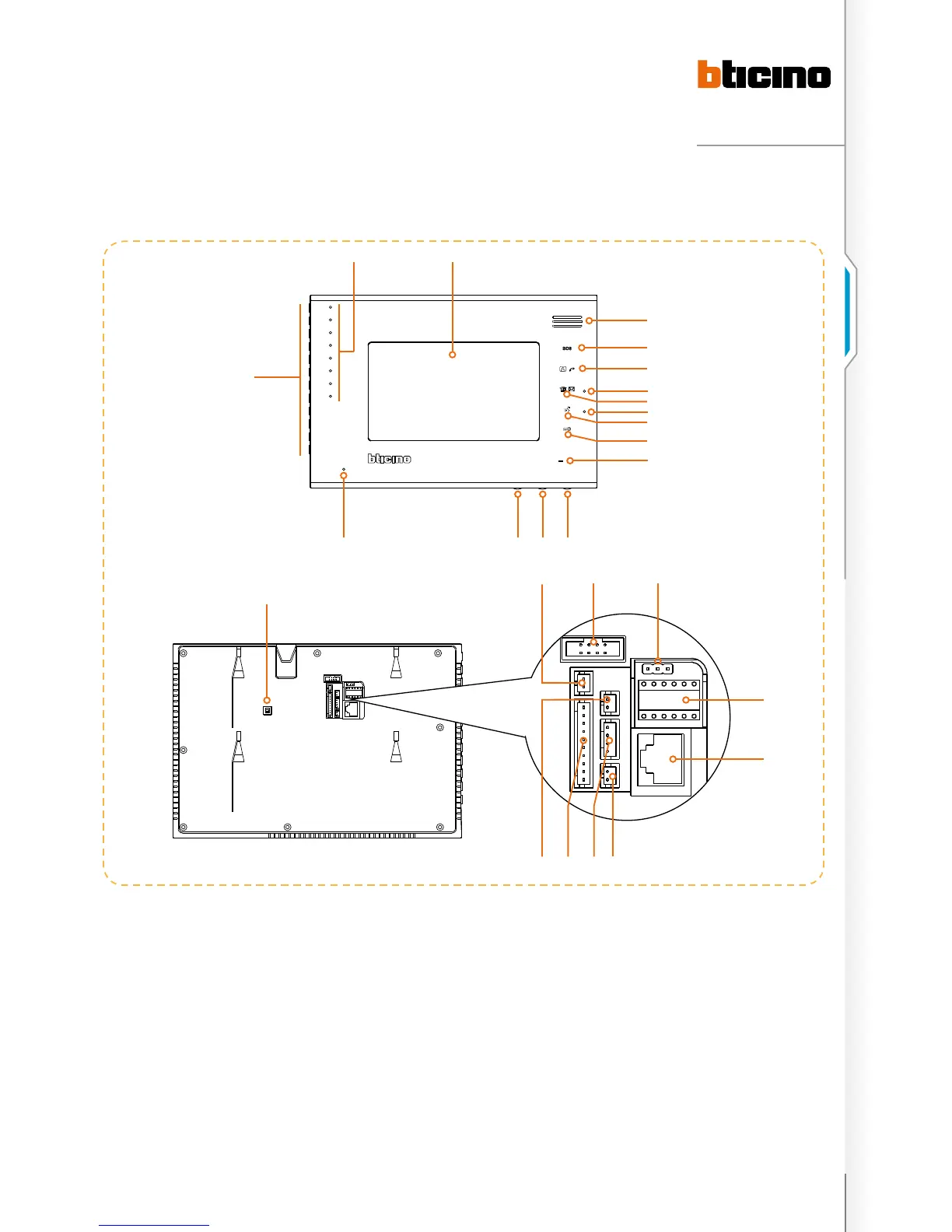

legenD
1. Loudspeaker
2. SOS key
3. Monitor key
4. Information LED
5. Switchboard call key
6. Communication LED
7. Answer key
8. Unlock key
9. Shortcut key
10. Color control knob
11. Brightness knob
12. Ring volume control knob
13. Microphone
14. Number keys and corresponding numbers
15. Alarm zone LEDs 1 to 8
16. Display screen
17. Anti removal switch
18. Master and Slave pin selection
19. Configurators socket
20. BUS connector
21. SOS alarm connector
22. SEP (322020) connector
23. Alarm sensors connector (see Wiring diagram 15)
24. Door lock interface (323015) connector
25. Anti-removal sensor connector
26. Serial interface connector
1
2
3
4
5
6
7
8
9
10
*
#
14
10
1
2
3
4
6
5
7
8
9
12 1113
15 16
1
2
3
4
5
6
7
8
9
10
*
#
17
18
19
20
21222324
2625
