District generator
323013 - District generator
323013 is the district hub that can be connected with 4
district riser shunts, 1 wall EP connector, 1 Switchboard
connector and 1 main system power connector. It’s used
to create large networks. Can be connected in cascade to
extend to 16 district branches. The maximum level of cascade
connection is 1. When installed as part of the system, the
device controls and changes video channel, and provides
amplifying compensation for video signal. The video gains
of each Riser shunt district branch can be set separately.

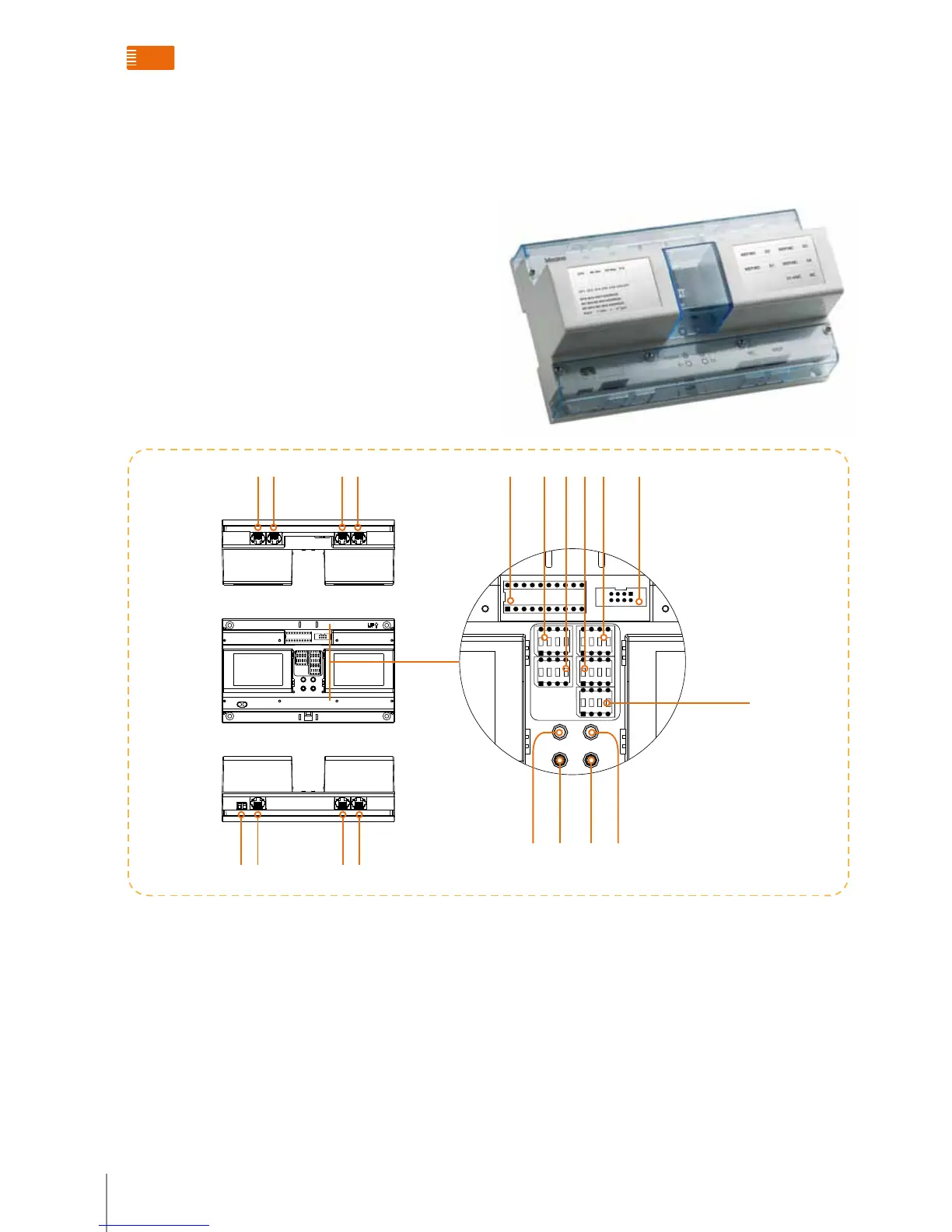

legenD
1. POWER: Input connector main system power supply
2. POWER: Input connector main system power supply
3. Switchboard: Connector for Switchboard
4. Main EP: Connector for wall EP
5. D1: Riser shunt branch 1
6. D2: Riser shunt branch 2
7. D3: Riser shunt branch 3
8. D4: Riser shunt branch 4
9. Configurators socket
10. Adjust switch for branch 2 video gain
11. Adjust switch for branch 1 video gain
12. Adjust switch for branch 4 video gain
13. Adjust switch for branch 3 video gain
14. Serial interface connector for upgrading the software
and connecting the PC
15. Adjust switch for WEP or message release to indoor unit
channel video gain
16. CFG: Indicator light for configuration by pushbutton
17. S2 Key
18. S1 Key
19. POWER: Indicator light
15
18 1619 17
2 41
5 97 11 126 10 13 148
3
