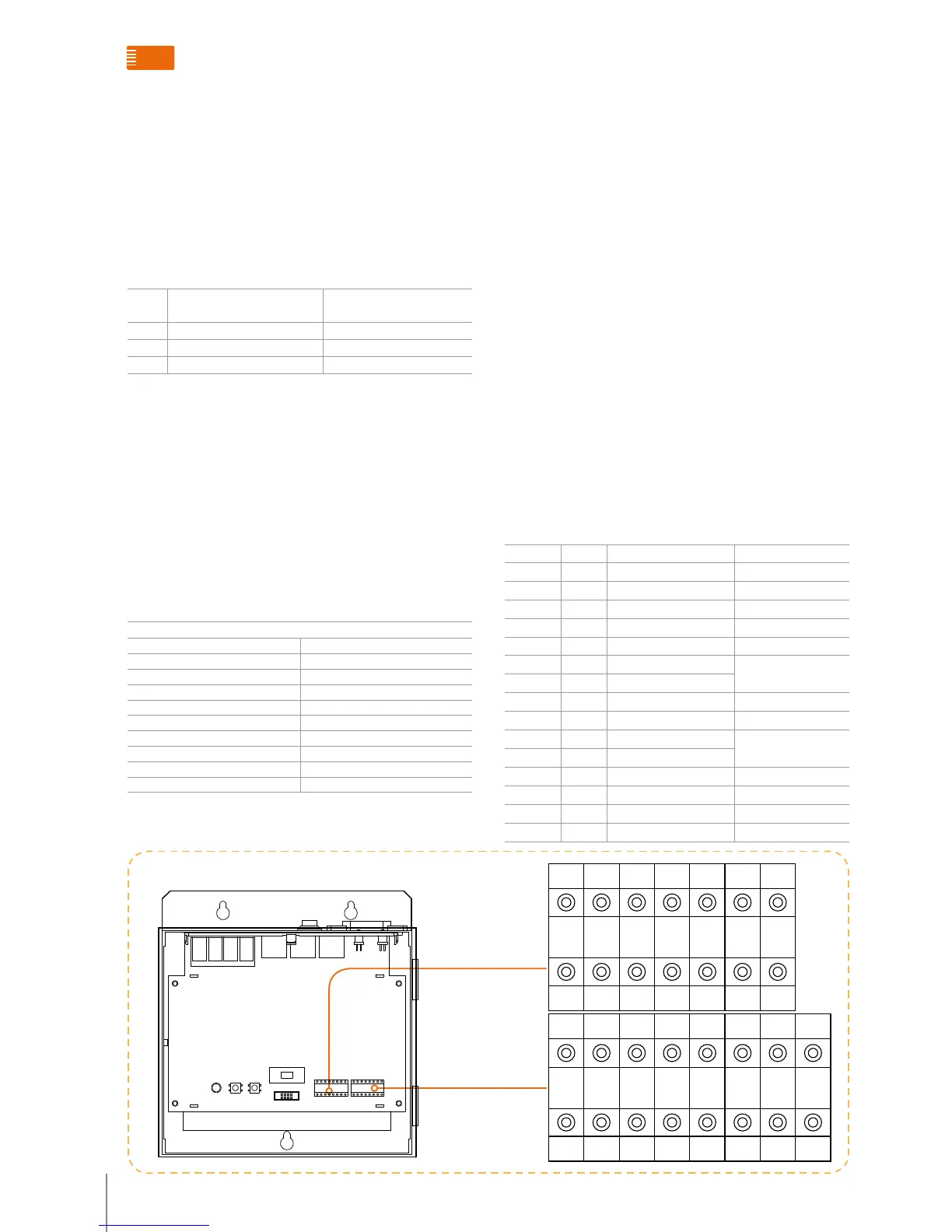

Bticino D45 Technical Guide

114
VIDEO DOOR ENTRY SYSTEM - CONFIGURATION
D45
a
N N N CF4 CF5 CF6 CF7
N N N
FF
min
FF
min
#I #I
0 1 2 0 1
CF8 CF9 CF10CF11 TYP ASR M LE
FF
max
FF
max
TYP ASR M LE
0 2 1 0 0 0
TYP: configuration position for the power supply
function(√means that this function is available, X means
that this function is not available)
TYP POWER SUPPLY
MANAGEMENT FUNCTION
SMART POWER FUNCTION
0 × ×
1 √ √
2 × √
Power supply management:
In the systems with a standby battery (optional), in case of AC
power cut the handset will automatically enter energy saving
mode, saving energy for the alarm function. For systems with
alarm function and standby battery it is recommended that
the power supply management is kept on.
Smart power supply:
This allows the max quantity of working small EP when
power is supplied normally. For projects including small EP,
we suggest that the power supply is used as auxiliary power
supply and that the smart power supply function is kept on.
When type=0, no configuration is necessary.
ASR: alarm sinking reserve of each apartment supplied by the PS
ASR = ALARM SINKING RESERVE OF EACH APARTMENT SUPPLIED BY THE PS
0 300 mA (Default (Max))
1 0 mA
2 50 mA
3 85 mA
4 120 mA
5 150 mA
6 180 mA
7 210 mA
8 240 mA
9 270 mA
LE: configuration position for smart power supply function.
This position controls when to enter energy-saving mode
under different situations.
0 AC is not an not energy saving
1 AC is not an not energy saving
NOT energy saving: all the system functions are allowed.
This mode is not Energy saving. Energy saving: parts of the
system functions (such as video) are disabled in order to
save energy.
Example (A):
This riser has 20 floors, and each floor has 4 handsets. This
power supply manages 1-2 floors. If necessary enable the
smart power function and power management function,
the power supply address is 12, the max current of the alarm
sensor is 300 mA. System configuration mode 1 is used. The
power supply configuration should be as follows:
POSITION MODE 1 VALUE FOR CONFIGURATOR REMARKS
CF1 N 0
CF2 N 1
CF3 N 2
CF4 FF Min 0
CF5 FF Min 1
CF6 #II
Default is 4 apartments.
0 means 4 apartments0.
CF7 #II
CF8 FF Max 0
CF9 FF Max 2
CF10 CF10
For mode 1 and mode 2, CF10
and CF11 do not apply
CF11 CF11
CF12 Type 1
CF13 ASR 0
CF14 M 0
CF15 LE 0
323005 - power supply conFiguration
Accessory configuration examples
