The data given for the settings in the above table is only for
reference. In actual situations, some deviation may occur.
Therefore, we need to adjust the settings according to the
actual image requirements during installation.

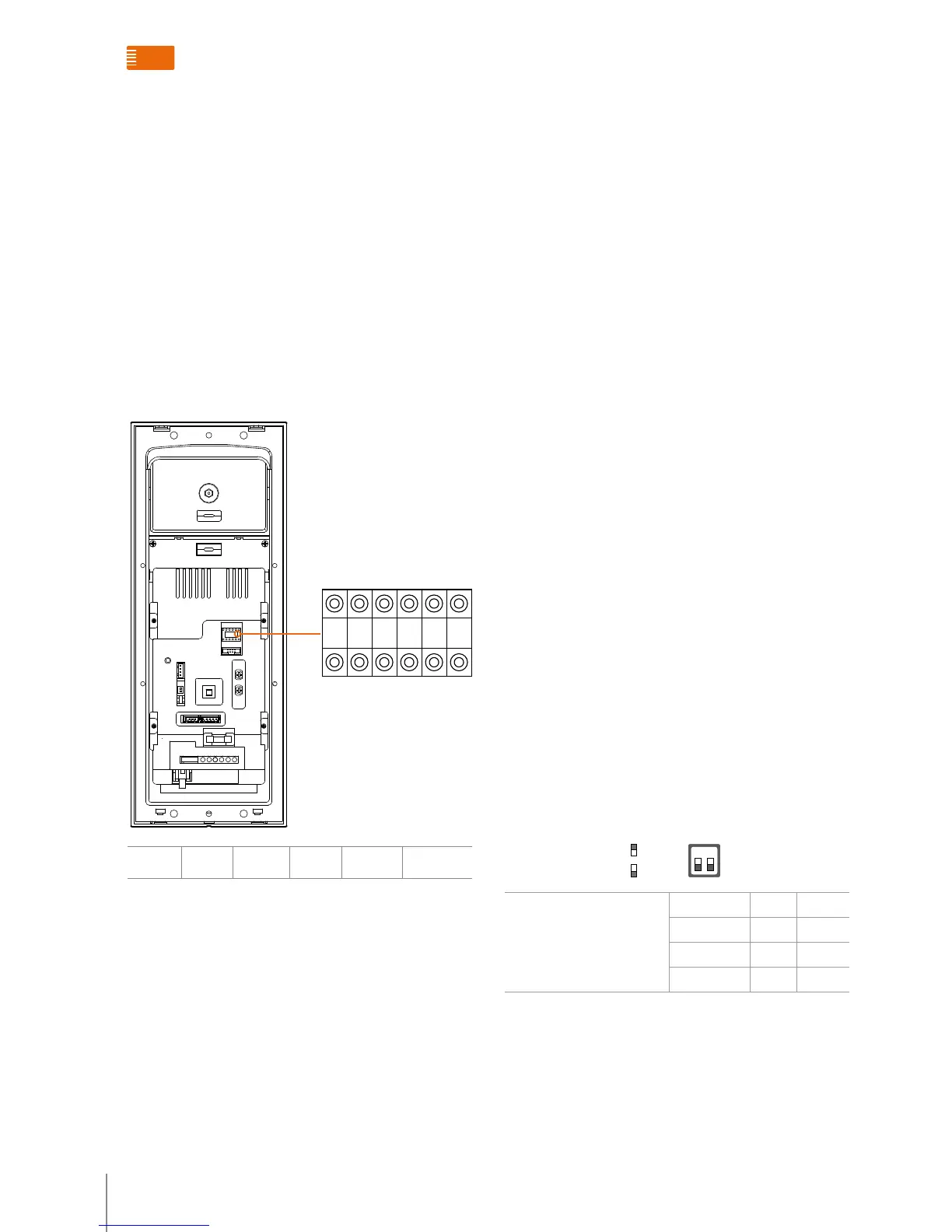

Entrance panel functions overview
conFigure the ep parameters
The configuration parameters for the EP can be set either
through Item 5 in the function settings under the LCD
interface, or by means of the configurator. The latter is of
high priority, but it will need repowering each time the
resistance is replaced, as can be shown in the following
diagram:
NN refers to the EP address, #FF refers to the floor number
and #II refers to the maximum number of rooms in each
floor.
N
(Tens Place)
N
(Units Place)
#F
(Tens Place)
#F
(Units place)
#I
(Tens Place)
#I
(Units Place)
Photosensitive function
When natural light falls below a certain degree, the stand-by
light compensation LED tube will come on to compensate for
the light. So even in dim light, users will be able to perform
the necessary. With the light compensation function the
visitors can be identified at a distance of up to 400 mm.
Volume adjustment
MIC: to adjust the output level of the microphone.
SPK: to adjust the volume of the speakers.
When used as (Backbone EP or main EP), it can download
the address book using the computer.
Online update of programs
It can download or update the software through the ISP
port, no need to open the cover.
Points to consider when adjusting the camera:
When adjusting the head up or down, the angle can’t be too
wide, or vignetting may occur.
Points to consider when installing the electric door lock
release of the entrance panel:
The electric door lock released controlled directly by the
entrance panel is a positive door lock release powered at
DC 12 V, with a control power source of ≤1 A. For other lock
types, door lock release item 323015 must be used.
n Adjust the volume of the loudspeakers
n Adjust the volume of the microphone
n Anti-removal alarm open &close function
n Camera Socket
n Adjustment switch for video gains and to adjust the video
signals up and down
n Setting pushbutton
n Signal interface of door lock status
n Connect the power or the door lock release
n EP address congurator
n Connect with CAT5 cable line to the system
The entrance panel has two video compensation gears. By
setting the different V-GAIN gears , we can adapt the video
signal output from the entrance panel to the different
transmission distances. Directions for the setting: On for
moving up and Off for moving down.
1 2
on
oFF
DIP SWITCH SETTING INSTRUCTION
FOR B/W AND COLOUR
INSTALLATION
Distance 1 2
0 – 300 m OFF OFF
300 -700 m ON OFF
700 – 1000 m ON ON
N N #F #F #I #I
