49
D45 VIDEO DOOR ENTRY SYSTEM
Note: the above power supply belongs to the unit system power and is commonly
used with the Riser shunt, if there are no other requirements. Users can also
connect an external DC18V~30V/2A power transformer for separate door lock
accessory power supply. Device item 323010 is the auxiliary power supply for
the EP (sometimes, when there are several EPs in one unit, or if the main EP lines
are too long, auxiliary power sources are needed). The door lock accessory can
either be connected to this power source or to the external DC18V~30V/2A power
transformer.

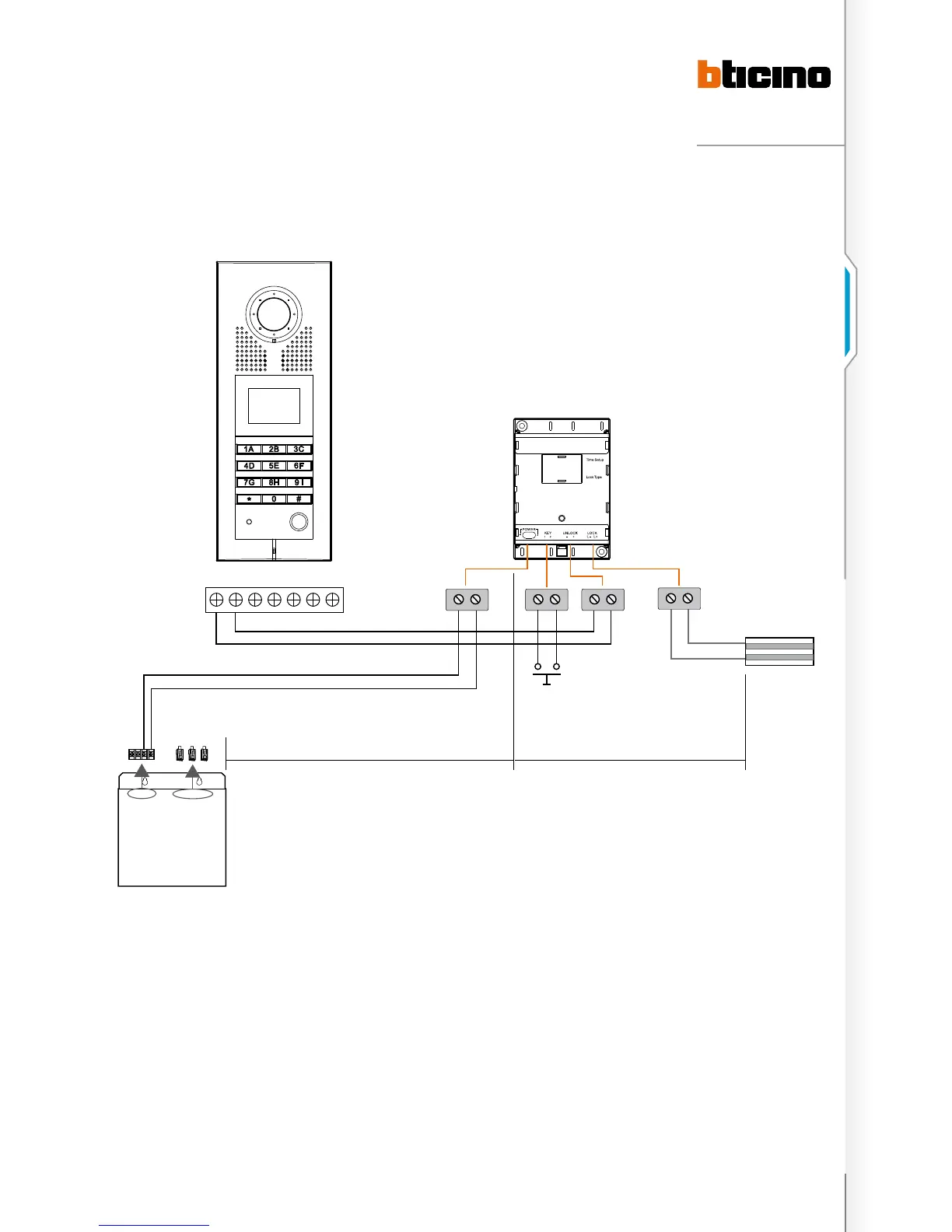

Example: Typical Wiring of the door lock accessory
PWS
Limit distance ≤ 250 m
Limit distance ≤ 20 m
Manual pushbutton
Line specification RV V2 x 1.0 mm
2
323010
323005
323015
322010
Electronic lock
Line specification RV V2 x 1.0 mm
2
L+ L–
– + – +
L– L+
To Next Page
