148
VID
EO DOOR E
NTRY S
YSTE
M -
WIRING DIA
GR
AMS
D45
Diagram 1
1
2 layer
District generator with several
ep connections
W
iring diagrams
T
o Risers block 2
T
o Risers block 3
323013
323010
323010
323010
323010
323010
323010
323005
323004
T
o Risers block 1
0
T
o Risers block 4
323001
EP
EP
EP
EP
EP
149
151
Table of Contents
Table of Contents
3
D45 System Introduction
4
Products List and Main Features
5
Entrance Panel Functions Overview
6
322010-Digital Entrance Panel Colour
6
Features
6
Entrance Panel Parameter Configuration
7
Legend
7
322010 Digital EP Call by the Visitors
8
Alarm for Overtime Door Opening
9
Alarm for the Distress Code
9
Open the Locks by Password
9
Call Transfer
9
322010 Digital EP Set the Functions
10
Configure the EP Parameters
12
Photosensitive Function
12
Volume Adjustment
12
322020 Small EP
13
Instructions
13
Indoor Handset Functions Overview
14
Video Handsets Functions
14
Functions and Features
14
322050-Colour Handsfree 7”
15
321010-Colour Handsfree 5.6”
16
321030-B/W 4” Handset
17
321020-B/W Handsfree 4”
18
Handsets User Settings
19
Reset User Password
19
Video Door Entry Functions
20
Receiving Calls
20
Handset Monitoring Other Devices
20
Calling Other Devices
20
Door Lock Release
21
Anti-Removal Alarm
21
Sos Alarm
21
Alarm Operation and Alarm Sending
21
Setting the Number of Apartments Per Floor
22
Installation Instructions (for the Installer)
22
Brightness and Contrast or Colour Setup
22
Ring Volume/Silent Mode Setup
22
Master and Slave Settings
23
External SOS Switch
23
Alarm Sensors Connections
23
Anti-Removal Installation for Sensors
23
Installation Setup
24
Troubleshooting
26
322040-Audio Handset Functions
27
Outlook and Connector
27
Installation Notes
27
Installation Settings
27
322040-Audio Handset
28
Setting the Number of Households Per Floor
29
Set External SOS to be NO/NC
29
322040-Audio Master and Slave Handset
30
Recovering All the Default Parameters
31
Exit Installation Setting
31
Timing
32
Mutual Ring Control
32
VDP Priority
32
Switchboard Overview
33
323001-Switchboard
34
Video Gain Setting
34
Main Features
34
Hardware Features
34
Function Features
35
Functions of the Menu Icons
36
System Accessories Overview
37
323003-Riser Shunt
37
DIP Switch Setting Instruction
37
System Configuration Instructions
37
For Example: Configure CF4 as 5
38
Configuration Enquiry
38
323002-Floor Shunt
39
323016-Villa Shunt
40
Typical Wiring Diagram of Villa Shunt. System Wiring Diagram for the Detached Villas
41
System Wiring Diagram of Town Villas
43
323004-Entrance Panels Video Mixer
44
System Accessories Functions Overview
44
323007-2 Branches Video Splitter
45
323008-Basic Apartment Interface
46
323009-Apartment Interface
47
323015-Door Lock Accessory
50
Typical Wiring of the Door Lock Accessory
51
323013-District Generator
52
Configuration Inquiry
53
323011-D45/IP Interface
54
323011 Configuration
55
323019-System Expansion Interface
63
323010 Functions
64
323005 Functions
64
323010-Auxiliary Power Supply
64
Functions of Power Supply Connectors
65
Functions of Connectors Only for 323005
65
323005-Power Supply
66
323018-Ep/Switchboard Shunt
67
Introduction to the Configuration Procedures
68
Introduction to the Configuration Place
68
Meaning of the Configuration Place
68
Configuration Enquiry Methods
69
Typical Wiring of Ep/Switchboard Shunt
70
346858-D45 to 2 Wire Interface
71
Functions of Connectors
71
Wiring Method for 346858
72
323020-Configuration Tool
73
Packing List
73
Installation Rules
75
Entrance Panels and Indoor Handsets Installation
76
Small Ep/Ep/Main EP Installation Height
76
Handset Installation Height
76
Recommendation for the Installation Position of the Small Ep/Ep/Main Ep
76
Entrance Panel Installation
77
Installation Method
77
Small Entrance Panel Installation
78
Do Not Install in Hot or Damp Places
78
System Cable
79
Standard RJ45 Connections for CAT5 Cable
80
RJ45 Wire Map and Connection Method
81
Recommended RJ45 Connector
83
Lock Type and Distance Limits
83
Power Supply Installation Rules
85
Recommended PWS Solution and Related Configuration
87
Connection and Setup Procedure for 323005
88
Difference for each Connector
88
Impedance Switch
88
Connector for 323005 and 323010
90
Power Supply Check and Calculation
91
Type of Handsets
91
Maximum Distance between EP or Handset and Power Supply
92
Riser Shunt-Video Mixer-District Generator
95
Maximum System Limits
95
Entrance Panels
95
Video Limit Distance
95
Cascade Installation Limits of Video Signal
96
Configuration Rules
97
General Configuration Concept
98
Meaning of Configuration
98
Configuration Design
98
Simplified Configuration
98
System Configuration
98
Flexible Configuration
99
Default Behaviour of Apartment Functions
99
System Configuration Modes
100
Configuration Mode for the Whole System
100
How to Choose the Right Configuration Mode
100
Physical Configuration (Installation)
100
322010-Digital Entrance Panel Configuration Possible EP Configuration Modes
101
Meaning of each Configurator Socket Pin
101
322010-Digital Entrance Panel Configuration
102
321010-Possible Handset Configuration Procedure
103
Configurators Position for Handsets
103
321010-Handset Configuration
104
Accessory Configuration Examples
105
Possible Riser Shunt Configuration Procedure
105
Riser Shunt Configuration Position
105
323003-Riser Shunt Configuration
108
323018-Ep/Switchboard Shunt Configuration
109
Directions for Item 323009 Configuration
109
Configurator Position for Ep/Switchboard Shunt
109
323009 Led Indications
109
Code for the Configuration Place
111
Configuration Methods Using the Pushbuttons
111
Methods for Viewing the Configuration
111
Configurators Position for Ep/Switchboard Shunt
112
323005-Power Supply Configuration
115
Possible Configuration Way for Power Supply
115
Configurators Position for Power Supply
115
LE: Configuration Position for Smart Power Supply Function
116
Smart Power Supply
116
Power Supply Management
116
Suggested Power Supply Solution and Related Configuration
119
323013-District Generator Configuration
120
Configurators Position for District Generator
120
Troubleshooting
126
System Topology-Layout Examples
129
System Layout Examples
130
Riser Network Without Switchboard
130
Backbone with Only One Main Ep
130
Backbone with Only One Switchboard
130
Backbone with District Generator
131
Riser with Mixed Installation
132
Basic Apartment Interface Connection
133
Internal Unit Connections
133
Bticino 2 Wire Interface Connection
133
Connection between Audio Handset and Video Handset
133
Riser with Several EP Without Riser Shunt
134
Backbone with Several Main EPS
134
Riser with more than 5 EP
136
2 Branches Video Splitter (323007)
137
Riser with Expansion Interface (323019) to Extend the Number of Handsets
137
Wiring Diagrams
139
Handset Basic Connections
140
323008-Basic Apartment Interface Connection
141
Riser Handsets Connection with Floor Shunt-323002
142
Riser Connection with Several EPS
143
Backbone Connection with 1 Main EP
145
Backbone Connection with 1 Switchboard
146
Backbone Connection with Several Main EPS
147
District Generator 323010 Connection

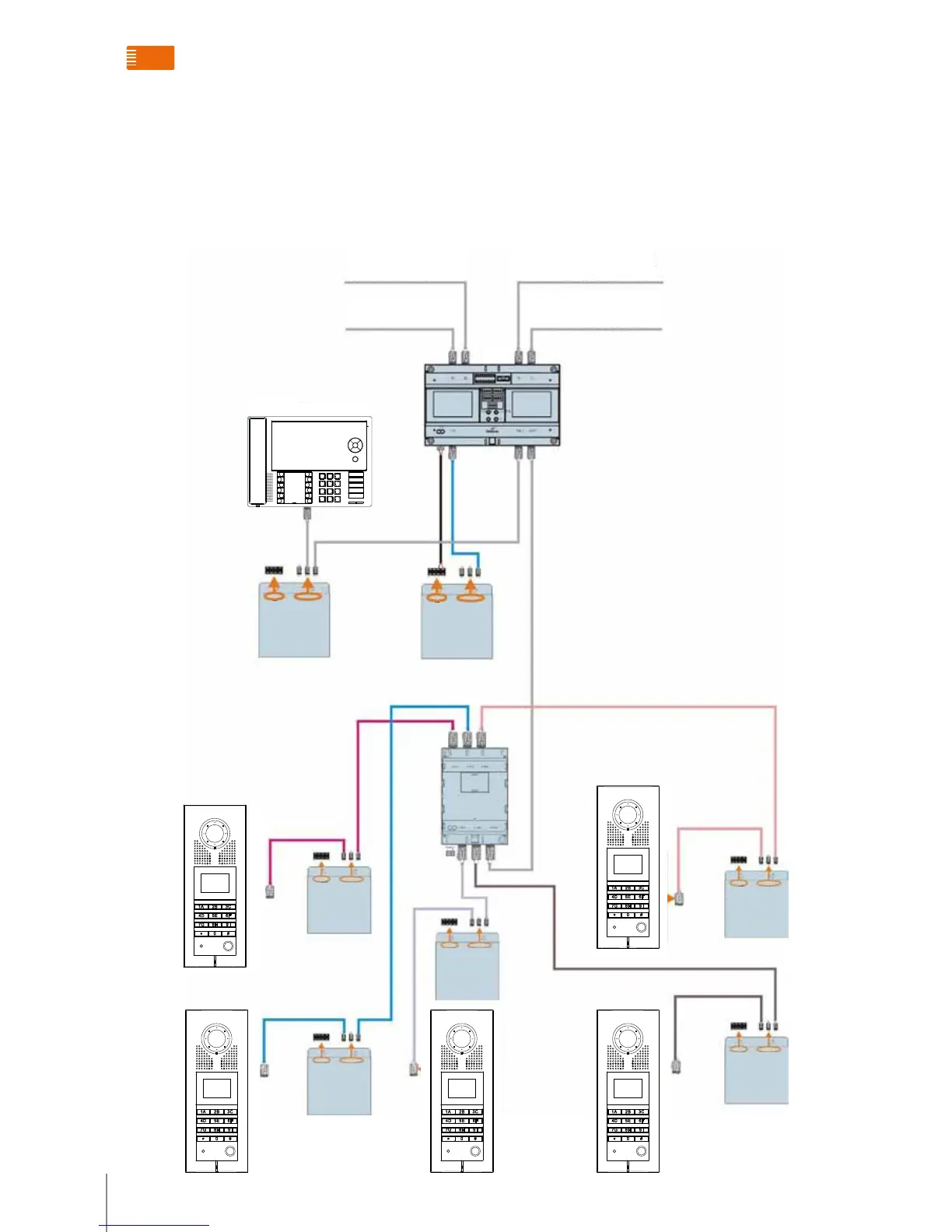

148
2 Layer District Generator Connections
149
2 Layer District Generator with Several EP Connections
150
Riser with 323004-Video Mixer
151
Riser with 2 Branches Video Splitter 323007
152
Riser with Expansion Interface 323019
153
Internal Unit Alarm Sensors Connections
154
Connection Way for NC and no Contacts
154
