D45 VIDEO DOOR ENTRY SYSTEM
When there are two District generator layers in the system, no main EP can be installed on the main EP port of the second DG
layer. It must be made sure that:
main EP number on main EP port of first DG layer < main EP number in first DG layer branch < main EP number in second DG
layer branch.

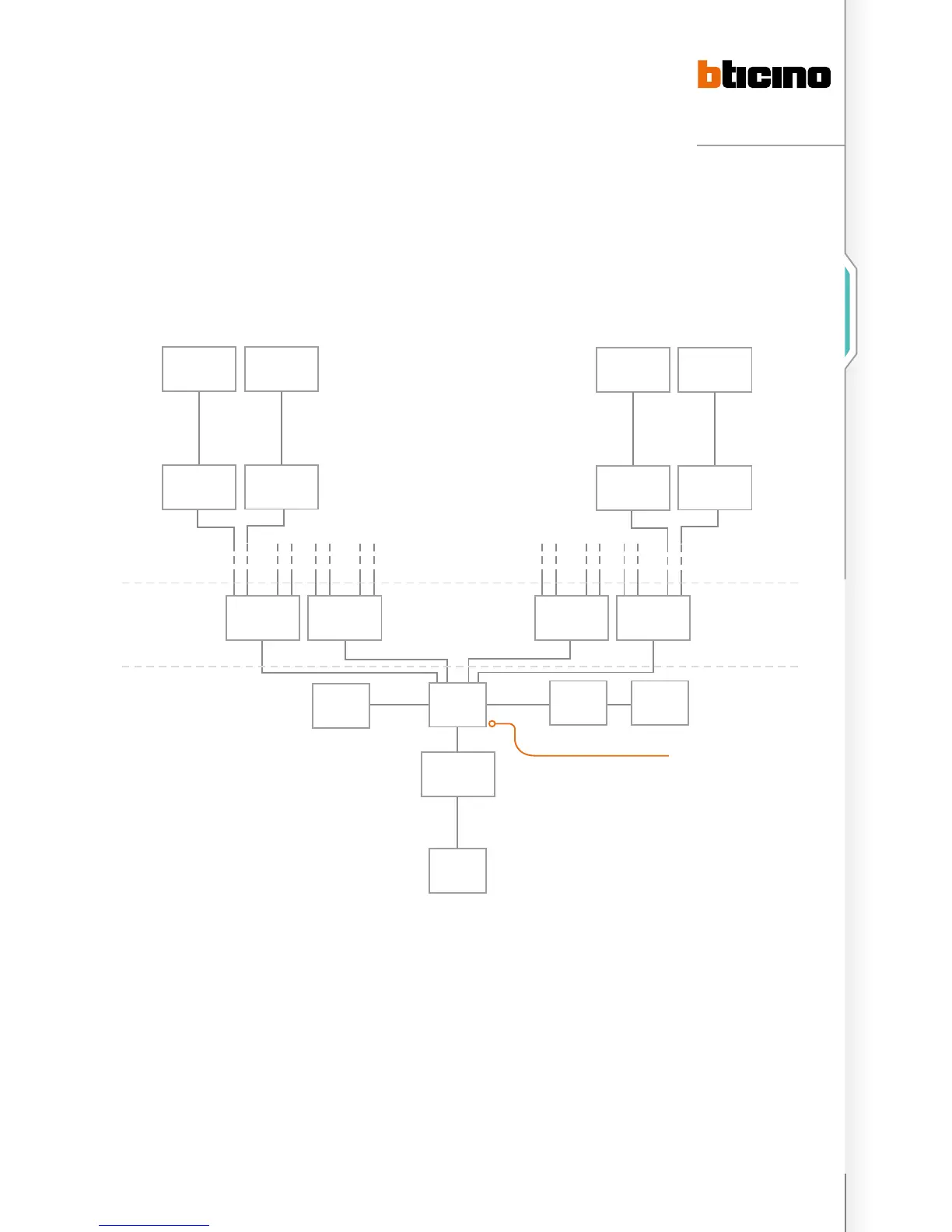

323013 - District generator conFiguration
323013 323013323013
323013
Switchboard
323010
323005
323010
Backbone
main EP
SECONDARY DISTRICT GENERATOR
PRIMARY DISTRICT GENERATOR
323003
323003
323003
323003
323013
323003
323003
323003
323003
