D45 VIDEO DOOR ENTRY SYSTEM
323013 - District generator
Example (A):
Use 323018 to extend the first District Generator and the second District Generator layer MC port to install the main EP and the

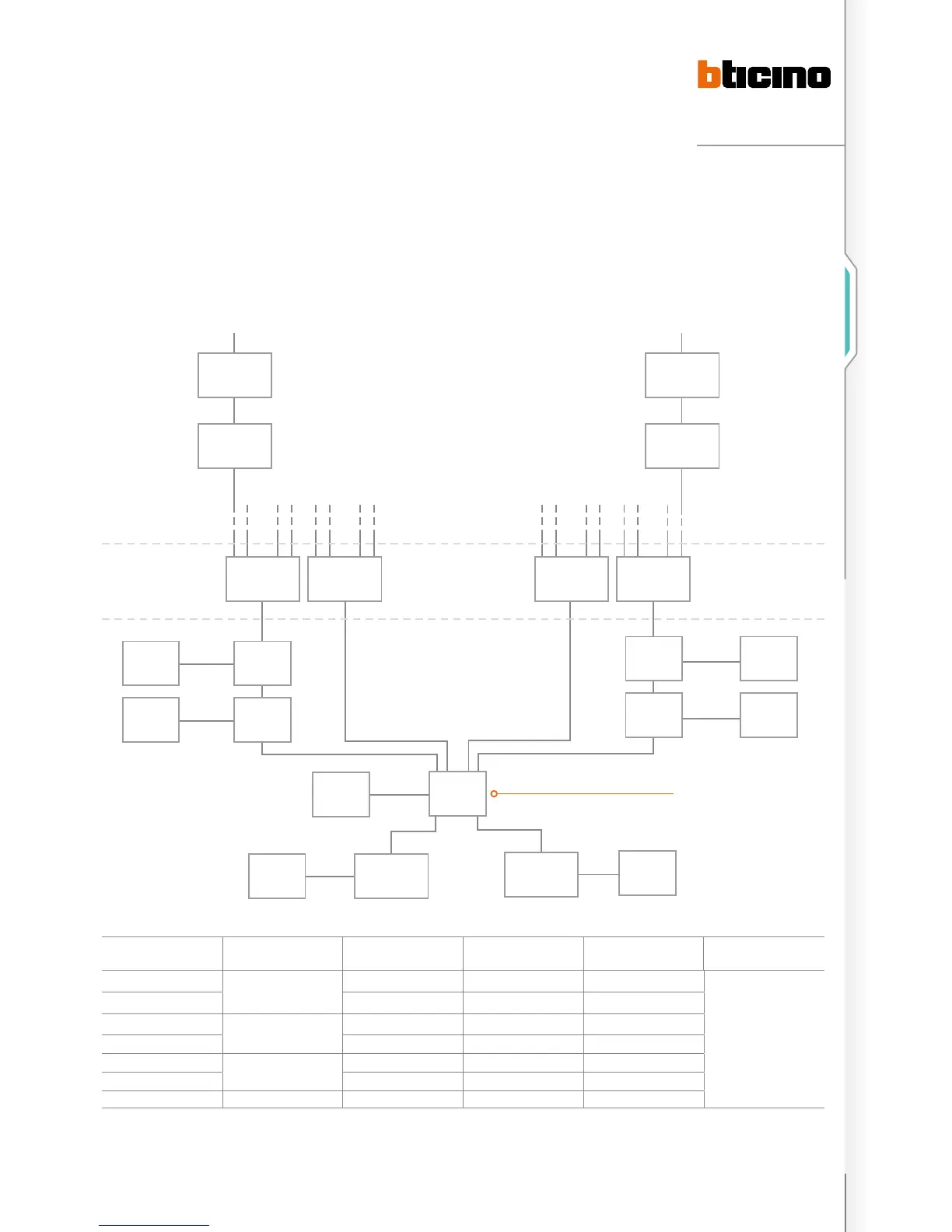

Switchboard. Below diagram 1~3# District generator configuration example:
Position Field Name 1#
DISTRICT GENERATOR
2#
DISTRICT GENERATOR
3#
DISTRICT GENERATOR
Remarks
CF1 EPS 0 0 0 NULL means 0
CF2 1 2 8
CF3 MC Min 0 0 0
CF4 0 0 0
CF5 MC Max 0 0 0
CF6 0 0 0
CF7 P/S 0 1 1
323013
2#
323013323013
323013
1#
323010
323010
323005
323013
3#
323003 323003
323018
323018
323018
323018
Backbone
main EP
#1
Switchboard
#0
323003 323003
Backbone
main EP
#2
Backbone
main EP
#8
Switchboard
#2
Switchboard
#6
SECONDARY DISTRICT GENERATOR
PRIMARY DISTRICT GENERATOR
