VIDEO DOOR ENTRY SYSTEM - INSTALLATION RULES

D45

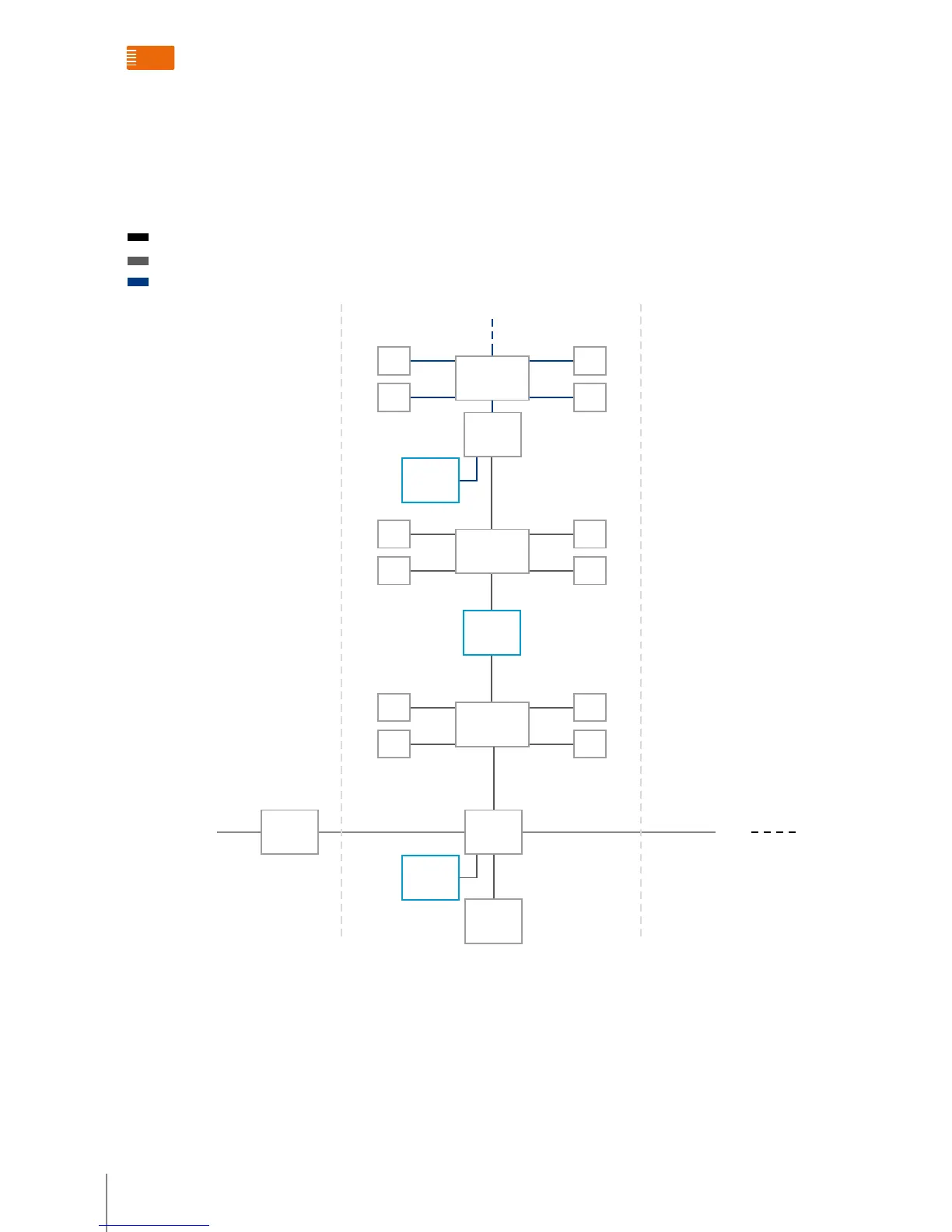

During installation of the system, two power supply solutions can be chosen according to different situations.

One 323005 is needed in the main network area

One 323005is needed in the green area of the unit

One 323005 is needed in the blue area connected to - 323019

legenD

UNIT 1 UNIT 3

UNIT 2

Main network line Main network line

323002

HANDSET

323002

HANDSET

323002

HANDSET

323019

323005

323003

323005

Power supply installation rules

Table of Contents3
D45 System Introduction4
Products List and Main Features5
Entrance Panel Functions Overview6
322010-Digital Entrance Panel Colour6
Features6
Entrance Panel Parameter Configuration7
Legend7
322010 Digital EP Call by the Visitors8
Alarm for Overtime Door Opening9
Alarm for the Distress Code9
Open the Locks by Password9
Call Transfer9
322010 Digital EP Set the Functions10
Configure the EP Parameters12
Photosensitive Function12
Volume Adjustment12
322020 Small EP13
Instructions13
Indoor Handset Functions Overview14
Video Handsets Functions14
Functions and Features14
322050-Colour Handsfree 7”15
321010-Colour Handsfree 5.6”16
321030-B/W 4” Handset17
321020-B/W Handsfree 4”18
Handsets User Settings19
Reset User Password19
Video Door Entry Functions20
Receiving Calls20
Handset Monitoring Other Devices20
Calling Other Devices20
Door Lock Release21
Anti-Removal Alarm21
Sos Alarm21
Alarm Operation and Alarm Sending21
Setting the Number of Apartments Per Floor22
Installation Instructions (for the Installer)22
Brightness and Contrast or Colour Setup22
Ring Volume/Silent Mode Setup22
Master and Slave Settings23
External SOS Switch23
Alarm Sensors Connections23
Anti-Removal Installation for Sensors23
Installation Setup24
Troubleshooting26
322040-Audio Handset Functions27
Outlook and Connector27
Installation Notes27
Installation Settings27
322040-Audio Handset28
Setting the Number of Households Per Floor29
Set External SOS to be NO/NC29
322040-Audio Master and Slave Handset30
Recovering All the Default Parameters31
Exit Installation Setting31
Timing32
Mutual Ring Control32
VDP Priority32
Switchboard Overview33
323001-Switchboard34
Video Gain Setting34
Main Features34
Hardware Features34
Function Features35
Functions of the Menu Icons36
System Accessories Overview37
323003-Riser Shunt37
DIP Switch Setting Instruction37
System Configuration Instructions37
For Example: Configure CF4 as 538
Configuration Enquiry38
323002-Floor Shunt39
323016-Villa Shunt40
Typical Wiring Diagram of Villa Shunt. System Wiring Diagram for the Detached Villas41
System Wiring Diagram of Town Villas43
323004-Entrance Panels Video Mixer44
System Accessories Functions Overview44
323007-2 Branches Video Splitter45
323008-Basic Apartment Interface46
323009-Apartment Interface47
323015-Door Lock Accessory50
Typical Wiring of the Door Lock Accessory51
323013-District Generator52
Configuration Inquiry53
323011-D45/IP Interface54
323011 Configuration55
323019-System Expansion Interface63
323010 Functions64
323005 Functions64
323010-Auxiliary Power Supply64
Functions of Power Supply Connectors65
Functions of Connectors Only for 32300565
323005-Power Supply66
323018-Ep/Switchboard Shunt67
Introduction to the Configuration Procedures68
Introduction to the Configuration Place68
Meaning of the Configuration Place68
Configuration Enquiry Methods69
Typical Wiring of Ep/Switchboard Shunt70
346858-D45 to 2 Wire Interface71
Functions of Connectors71
Wiring Method for 34685872
323020-Configuration Tool73
Packing List73
Installation Rules75
Entrance Panels and Indoor Handsets Installation76
Small Ep/Ep/Main EP Installation Height76
Handset Installation Height76
Recommendation for the Installation Position of the Small Ep/Ep/Main Ep76
Entrance Panel Installation77
Installation Method77
Small Entrance Panel Installation78
Do Not Install in Hot or Damp Places78
System Cable79
- Standard RJ45 Connections for CAT5 Cable80
- RJ45 Wire Map and Connection Method81
- Recommended RJ45 Connector83
- Lock Type and Distance Limits83
- Power Supply Installation Rules85
- Recommended PWS Solution and Related Configuration87
- Connection and Setup Procedure for 32300588
- Difference for each Connector88
- Impedance Switch88
- Connector for 323005 and 32301090
- Power Supply Check and Calculation91
- Type of Handsets91
- Maximum Distance between EP or Handset and Power Supply92
- Riser Shunt-Video Mixer-District Generator95
- Maximum System Limits95
- Entrance Panels95
- Video Limit Distance95
- Cascade Installation Limits of Video Signal96
- Configuration Rules97
- General Configuration Concept98
- Meaning of Configuration98
- Configuration Design98
- Simplified Configuration98
- System Configuration98
- Flexible Configuration99
- Default Behaviour of Apartment Functions99
- System Configuration Modes100
- Configuration Mode for the Whole System100
- How to Choose the Right Configuration Mode100
- Physical Configuration (Installation)100
- 322010-Digital Entrance Panel Configuration Possible EP Configuration Modes101
- Meaning of each Configurator Socket Pin101
- 322010-Digital Entrance Panel Configuration102
- 321010-Possible Handset Configuration Procedure103
- Configurators Position for Handsets103
- 321010-Handset Configuration104
- Accessory Configuration Examples105
- Possible Riser Shunt Configuration Procedure105
- Riser Shunt Configuration Position105
- 323003-Riser Shunt Configuration108
- 323018-Ep/Switchboard Shunt Configuration109
- Directions for Item 323009 Configuration109
- Configurator Position for Ep/Switchboard Shunt109
- 323009 Led Indications109
- Code for the Configuration Place111
- Configuration Methods Using the Pushbuttons111
- Methods for Viewing the Configuration111
- Configurators Position for Ep/Switchboard Shunt112
- 323005-Power Supply Configuration115
- Possible Configuration Way for Power Supply115
- Configurators Position for Power Supply115
- LE: Configuration Position for Smart Power Supply Function116
- Smart Power Supply116
- Power Supply Management116
- Suggested Power Supply Solution and Related Configuration119
- 323013-District Generator Configuration120
- Configurators Position for District Generator120
- Troubleshooting126
- System Topology-Layout Examples129
- System Layout Examples130
- Riser Network Without Switchboard130
- Backbone with Only One Main Ep130
- Backbone with Only One Switchboard130
- Backbone with District Generator131
- Riser with Mixed Installation132
- Basic Apartment Interface Connection133
- Internal Unit Connections133
- Bticino 2 Wire Interface Connection133
- Connection between Audio Handset and Video Handset133
- Riser with Several EP Without Riser Shunt134
- Backbone with Several Main EPS134
- Riser with more than 5 EP136
- 2 Branches Video Splitter (323007)137
- Riser with Expansion Interface (323019) to Extend the Number of Handsets137
- Wiring Diagrams139
- Handset Basic Connections140
- 323008-Basic Apartment Interface Connection141
- Riser Handsets Connection with Floor Shunt-323002142
- Riser Connection with Several EPS143
- Backbone Connection with 1 Main EP145
- Backbone Connection with 1 Switchboard146
- Backbone Connection with Several Main EPS147
- District Generator 323010 Connection148
- 2 Layer District Generator Connections149
- 2 Layer District Generator with Several EP Connections150
- Riser with 323004-Video Mixer151
- Riser with 2 Branches Video Splitter 323007152
- Riser with Expansion Interface 323019153
- Internal Unit Alarm Sensors Connections154
- Connection Way for NC and no Contacts154
