4-70 2002 Buell S3T: Fuel System
HOME

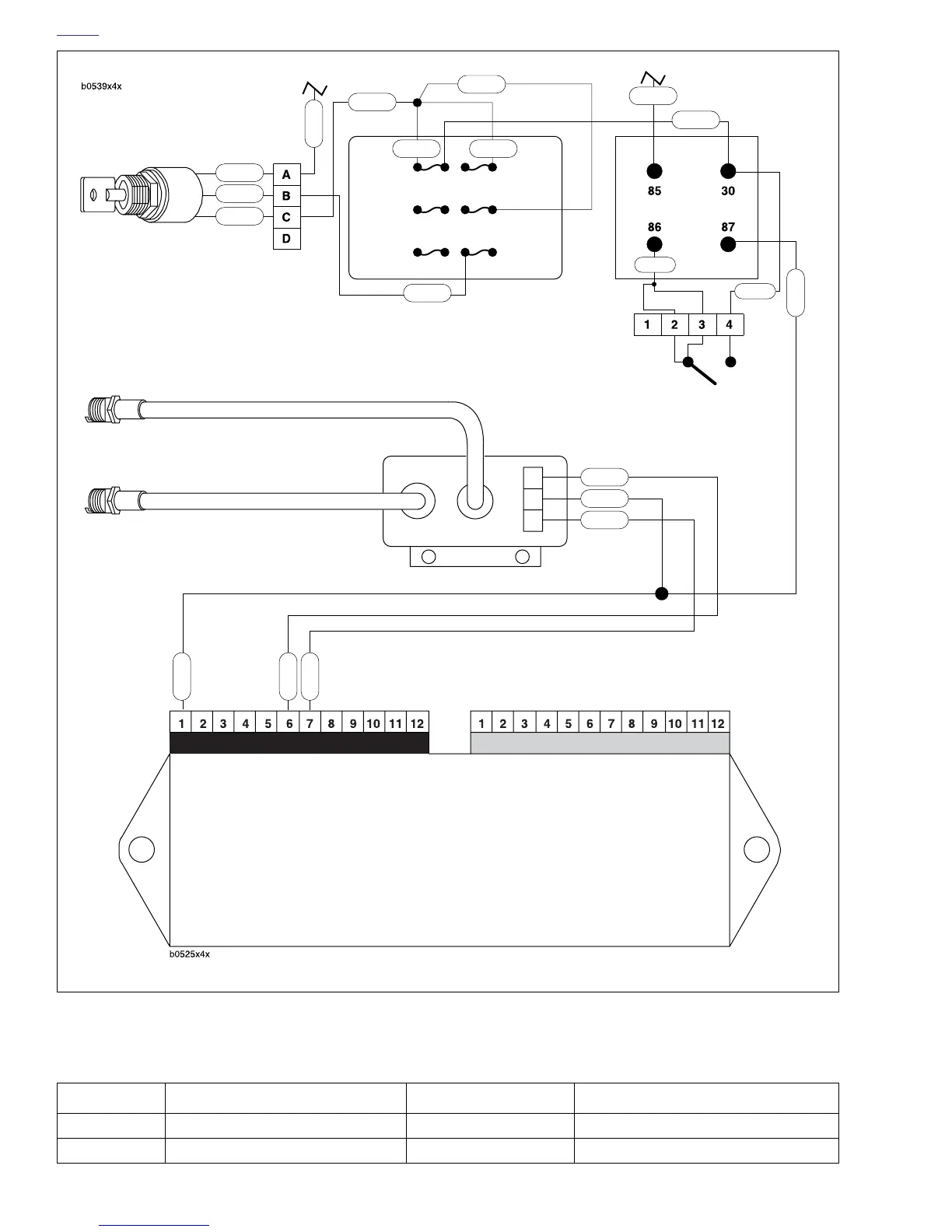

Figure 4-55. Ignition Coil Circuit
b0544x4x
ABC
FR
Ignition Coil [83]
Electronic Control Module
(ECM)
Connector [10] Connector [11]
GY
GY
BE/O
BE/O
R
R
R/GY
R/BK
R/GY
R/BK
R/BK
R/BK R/BK
GY/O
Ignition 20A
Memory 15A
Spare 15A
Lights 15A
Instruments 15A
Accessory 15A
Ignition
Switch
[33]
Engine Stop
Switch [22]
TN/W
Ignition Relay
W/BK
GY/O
To Main Circuit
Breaker
To Starter
Interlock Circuit
GY
Front Spark Plug
Rear Spark Plug
Y/BE
Y/BE
Table 4-22. Wire Harness Connectors in Figure 4-55.
NO. DESCRIPTION TYPE LOCATION
[10] ECM (black) 12-place Deutsch under tail section
[83] Ignition Coil Connector 3-place Packard under fuel cell, left side
