Burstner I 2012 - Page 144

144 I-Modell - 11/12 - Ausgabe 09/11 - 2096165 - BUE-0056-05EN
Electrical system
8

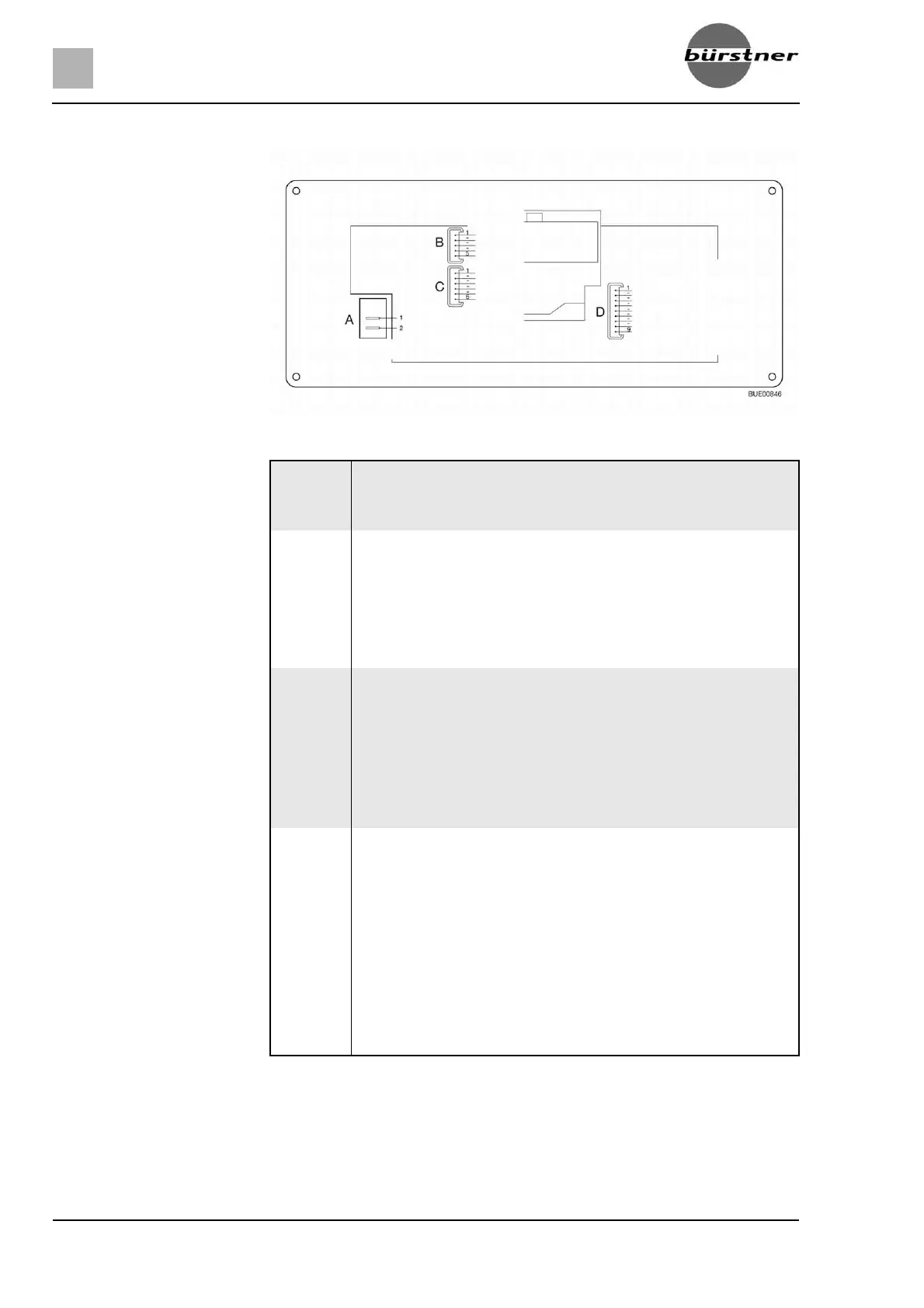

Fig. 152 Block diagram for panel (IT 96-2)
A
1
2
2 x AMP flat pins 4.8 x 0.8
+ 12 V
Pump
B
1
2
3
4
5
Lumberg MSFQ 5-pin
Full
3/4
1/2
1/4
Base waste water tank
C
1
2
3
4
5
6
Lumberg MSFQ 6-pin
Full
3/4
1/2
1/4
Base water tank
n. c.
D
1
2
3
4
5
6
7
8
9
Lumberg MSFQ 9-pin
12 V indicator
12 V main switch off
12 V main switch on
+ Starter battery 12 V
+ Living area battery sensor
Negative living area battery sensor
230 V indicator
n. c.
n. c.
