Burstner I 2012 - Page 146

146 I-Modell - 11/12 - Ausgabe 09/11 - 2096165 - BUE-0056-05EN
Electrical system
8

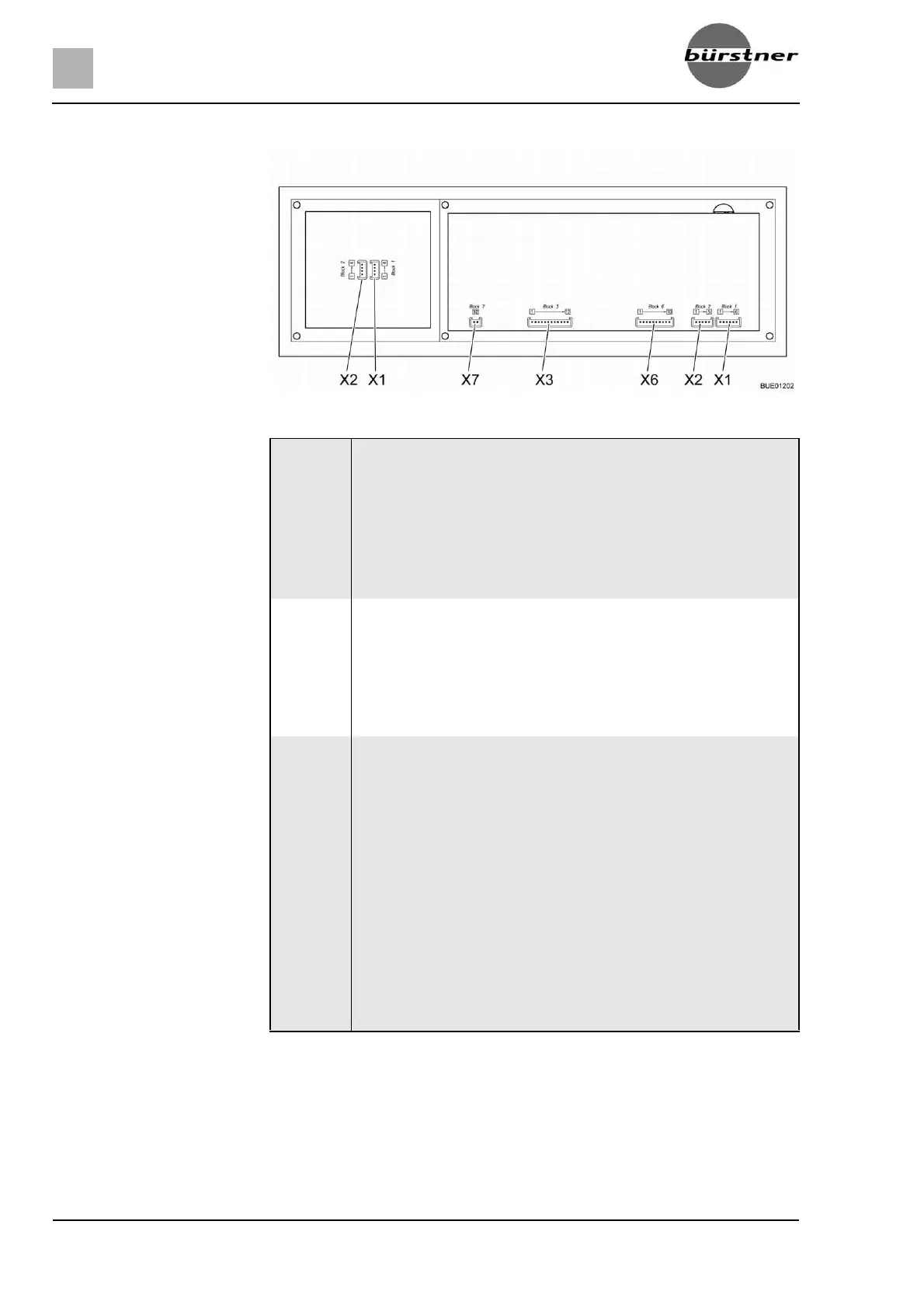

Fig. 154 Block diagram, panel (LT 510)
X1
1
2
3
4
5
6
Lumberg MSFQ 6-pin
Full
3/4
1/2
1/4
Base water tank
n. c.
X2
1
2
3
4
5
Lumberg MSFQ 5-pin
Full
3/4
1/2
1/4
Base waste water tank
X3
1
2
3
4
5
6
7
8
9
10
11
12
Lumberg MSFQ 12-pin
Main switch relay 1 off
Main switch relay 1 on
Main switch relay 2 off
Main switch relay 2 on
Mains signal
Shunt for appliances
Shunt battery
Negative living area battery sensor
n. c.
+ Living area battery sensor
+ Starter battery 12 V
+ Lighting
