MicroDock II
MicroDock II Base Station and Docking Modules
Parts of the MicroDock II Base Station and Docking
Module

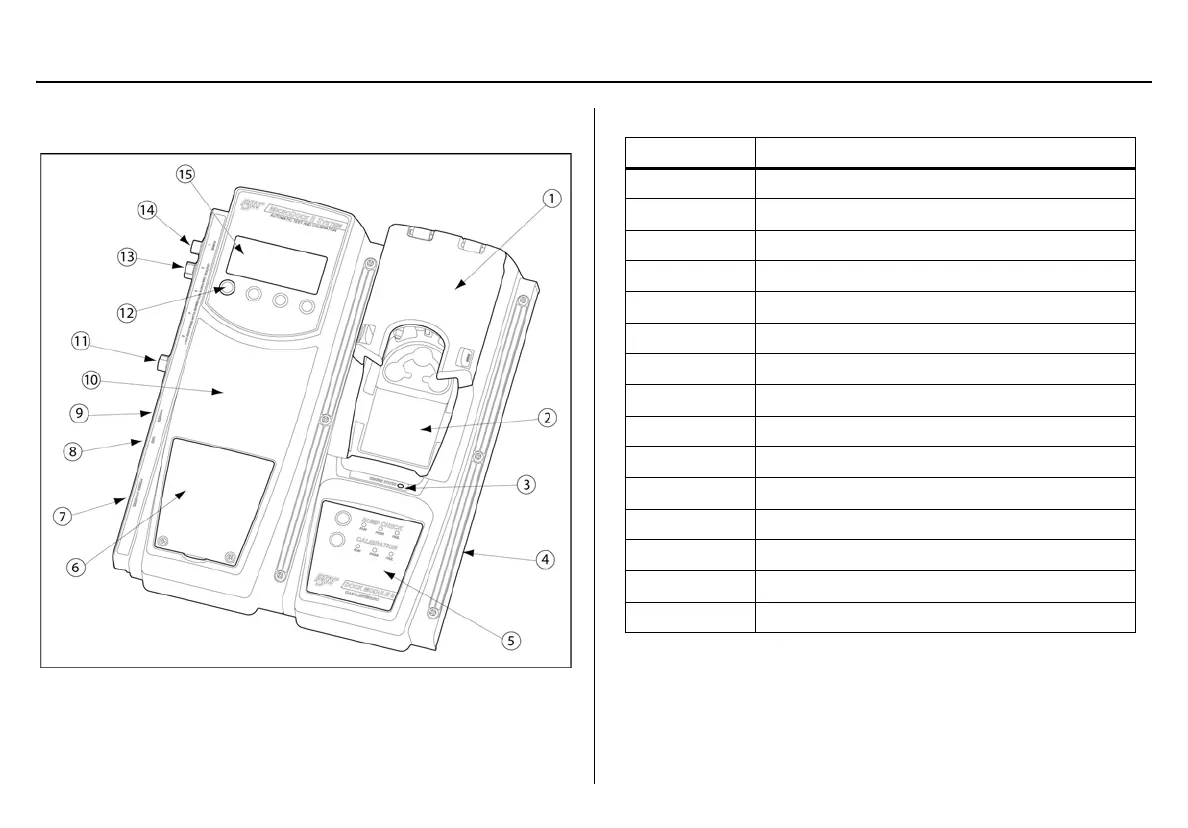

Figure 2. The MicroDock II Base Station and Docking Module
Table 2. The MicroDock II Base Station and Docking Module
a Caution
Do not remove the battery cover while the base station is
activated.
Item Description
1
Docking module lid
2
Detector bay
3
Charger status LED (optional)
4
Docking module
5
Docking module pushbuttons and status LEDs
6
Battery cover
7
Charger port (optional)
8
USB port
9
Power port
10
Base station
11
Exhaust outlet
12
Station pushbuttons
13
Calibration gas inlet (inlet 2)
14
Zero air/purge inlet (inlet 1)
15
Liquid crystal display (LCD)
