MicroDock II
User Manual
14
Inserting the GasAlertMicro
a Caution
Infrared or intense ambient light (sun or halogen) may interfere
with the base station/detector communication.

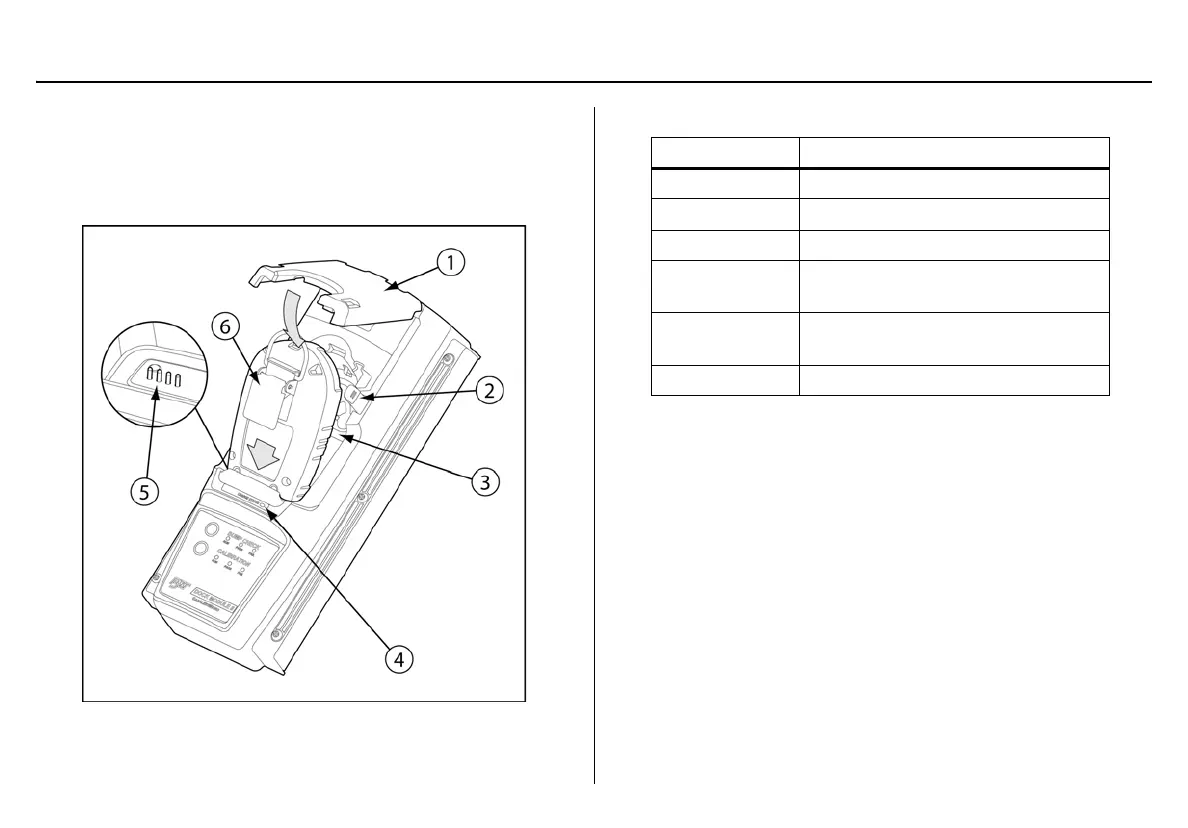

Figure 6. Inserting the GasAlertMicro
Table 8. Inserting the GasAlertMicro
Note
If the GasAlertMicro is fitted with a calibration cap, it must be
removed prior to inserting the detector into the docking mod-
ule.
7. Activate the detector and wait until it is in normal operation.
8. Ensure the alligator clip is closed and the ring is resting flat on
the detector to prevent disruptions with data transmission.
9. Press the two release tabs on the docking module and raise the
lid.
10. Insert the bottom of the detector into the detector bay (serial
number label up) and then lower the top into place.
Item Description
1
Docking module lid
2
Release tabs
3
Detector bay
4
Charge status indicator
(charging model only)
5
Connector pins
(charging model only)
6
Alligator clip
