5. Close the lid and press until the release tabs click.
When the detector has been inserted correctly, the RUN LED(s)
on the docking module lights yellow and the base station LCD
displays the
• the docking module number,
• Unit Inserted,
• detector type, and
• detector serial number.
The detector’s LCD displays the following screen.
6. To bypass the base station identification screen, press any
C
button on the base station.
Inserting the GasAlertQuattro Battery Pack
To insert the GasAlertQuattro battery pack into the detector bay, refer to
Figure 13. and the following procedure.

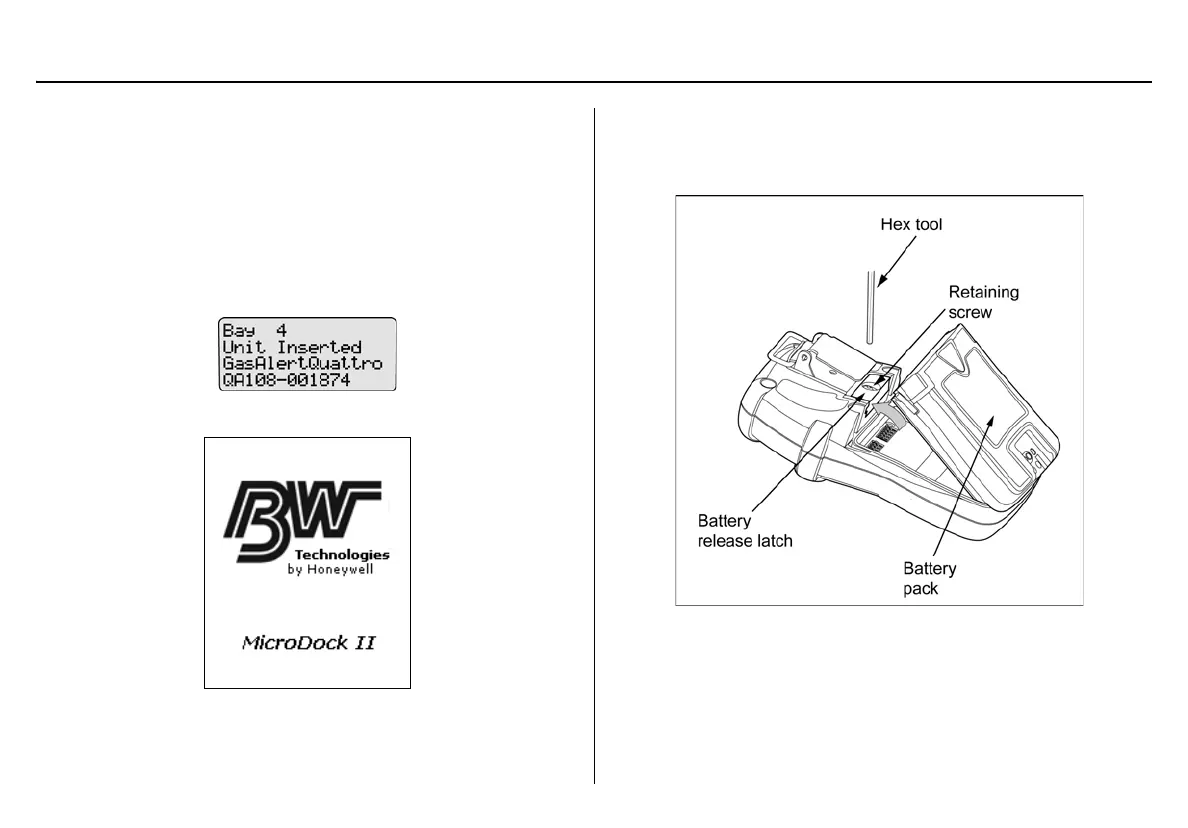

Figure 13. Removing the GasAlertQuattro Battery Pack
1. Deactivate the detector.
2. Push the battery release latch toward the top of the detector to
release the battery pack.
3. From the top of the battery pack, lift the battery pack upward to
remove.
