MicroDock II

Changing Dip Switch Settings (GasAlertClip Extreme only)

Note

When reattaching the docking module, ensure the barbed tubing is inserted correctly. Ensure to correctly label the gas type on the docking

module.

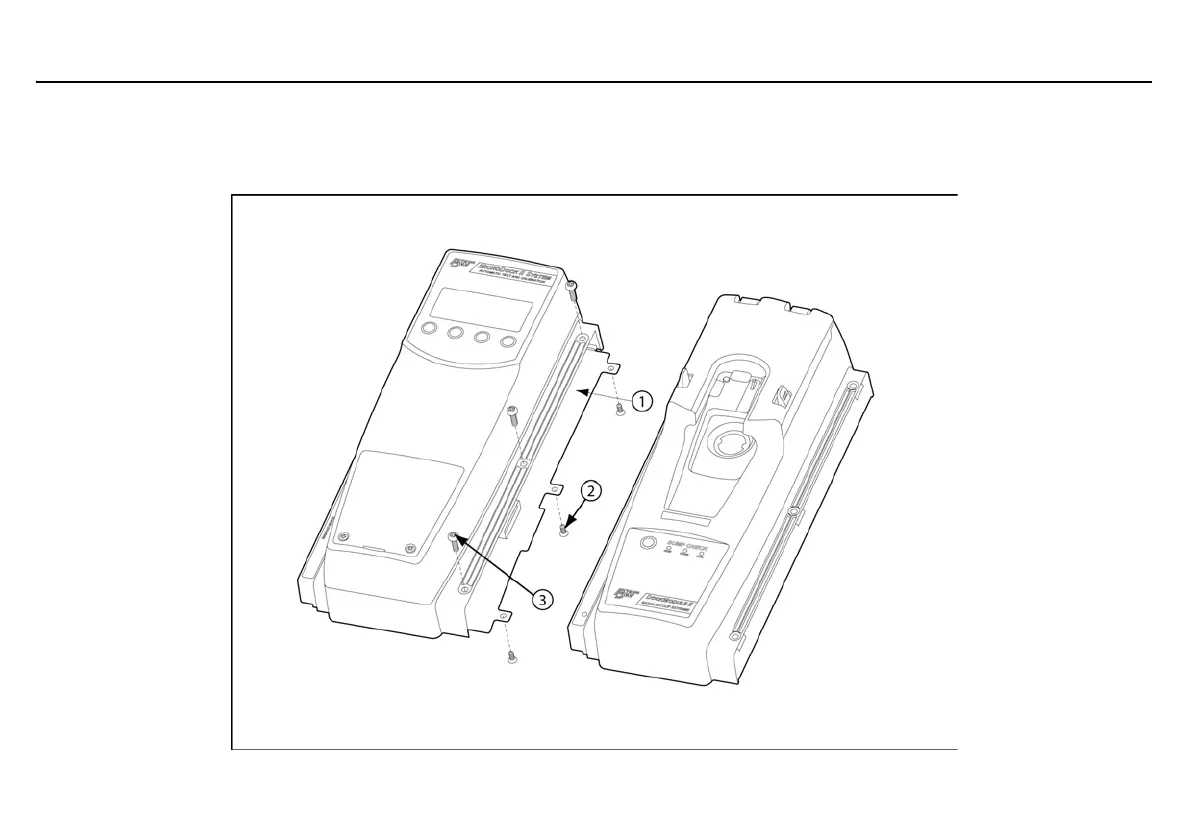

Figure 19. Detaching the GasAlertClip Extreme Module
