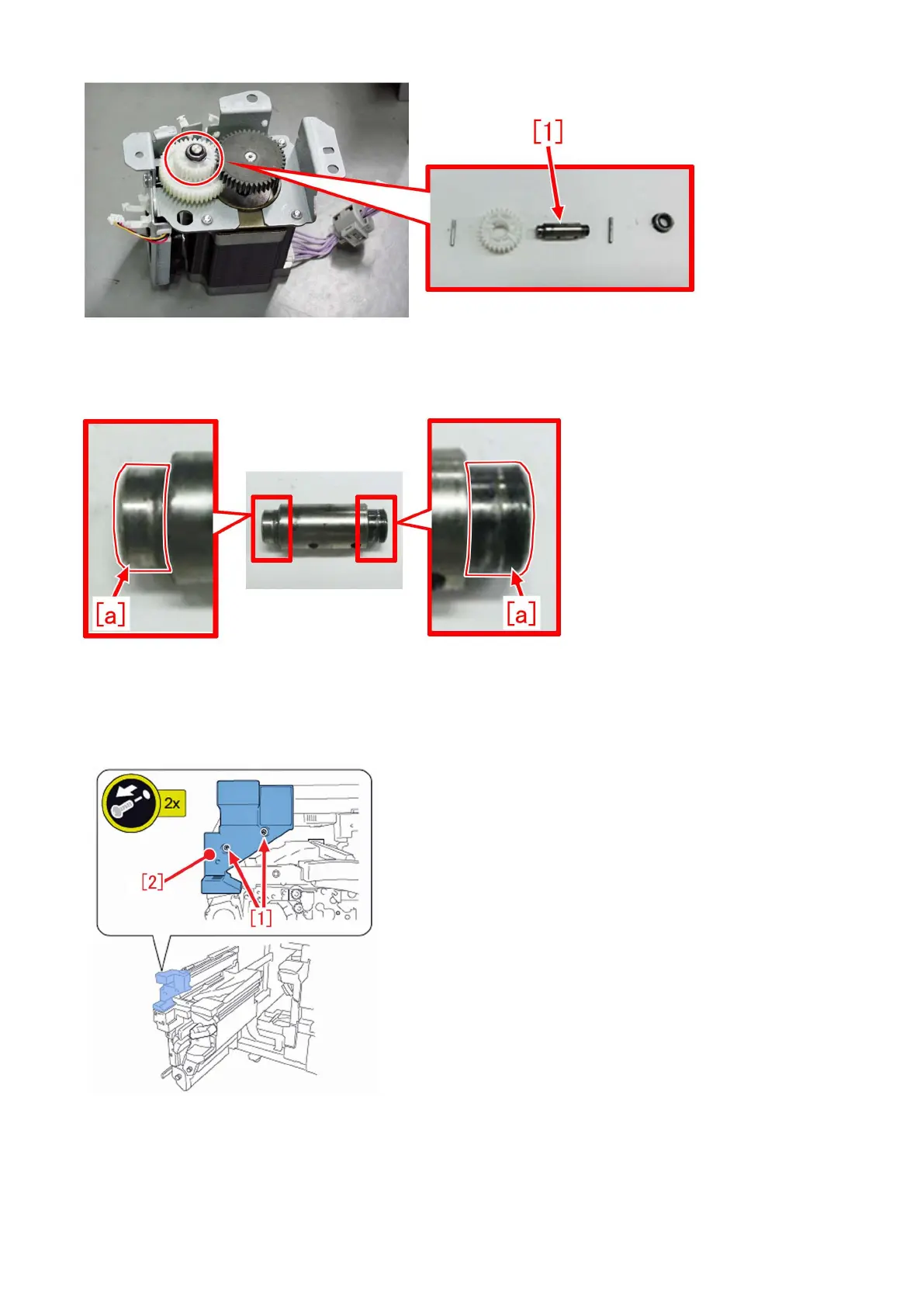

b-7) Apply the same amount of super lube grease as a grain of rice (approx. 20mg) to each entire circumference of both the ends
[a] of the new-type decurler drive shaft 1, and then assemble the parts disassembled in the step b-6) into the motor unit.
b-8) Assemble the decurler drive shaft by reversing the procedure from the step b-5).
c) Step to replace the swing shaft 1 (FC5-9920-010)
c- 1) Remove the 2 screws [1] and remove the delivery reverse cover 1 [2].
c-2) Remove the 1 screw [1] and remove the delivery upper guide cover [2].
