CHAPTER 6 FIXING SYSTEM
6-11

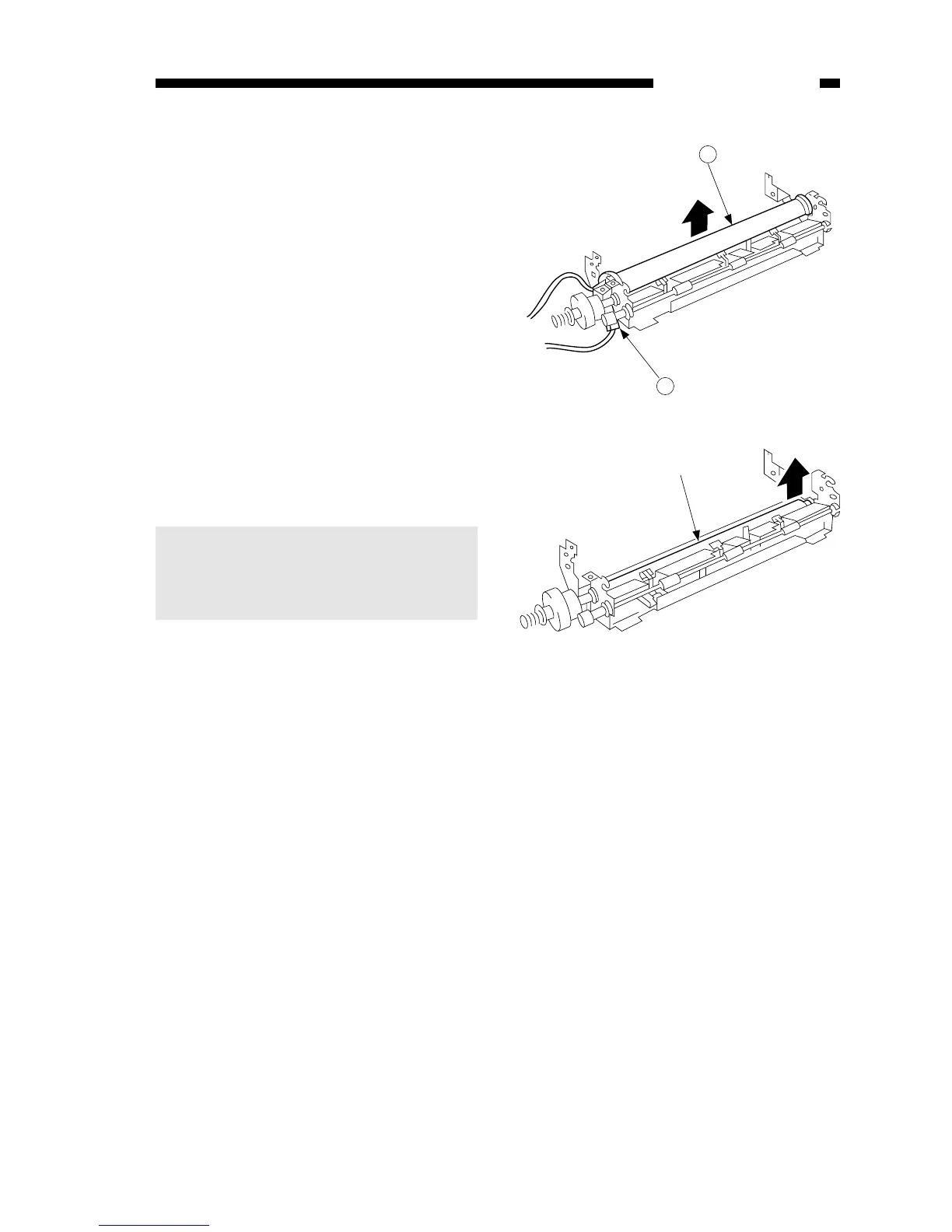

6) Disconnect the connector o, and
remove the fixing upper unit !0.
Figure 6-210A
Figure 6-211A
4. Detaching the Pressure Roller
1) Detach the fixing upper unit.
Note:
Take care not to damage the pres-
sure roller by the separation claw or
inlet guide when detaching it.
2) Detach the pressure roller q as if to
lift it.
To Next Page
