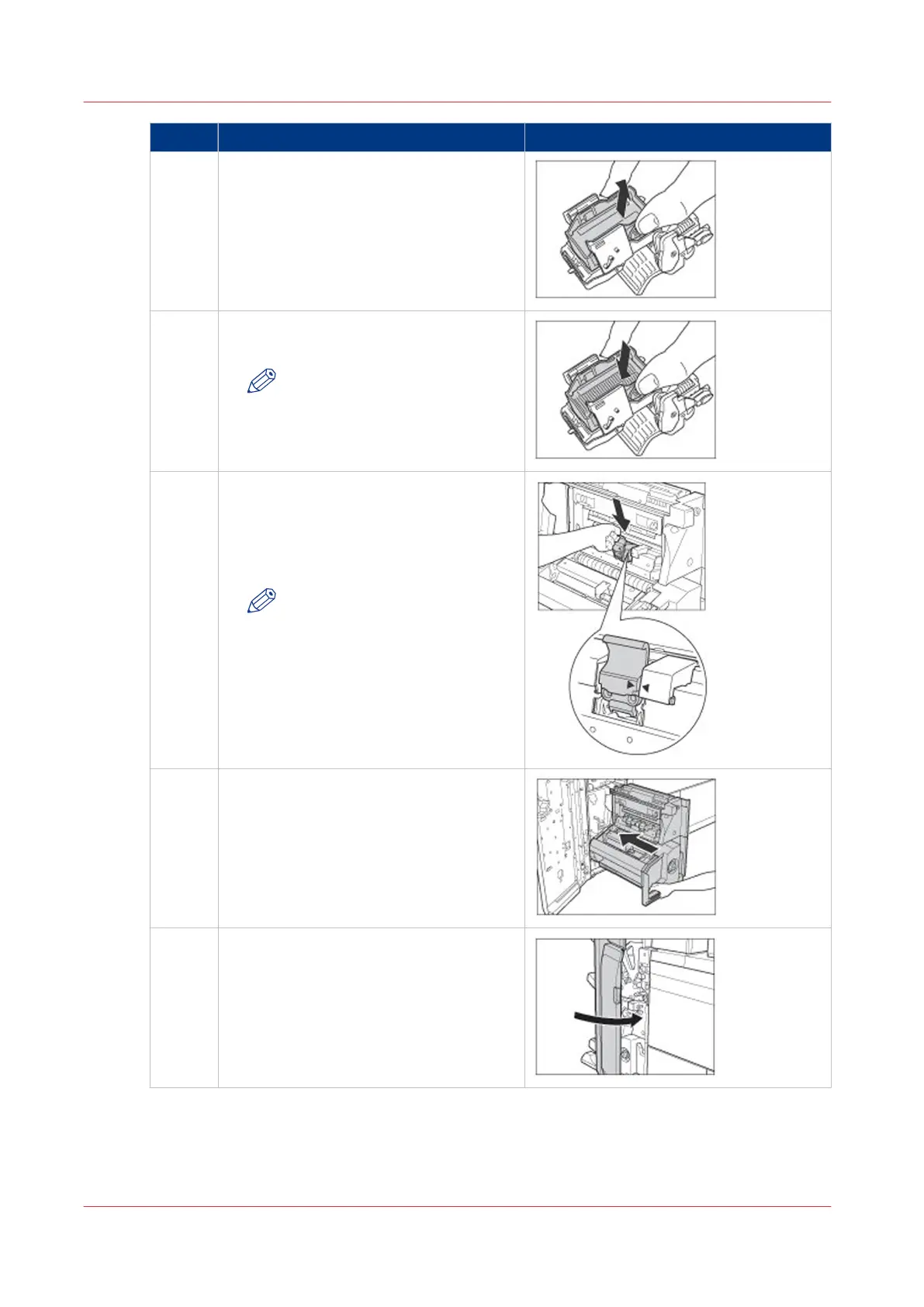

Step Action Illustration
5 Squeeze at the indicated positions to re-
lease the empty staple cartridge.
Lift the empty staple cartridge and pull
the staple cartridge out.
6 Insert the new staple cartridge (Staple
P1).
NOTE
When you replace the staple
cartridges, replace both the
front and back staple cartridges.
7 Return the staple case to its original posi-
tion in the saddle stitch unit.
Make sure that the arrow on the staple
case aligns with the arrow on the saddle
stitch unit.
NOTE
Follow the steps 3 to 7 to re-
place the other staple cartridge
in the saddle stitch unit.
8 Gently push the saddle stitch unit back in-
to the printer.
9
Caution: When you close the front door of
the stacker/stapler, be careful not to get
your fingers caught, because this may re-
sult in personal injury.
Close the front door of the stacker/stapler.
Replace the Staple Cartridge of the Saddle Stitch Unit
