CDE360 Vector Control AC Drive Chapter 6 Parameters Description
C3.07
Range: 0.00~10.00
Default: 10.00
AO curve 1
maximum output
Unit: V
AO curve 1 maximal input signal.
C3.08
Range: C3.06~100.0
Default: 100.0
Corresponding
setting of AO
curve 1
maximum output
Unit: %
The relationship between AO curve 1 maximal input signal and the
percentage of set value.
100.0%
0V(0mA)
对应设定
（频率，转矩）
对应设定
（频率，转矩）
100.0%
0V(0mA)
10V(20mA)
10V(20mA)
AI
AI
-100.0%

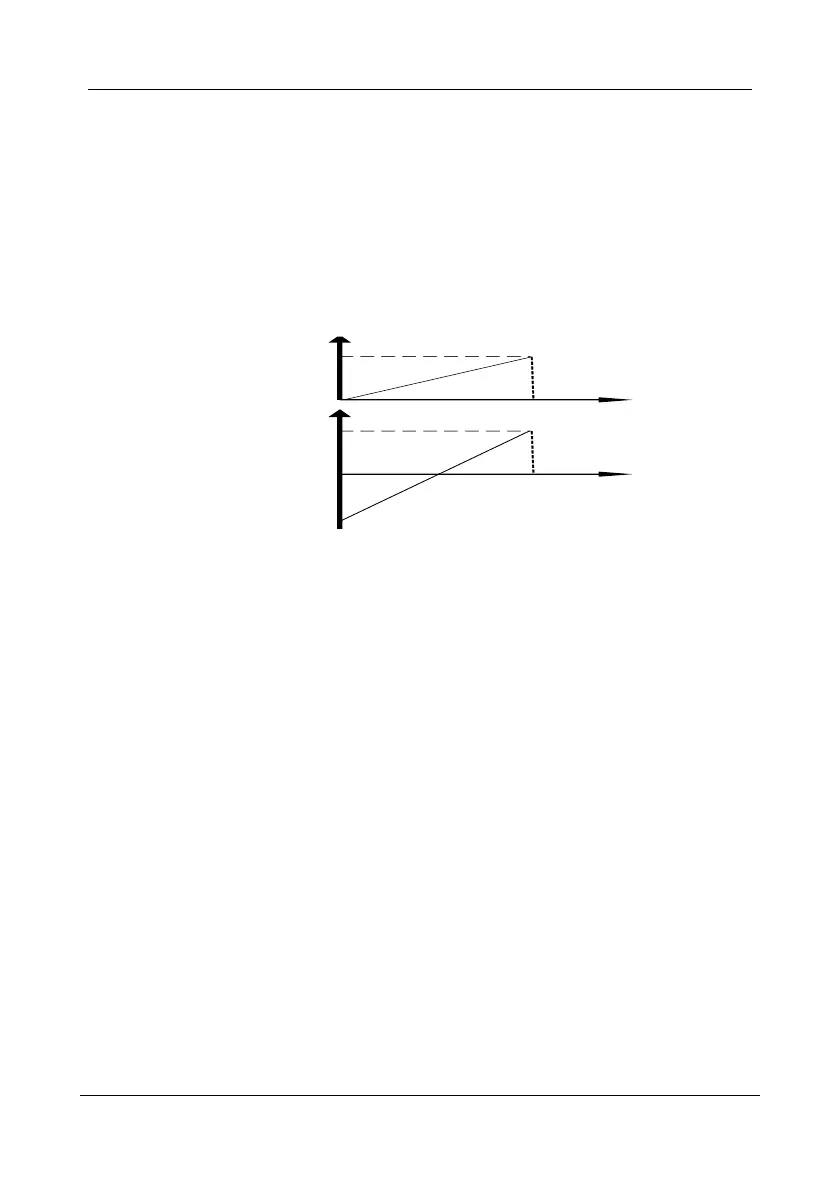

Figure 6- 18 AO curve 1
Example:
 Analog output AO1 output function selection C3.02 = 1(Running frequency)
 Max frequency b0.00 = 50.00 Hz
 AO curve selection C3.04 = 21 (AO1 curve selection 1)
 AO curve 1 minimum output C3.05 = 1.00V
 AO curve 1 minimum output corresponding setting C3.06 = 5%
 AO curve 1 maximal output C3.07 = 9.00V
 AO curve 1 maximal output corresponding setting C3.08 = 80%
 If output frequency is 20Hz,so corresponding voltage is:
4.73V = {（20Hz - 50Hz*5%）/（50Hz*80% - 50Hz*5%）}*（9.00V - 1.00V）+1.00V
C3.09
Range: 0.00~10.00
Default: 0.00
AO curve 2
minimum output
Unit: V
Define AO curve 2 minimum output value. When chose the 0~20mA
current input, 0mA corresponding to the 0V, and 20mA corresponding to
10V.
C3.10
Range: 0.0~C3.12
Default: 0.0
Corresponding
setting of AO
curve 2 minimum
Unit: %
The relationship between AO curve 1 minimum input signal and the
percentage of set value.
