CDE360 Vector Control AC Drive Introduction
Introduction
Notes: All the examples below are base on factory setting.
Example 1: Start/stop the AC drive and set frequency by Keypad.
Operating steps:
1.1) Configure the following parameters according to the motor nameplate and actual requirements.
Function
Code
Name
Unit
Function
Code
Name
Unit
b0.04
Acceleration time 1
Sec
b0.08
Rated motor current
A
b0.05
Deceleration time 1
Sec
b0.09
Rated motor frequency
Hz
b0.06
Rated motor power
KW
b0.10
Rated motor speed
RPM
b0.07
Rated motor voltage
V
b2.01
Digital setting frequency
Hz
1.2) Start/stop the AC drive by pressing the RUN/STOP key on the keypad.
Example 2: Start/stop the AC drive by digital input (X terminals) and set frequency through
analog input signals.
Operating steps:

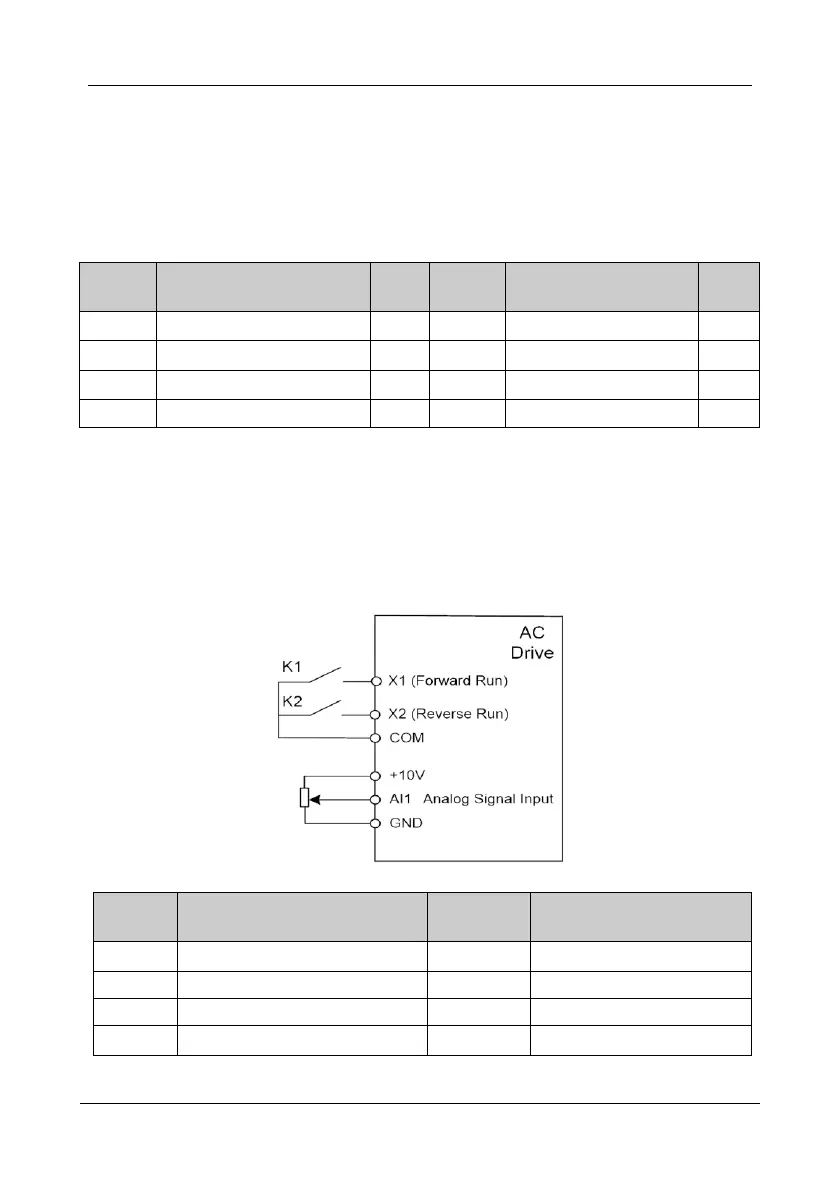

2.1) Terminal X1 controls forward running, X2 controls reverse running, and AI1 signal set the
running frequency.Please configure the wiring refer the following diagram.
2.2) Configure the following parameters base on the wiring mode.
Function
Code
Name
Value
Meaning
b0.11
Command sources selection
1
Commands from X terminals.
b2.00
Main frequency source A selection
1
Frequency from AI1.
C0.01
The function of terminal X1
3 (default)
Forward run
C0.02
The function of terminal X2
4
Reverse run
