Model 201 Installation & Technical
8400-M117-O1 Rev D
7. KEYPAD
7.1 Standard Key Functions
The Model 201 is equipped with a 6-key keypad. The keypad is used to
enter commands and data into the weight transmitter. This section
describes each key along with its normal function. It is helpful to refer to
the actual weight transmitter while reading this section.
DO NOT operate the keypad with pointed objects (pencils,
pens, etc.). Damage to keypad resulting from this practice is
NOT covered under warranty.

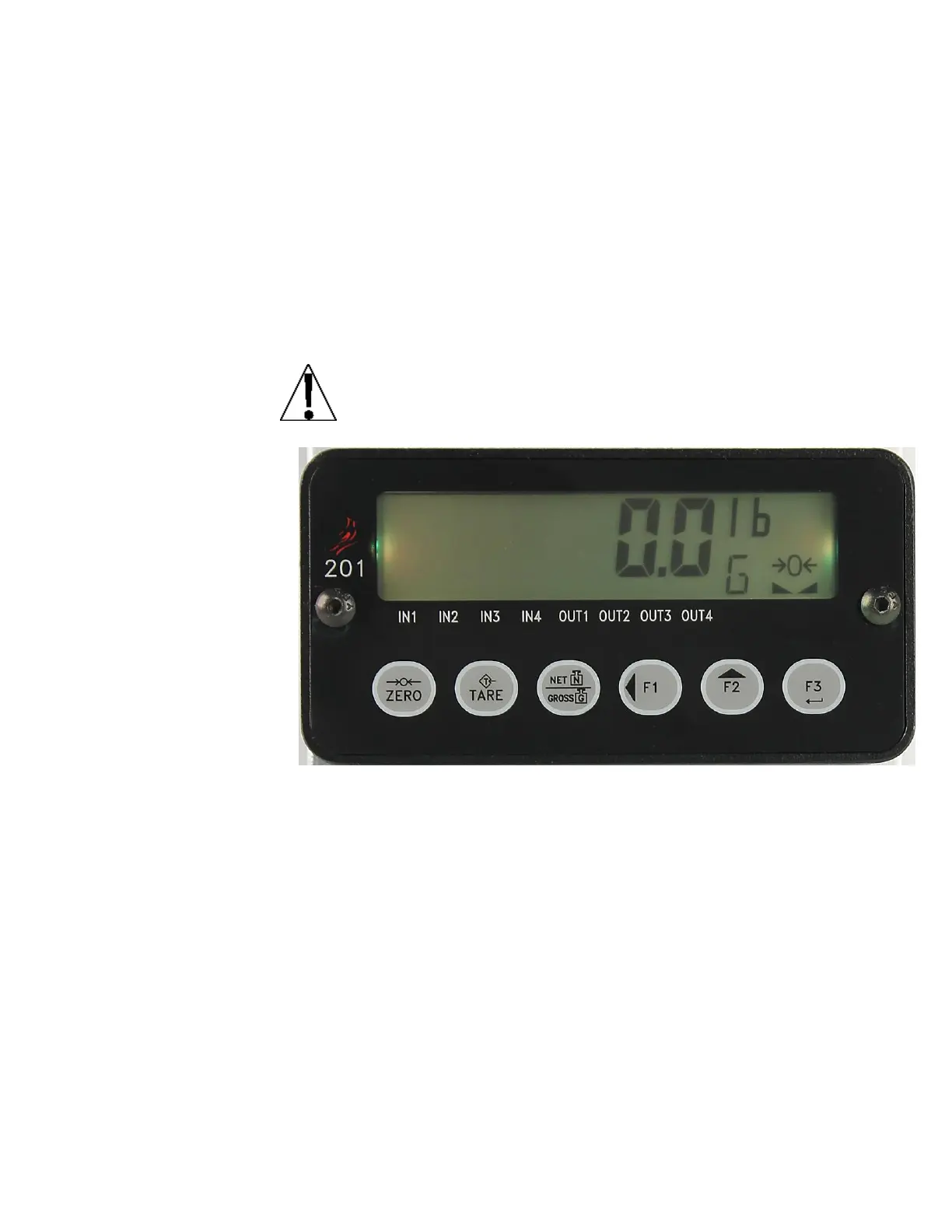

Figure No. 6
