3.6 Sense and Dead Load Jumpers
J2 (+SEN) and J3 (-SEN) – Sense Jumpers
If the sense leads are NOT used, you must install the +SEN and -
SEN jumpers at J2 and J3. These jumpers connect the sense
leads to the excitation leads. If sense leads ARE used (as in motor
truck scales or installations with over 30 feet between the weight
transmitter and load cells), these jumpers should be open (on one
pin only) or removed. See Figure No. 3 below.
J1 (DEAD LOAD) – Dead Load Boost Jumper
For scales with very low dead loads (less than 10% of the
combined load cell capacity), connect the DEAD LOAD (dead load
boost) jumper J1. See Figure No. 3 below.

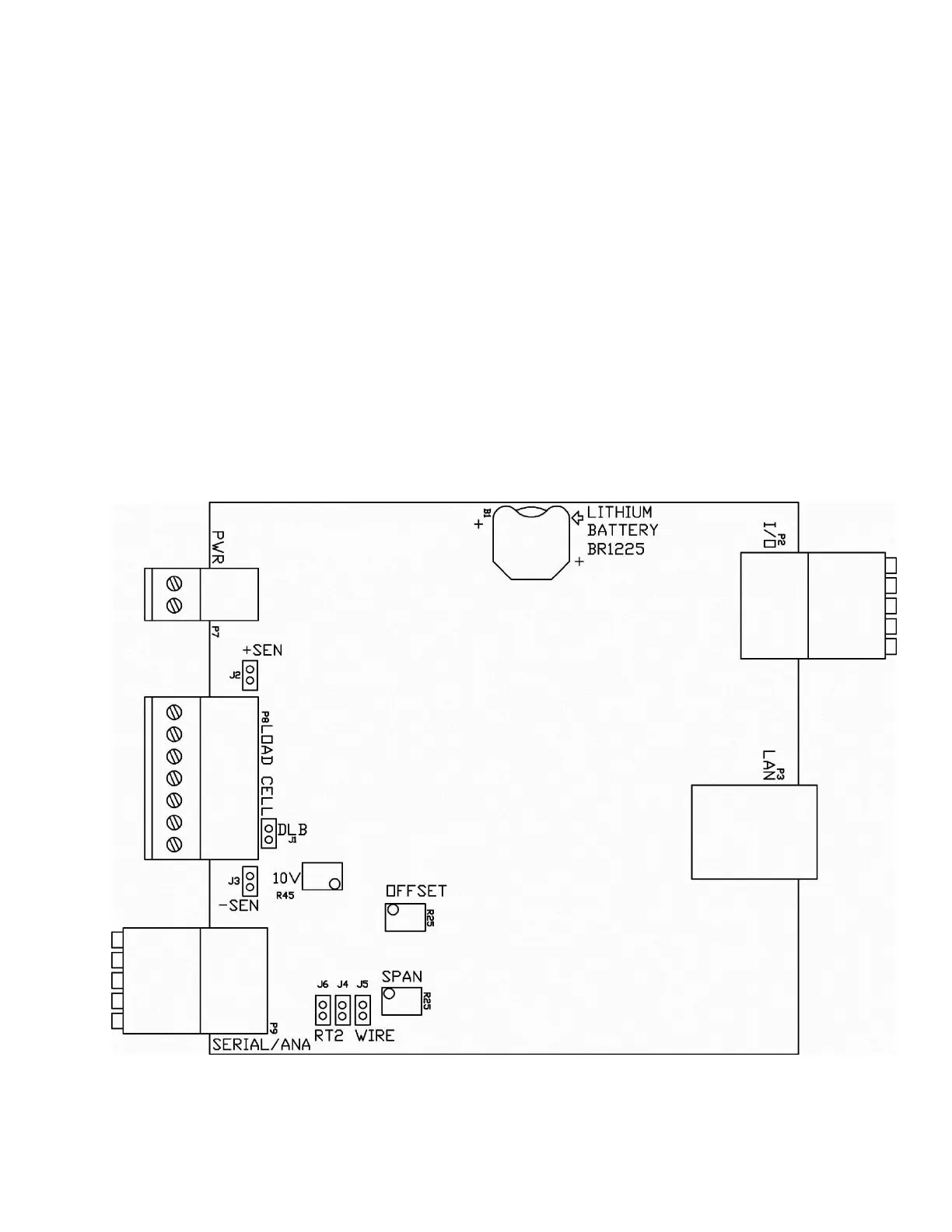

Figure No. 3
