Model 201 Installation & Technical
8400-M117-O1 Rev D
Page 9

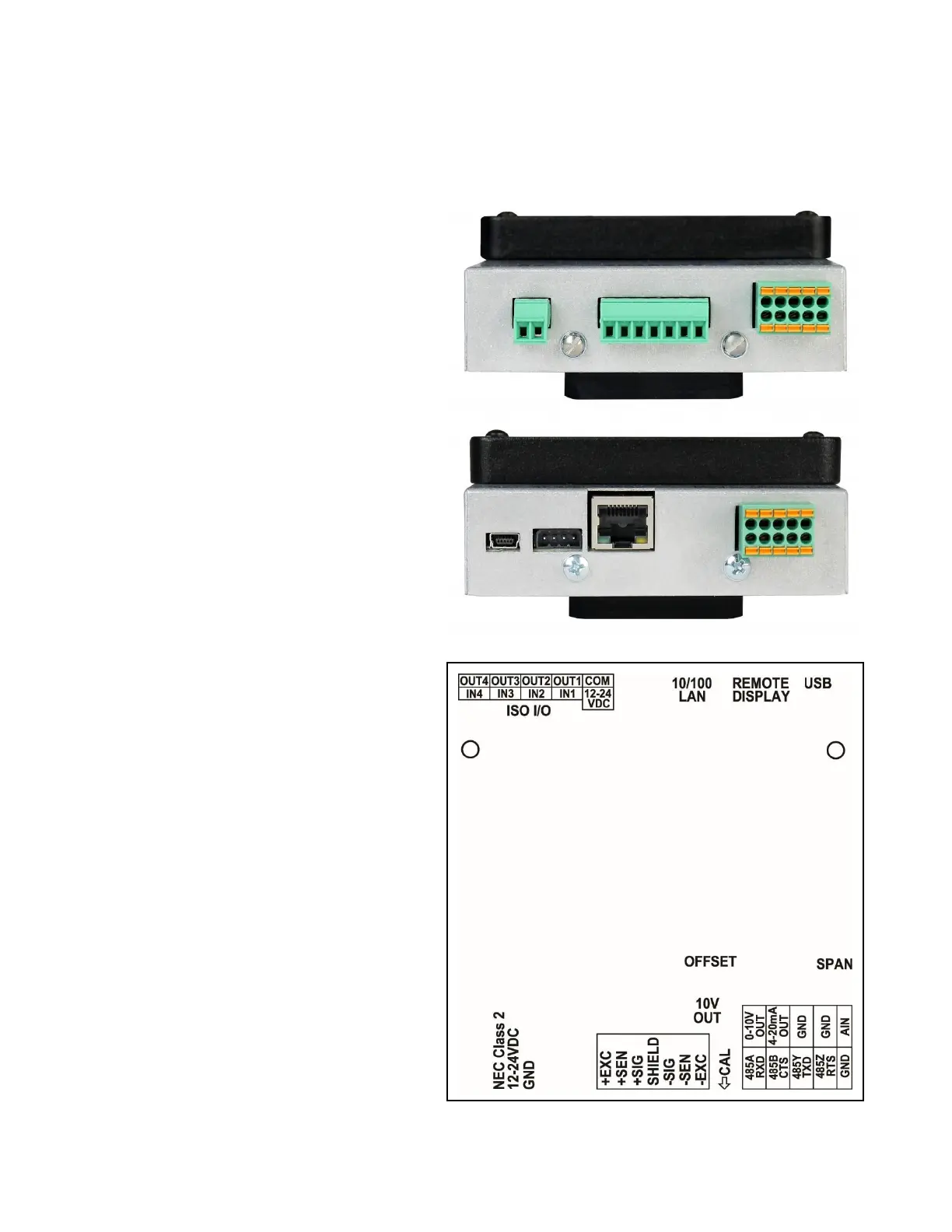

3.3 Connections
Figure No. 2A
Figure No. 2B
Enclosure
Silkscreen
P7 - Power
P8 - Load Cell
P9 - Serial &
Analog I/O
P2
ISO I/O
USB
LAN
REMOTE
DISPLAY
