Model 201 Installation & Technical
8400-M117-O1 Rev D
4.2 Calibration Data Entry
DO NOT operate the keypad with pointed objects
(pencils, pens, etc.). Damage to keypad resulting from
this practice is NOT covered under warranty.

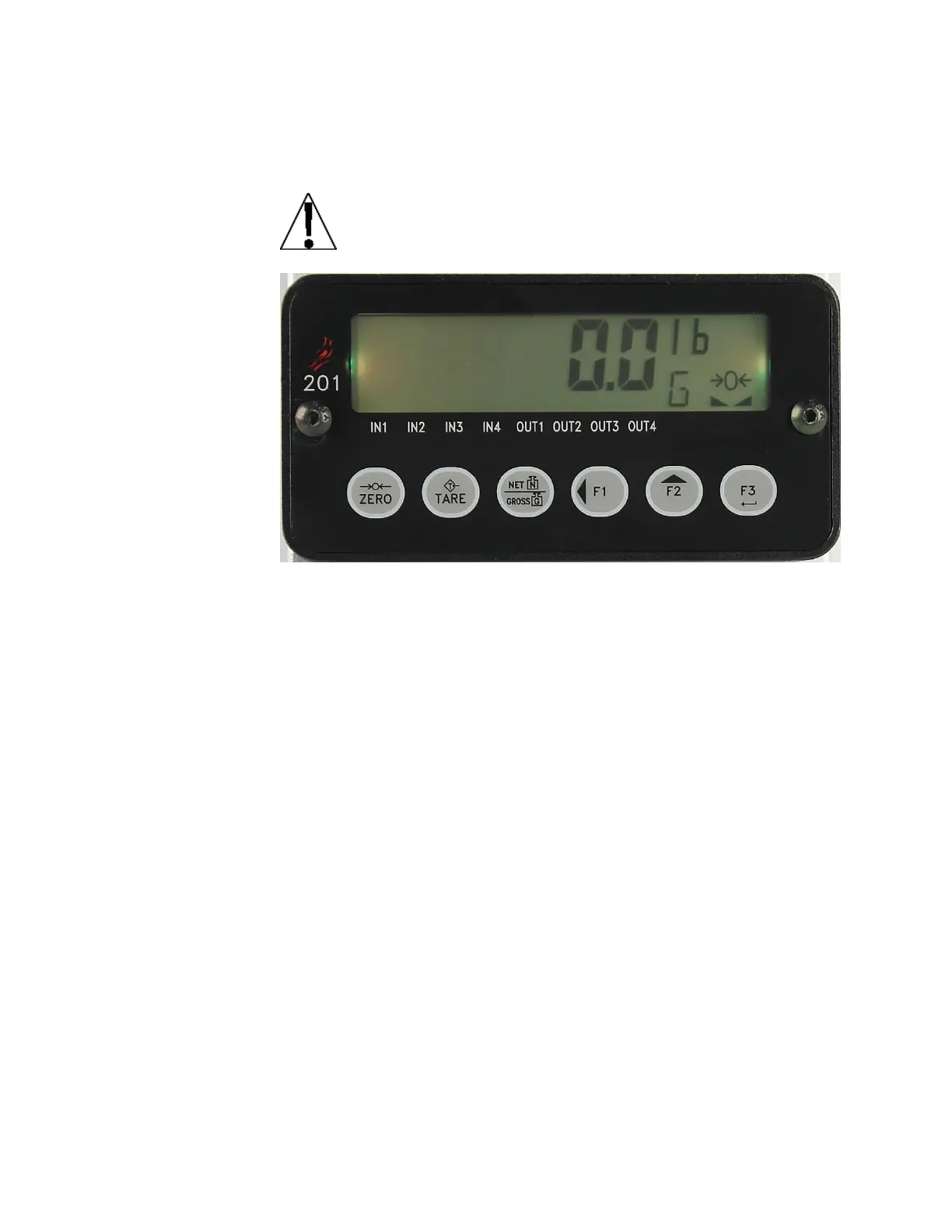

Figure No. 5
During the weight transmitter setup and calibration process it will be
necessary to enter operational parameters via the 201 keypad.
Pressing the F3/ key will cause the data entered or displayed
to be retained and the 201 to advance to the next prompt.
The functions of numeric keys are replaced by using the
F1/ and the F2/ keys.
The cursor location is identified by the blinking character
and can be advanced to the left to the next position by
pressing the F1/ key.
Pressing the F2/ key will change the blinking character to
the next value or setting. Continue to press this key to
"toggle" between the different available values or settings for
the setup parameter.
Pressing the F1/ key when a setup parameter (not a
parameter value or setting) is displayed, will "backup" to the
previous parameter prompt.
Pressing the F1/ key and the F2/ key simultaneously
when a setup parameter (not a parameter value or setting) is
displayed, will “exit” setup.
