Model 201 Installation & Technical
8400-M117-O1 Rev D

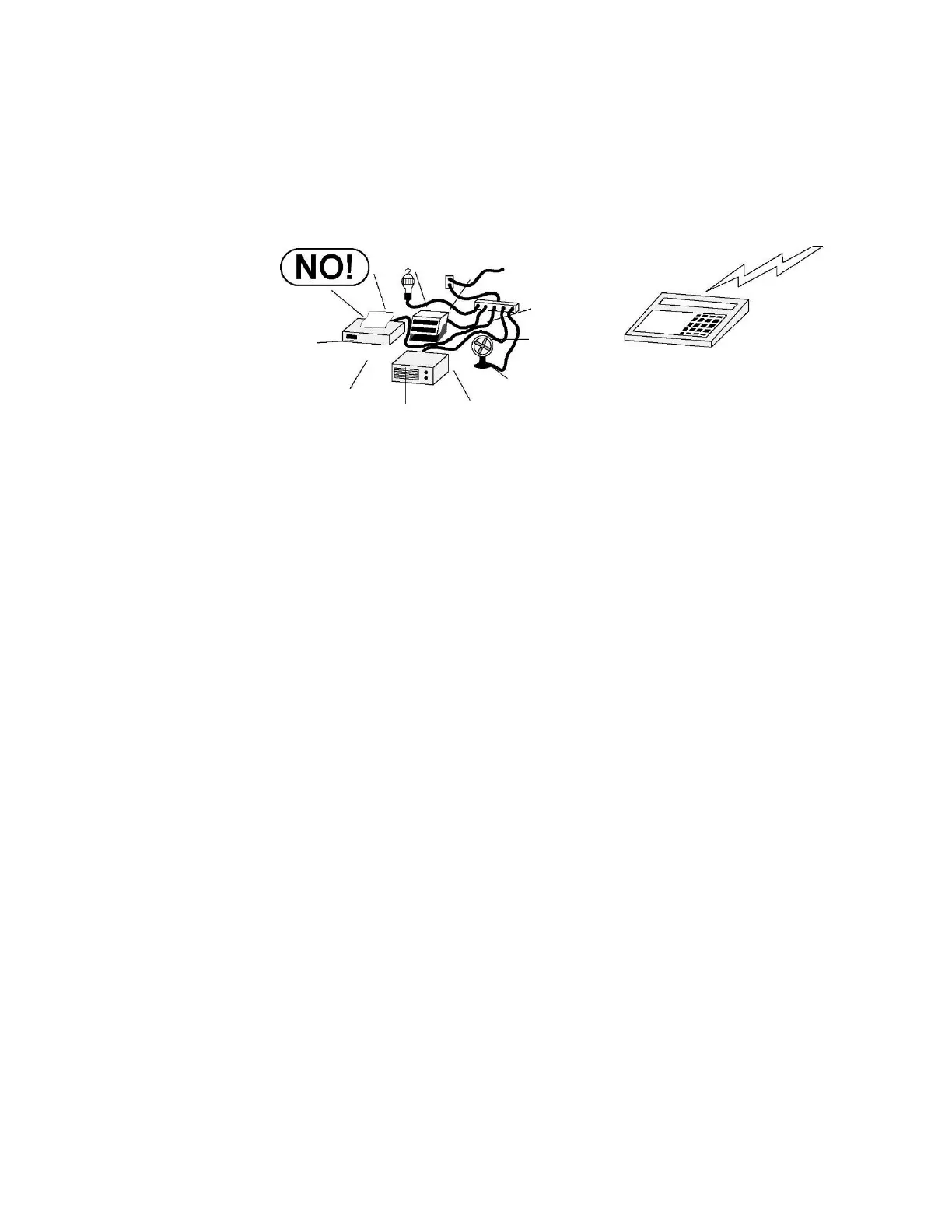

Insure that the weight transmitter has good, clean AC power and is
properly grounded. In areas subject to lightning strikes, additional
protection to minimize lightning damage, such as surge
suppressors, should be installed.
3.1.2 Electrical Power
The Model 201 Weight Transmitter has been designed to operate
from 12 to 24 VDC @ 6W. The weight transmitter is intended to be
used with Listed Information Technology Equipment.
The power supply to the weight transmitter should be on a
separate circuit from the distribution panel and dedicated to the
exclusive use of the weight transmitter.
The panel installer must provide electrical protection for the
weight transmitter.
The wiring should conform to national and local electrical codes
and ordinances and should be approved by the local inspector
to assure compliance.
The DIN rail that the weight transmitter enclosure is attached to
must be grounded to the sub-panel. If not, then a single wire
from the weight transmitter enclosure back to the earth ground
terminal block of the cabinet is required.
